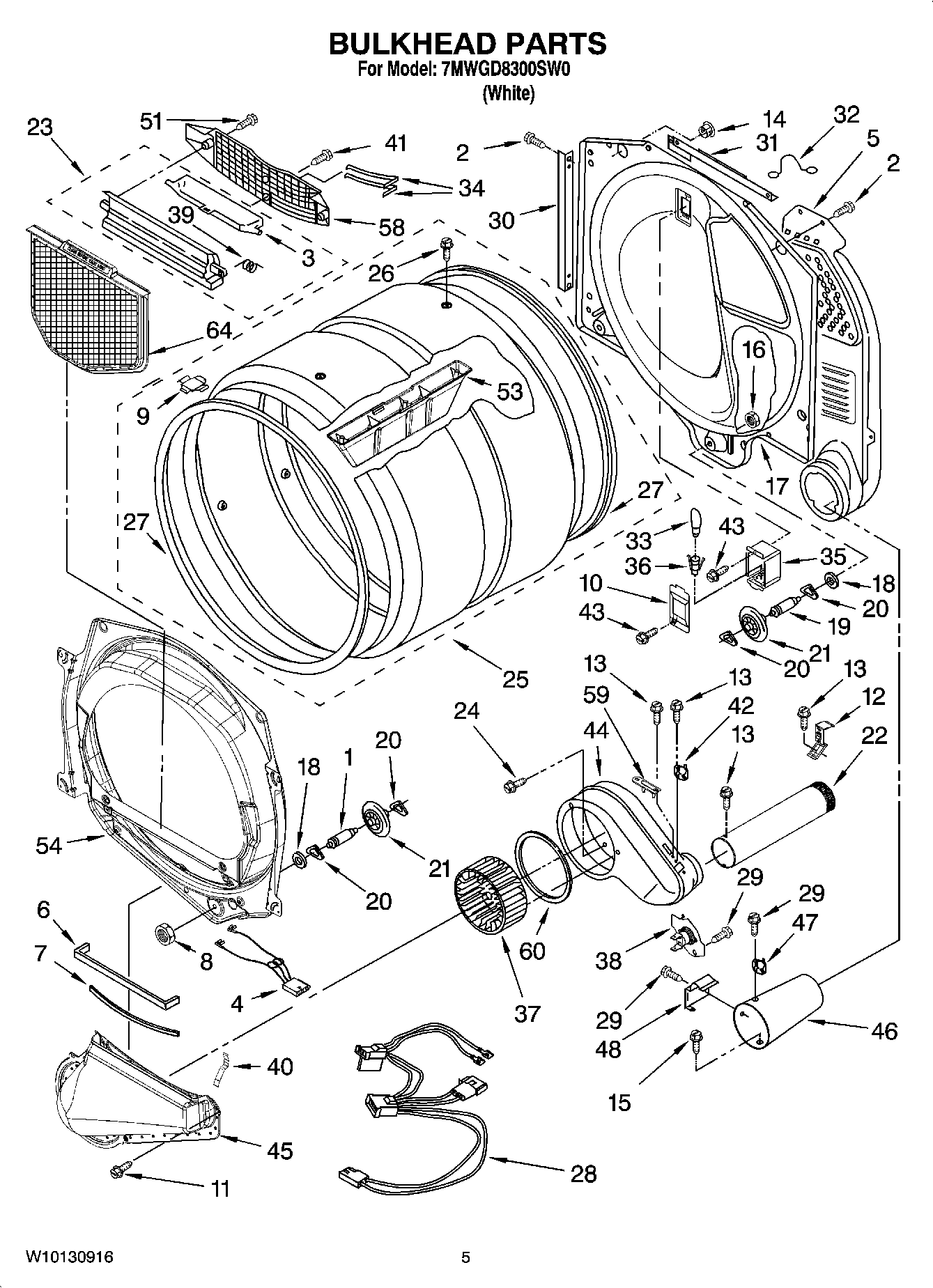

7MWGD8300SW0 03 – BULKHEAD PARTS
Written by
in
7MWGD8300SW0 03 – BULKHEAD PARTS
Products
Position
Product
1
SHAFT
2
WP488729 Whirlpool Refrigerator Door Screw
3
W11222846 Whirlpool Door
4
WP3406653 Whirlpool Wire Harness
5
W11168650 Whirlpool Air Duct
6
WP697813 Whirlpool Seal
8
WPW10080210 Whirlpool Nut
9
8066086 Whirlpool Plug
10
W11226088 Whirlpool Lens Assembly
11
W11693756 Whirlpool Screw Assembly
12
W11684573 Whirlpool Clip Assembly
13
WP90767 Whirlpool Screw
14
8529007 Whirlpool Plug
15
WP693995 Whirlpool Screw
16
WPW10080190 Whirlpool Nut
17
W11299301 Whirlpool Bulkhead Assembly
18
W11236646 Whirlpool Washer Assembly
19
SHAFT
20
WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21
WPW10314173 Whirlpool Dryer Drum Support Wheel
22
WP8563728 Whirlpool Exhaust Pipe
23
W11129408 Whirlpool Out Housing
24
WP489463 Whirlpool Refrigerator Screw
25
W10865330 Whirlpool Drum
26
WPW10109200 Whirlpool Screw
27
280114 Whirlpool Dryer Drum Seal
28
WP3401850 Whirlpool Wire Harness
30
Channel Bracket, Rear Bulkhead (2)
31
W10118337 Whirlpool Bracket Assembly
32
WP3401707 Whirlpool Wire Assembly
33
WP22002263 Whirlpool Dryer 10W Light Bulb
34
WP3387223 Whirlpool Electrode Assembly
35
8578825 Whirlpool Bracket
36
W11700522 Whirlpool Socket
37
WP697772 Whirlpool Dryer Blower Wheel
38
WP8573713 Whirlpool Thermal Fuse
39
WP3394986 Whirlpool Spring
40
WP8066208 Whirlpool Clip
42
WP8577274 Whirlpool Dryer Thermistor
44
W10888146 Whirlpool Housing
45
WPW10128606 Whirlpool Lint Duct
46
WP8573824 Whirlpool Funnel
47
WP8573028 Whirlpool Thermostat Assembly
48
WP338906 Whirlpool Dryer Gas Sensor
51
WP3387230 Whirlpool Screw
53
Baffle, Drum
54
8565061 Whirlpool Bulkhead Assembly
58
W11086603 Whirlpool Dryer Link Screen Air Grille
59
WP3392519 Whirlpool Dryer Thermal Fuse
60
WP697770 Whirlpool Blower Cover Plate Seal
64
W10120998 Whirlpool Dryer Lint Screen Filter
←
