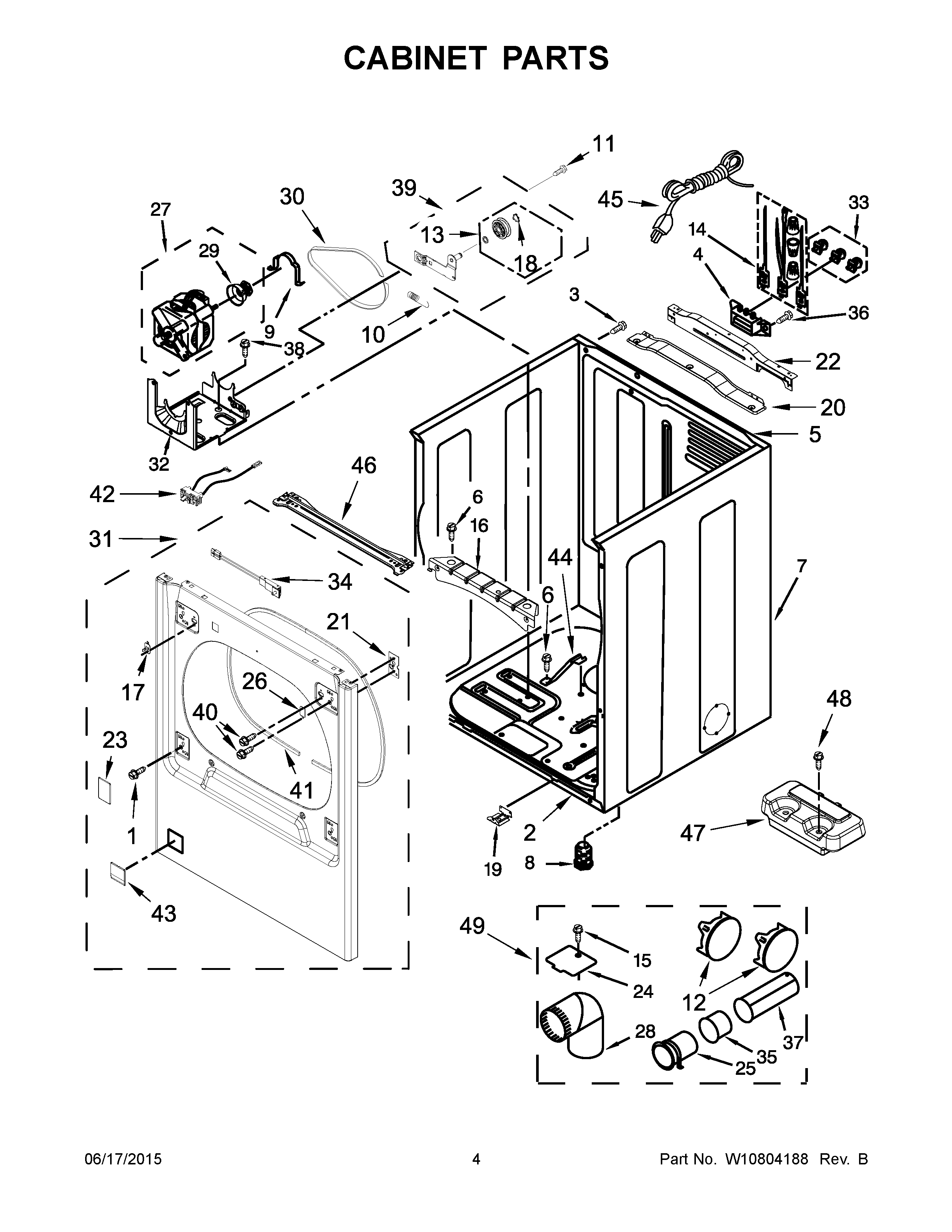

7MWGD8500EC0 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	WP488627 Whirlpool Refrigerator Screw
2	W10613683 Whirlpool Base
3	W10636208 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	W10824896 Whirlpool Rear Panel
6	WP693995 Whirlpool Screw
7A	W10681830 Whirlpool Panel
7	W10681831 Whirlpool Panel Assembly
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	279640 Whirlpool Dryer Idler Pulley Kit
14	279318 Whirlpool Terminal
15	W11568617 Whirlpool Screw
16	W11282908 Whirlpool Bracket
17	W10725916 Whirlpool Strike
18	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
19	SPACER BRACKET, LOWER
20	W10651902 Whirlpool Bracket
21	BRACKET, HINGE
22	W10622391 Whirlpool Bracket
23	W10596965 Whirlpool Plug
24	WPW10354249 Whirlpool Cover
25	WP8563747 Whirlpool Exhaust Pipe
26	WPW10111888 Whirlpool Plate Assembly
27	W11105178 Whirlpool Drive Motor
28	WPW10416072 Whirlpool Elbow
29	W11568637 Whirlpool Motor Pulley
30	W10849499 Whirlpool Belt
31	W10875891 Whirlpool Panel
32	W10578053 Whirlpool Base Assembly
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	W11036551 Whirlpool Door Switch
35	WPW10331278 Whirlpool Exhaust Pipe
36	SCREW
37	WP8563749 Whirlpool Exhaust Pipe
38	SCREW
39	W10837240 Whirlpool Dryer Idler Pulley
40	WP3400805 Whirlpool Screw Assembly
41	WP3387242 Whirlpool Seal
42	W10847984 Whirlpool Switch
43	W10391496 Whirlpool Plug
44	W10181903 Whirlpool Bracket
45	W11628810 Whirlpool Power Cord
46	BRACE, CAB AND SEAL ASSEMBLY
47	BALLAST
48	SCREW
49	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
