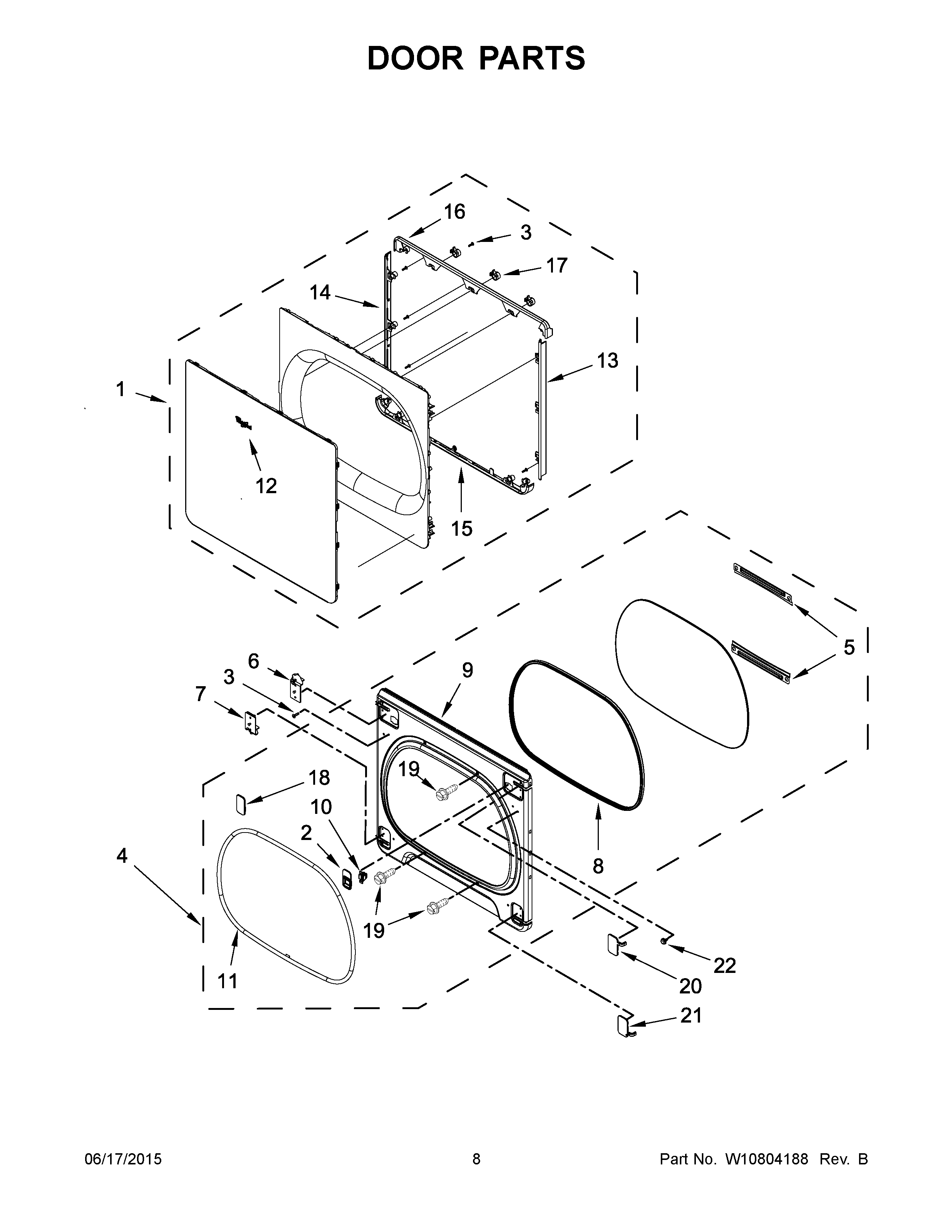

7MWGD8500EC0 05 – DOOR PARTS

Products

Position	Product
1	W10614960 Whirlpool Door Assembly
2	W10669023 Whirlpool Bezel
3	SCREW
4	W10615000 Whirlpool Door Assembly
5	RETAINER, WINDOW
6	W10850024 Whirlpool Hinge Assembly
7	W10850044 Whirlpool Hinge
8	W10726214 Whirlpool Seal
9	W10614999 Whirlpool Door
10	W11429587 Whirlpool Catch Assembly
11	W10763835 Whirlpool Door Seal Assembly
12	WPW10393264 Whirlpool Refrigerator Nameplate
13	W10614963 Whirlpool Cover
14	W10614964 Whirlpool Cover
15	W10614965 Whirlpool Appliance Trim
16	W10614966 Whirlpool Trim
17	W10614985 Whirlpool Cap Assembly
18	W10669024 Whirlpool Plate
19	WP488627 Whirlpool Refrigerator Screw
20	W10631412 Whirlpool Cover Assembly
21	W10631413 Whirlpool Cover
22	8572266 Whirlpool Bumper Assembly
