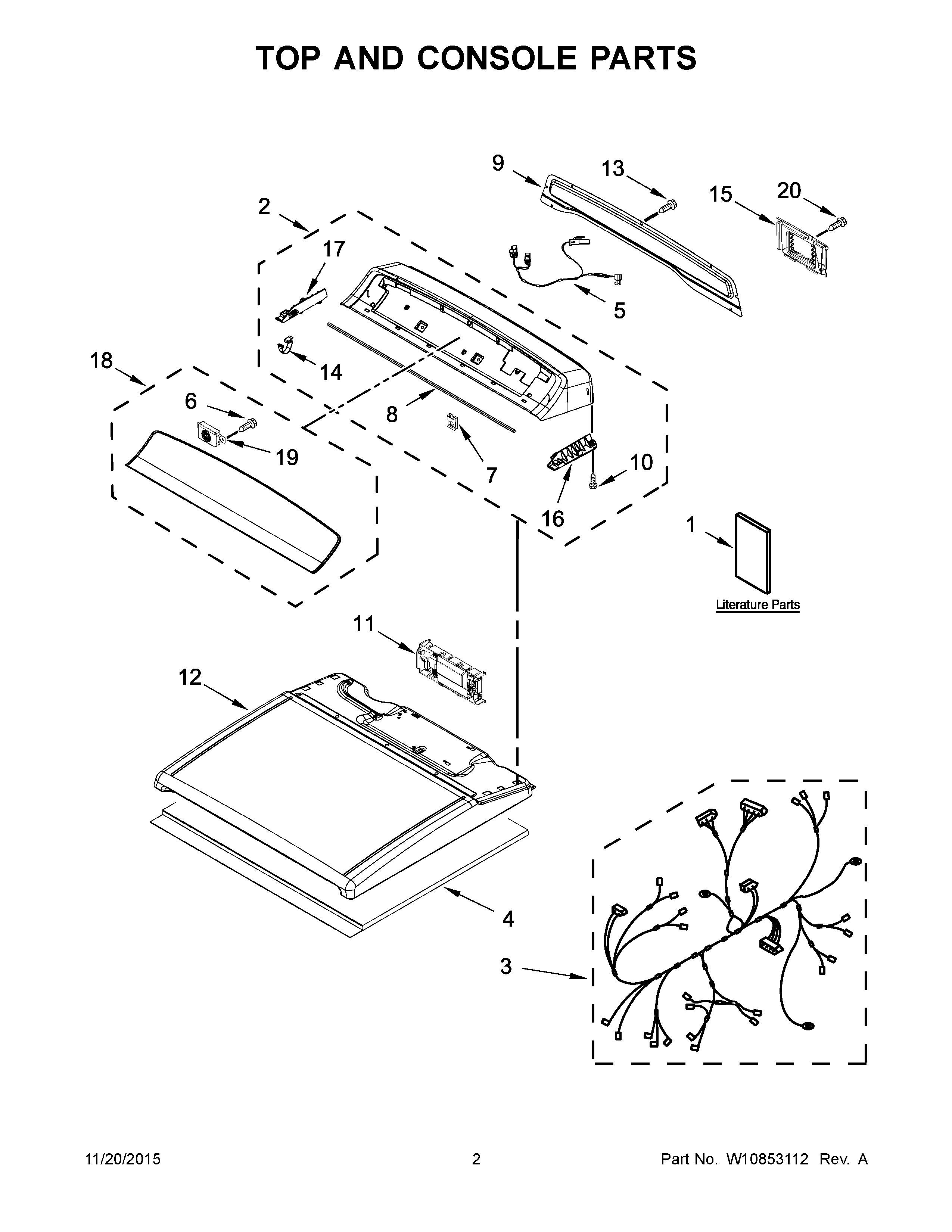

7MWGD8500EC1 02 – TOP AND CONSOLE PARTS

7MWGD8500EC1 02 – TOP AND CONSOLE PARTS

Written by

in

7MWGD8500EC1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1CQUICKSTART GUIDE
1AGUIDE, USE AND CARE
1INSTALLATION INSTRUCTIONS
1BTECH SHEET
2W11116871 Whirlpool Console
3W10777444 Whirlpool Wire Harness
4W10123956 Whirlpool Sound Absorber
5W10593673 Whirlpool Wire Harness
6W10728156 Whirlpool Screw
7W11213336 Whirlpool Nut
8W11721376 Whirlpool Seal Assembly
9W10622402 Whirlpool Rear Panel
10W10853898 Whirlpool Screw
11WPW10739350-includeCORE Whirlpool WPW10739350 Refrigerator Electronic Control Board with Core
12W11051477 Whirlpool Top
13WP9740848 Whirlpool Dishwasher Screw
14WP8312709 Whirlpool Endcap Clip
15W10819767 Whirlpool Cover
16W10631629 Whirlpool Bracket
17W10631630 Whirlpool Bracket Assembly
18W11158455 Whirlpool Overlay Panel
19W11123146 Whirlpool Speaker
20WPW10661886 Whirlpool Refrigerator Door Handle Screw
