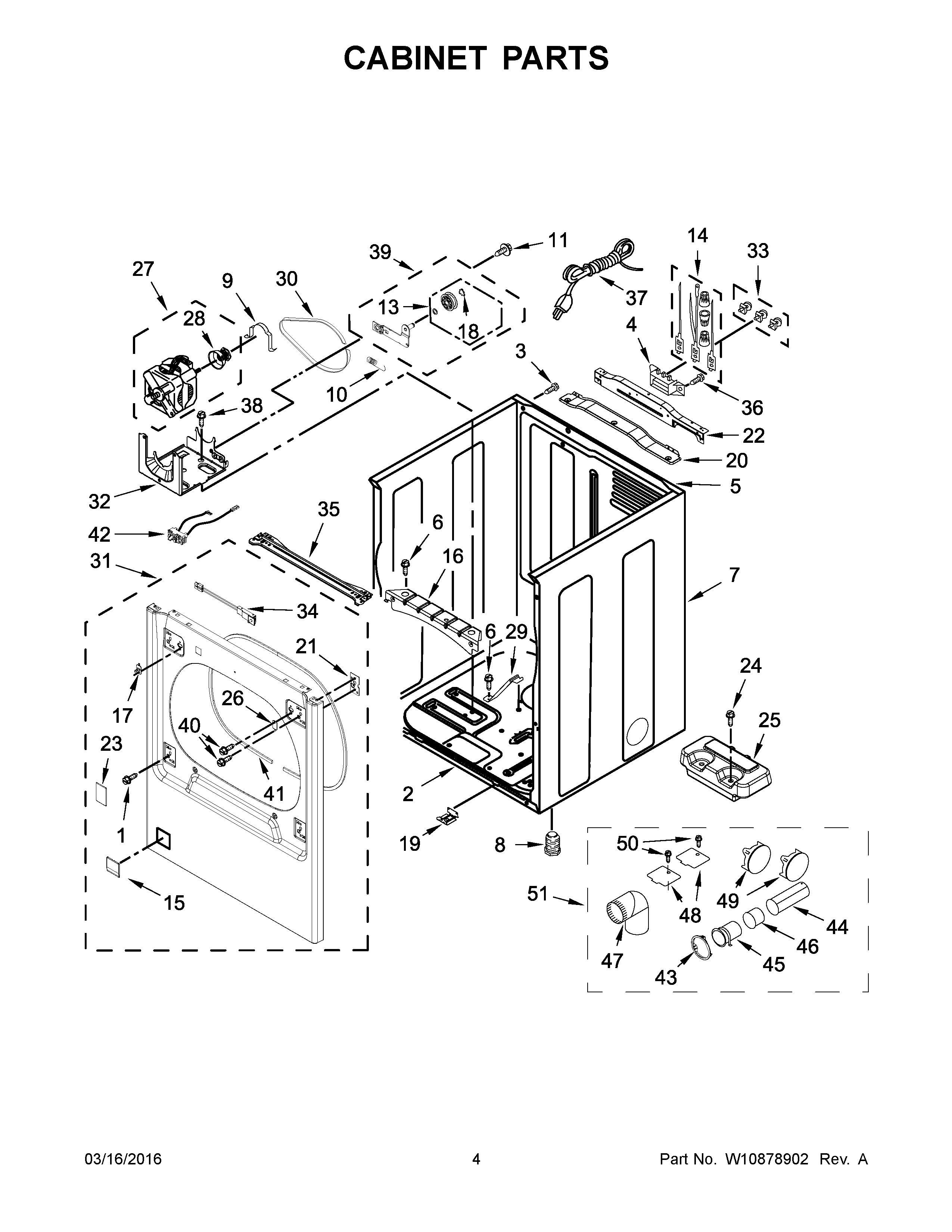

7MWGD8500EC2 03 – CABINET PARTS

7MWGD8500EC2 03 – CABINET PARTS

Written by

in

7MWGD8500EC2 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	SCREW
2	W10613683 Whirlpool Base
3	W10636208 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	W10824896 Whirlpool Rear Panel
6	WP693995 Whirlpool Screw
7	W10681831 Whirlpool Panel Assembly
7A	W10681830 Whirlpool Panel
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	W10850756 Whirlpool Screw
13	279640 Whirlpool Dryer Idler Pulley Kit
14	279318 Whirlpool Terminal
15	W10391496 Whirlpool Plug
16	W11282908 Whirlpool Bracket
17	W11163826 Whirlpool Strike
18	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
19	SPACER BRACKET, LOWER
20	W10651902 Whirlpool Bracket
21	BRACKET, HINGE
22	W10622391 Whirlpool Bracket
23	W10596965 Whirlpool Plug
24	SCREW
25	BALLAST
26	WPW10111888 Whirlpool Plate Assembly
27	W11105178 Whirlpool Drive Motor
28	W11568637 Whirlpool Motor Pulley
29	W10181903 Whirlpool Bracket
30	W10849499 Whirlpool Belt
31	W10875891 Whirlpool Panel
32	W10578053 Whirlpool Base Assembly
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	W11036551 Whirlpool Door Switch
35	BRACE, CAB AND SEAL ASSEMBLY
36	SCREW
37	W11628810 Whirlpool Power Cord
38	SCREW
39	W10837240 Whirlpool Dryer Idler Pulley
40	WP3400805 Whirlpool Screw Assembly
41	WP3387242 Whirlpool Seal
42	W11662087 Whirlpool Dryer Switch
43	WPW10344699 Whirlpool Collar
44	WP8563749 Whirlpool Exhaust Pipe
45	PIPE, EXHAUST (MEDIUM)
46	WPW10331278 Whirlpool Exhaust Pipe
47	WPW10416072 Whirlpool Elbow
48	WPW10354249 Whirlpool Cover
49	WPW10404617 Whirlpool Plug Assembly
50	WP488729 Whirlpool Refrigerator Door Screw
51	W10704365 Whirlpool Dryer Exhaust Kit
