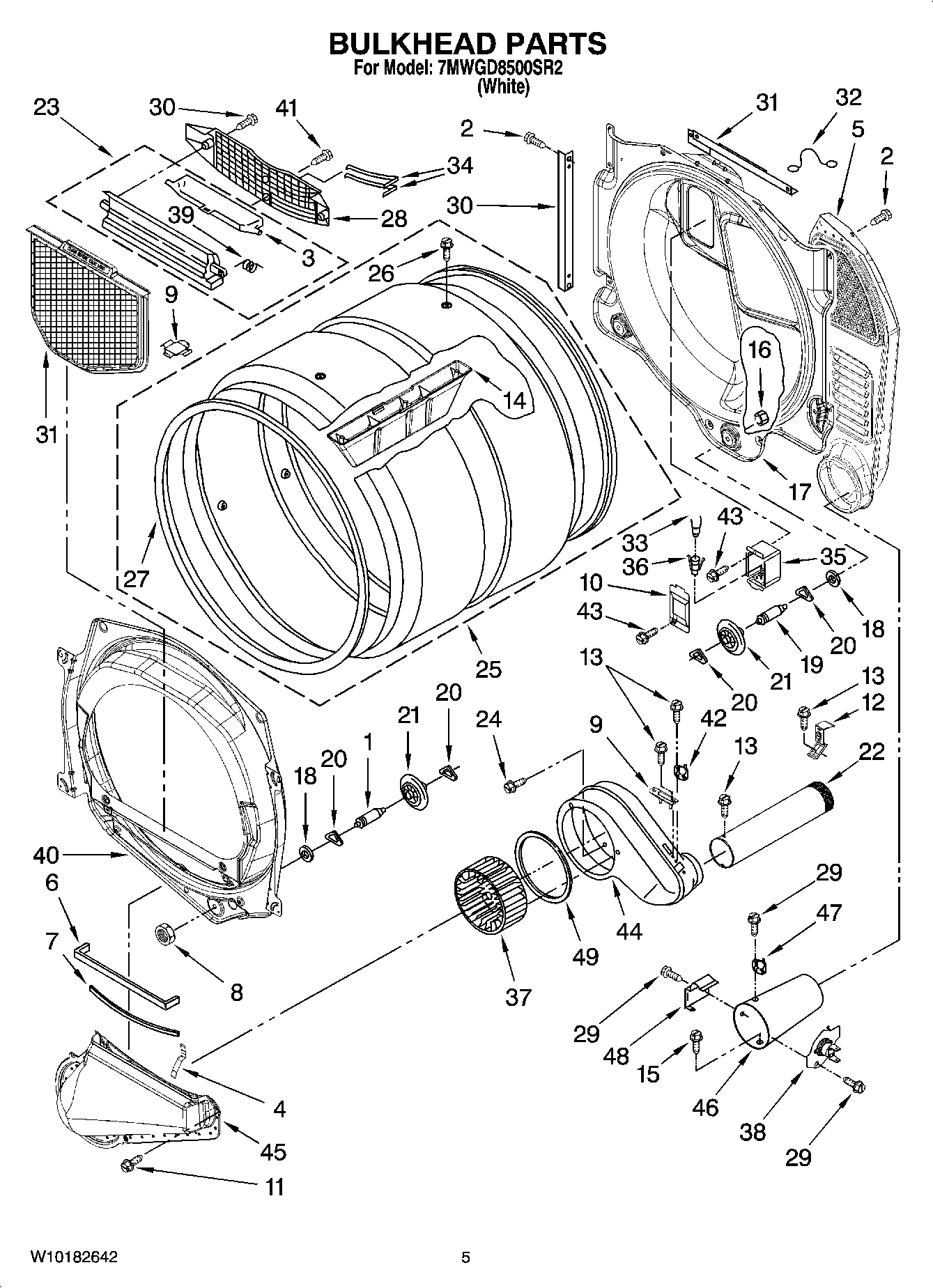

7MWGD8500SR2 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
3	W11222846 Whirlpool Door
4	WP8066208 Whirlpool Clip
5	W11168650 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	WP3392519 Whirlpool Dryer Thermal Fuse
10	W11226088 Whirlpool Lens Assembly
11	W11693756 Whirlpool Screw Assembly
12	W11684573 Whirlpool Clip Assembly
13	WP90767 Whirlpool Screw
14	W10852390 Whirlpool Drum Baffle
15	WP693995 Whirlpool Screw
16	WPW10080190 Whirlpool Nut
17	WPW10080170 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WP8563728 Whirlpool Exhaust Pipe
23	W11219327 Whirlpool Grille Outlet
24	WP489463 Whirlpool Refrigerator Screw
25	W10865330 Whirlpool Drum
26	WPW10109200 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	W11086603 Whirlpool Dryer Link Screen Air Grille
30	WP3387230 Whirlpool Screw
31	W10120998 Whirlpool Dryer Lint Screen Filter
32	WP3401707 Whirlpool Wire Assembly
33	WP22002263 Whirlpool Dryer 10W Light Bulb
34	WP3387223 Whirlpool Electrode Assembly
35	8578825 Whirlpool Bracket
36	W11700522 Whirlpool Socket
37	WP697772 Whirlpool Dryer Blower Wheel
38	WP8573713 Whirlpool Thermal Fuse
39	WP3394986 Whirlpool Spring
40	8565061 Whirlpool Bulkhead Assembly
42	WP8577274 Whirlpool Dryer Thermistor
44	W10888146 Whirlpool Housing
45	WPW10128606 Whirlpool Lint Duct
46	WP8573824 Whirlpool Funnel
47	WP8573028 Whirlpool Thermostat Assembly
48	WP338906 Whirlpool Dryer Gas Sensor
49	WP697770 Whirlpool Blower Cover Plate Seal
