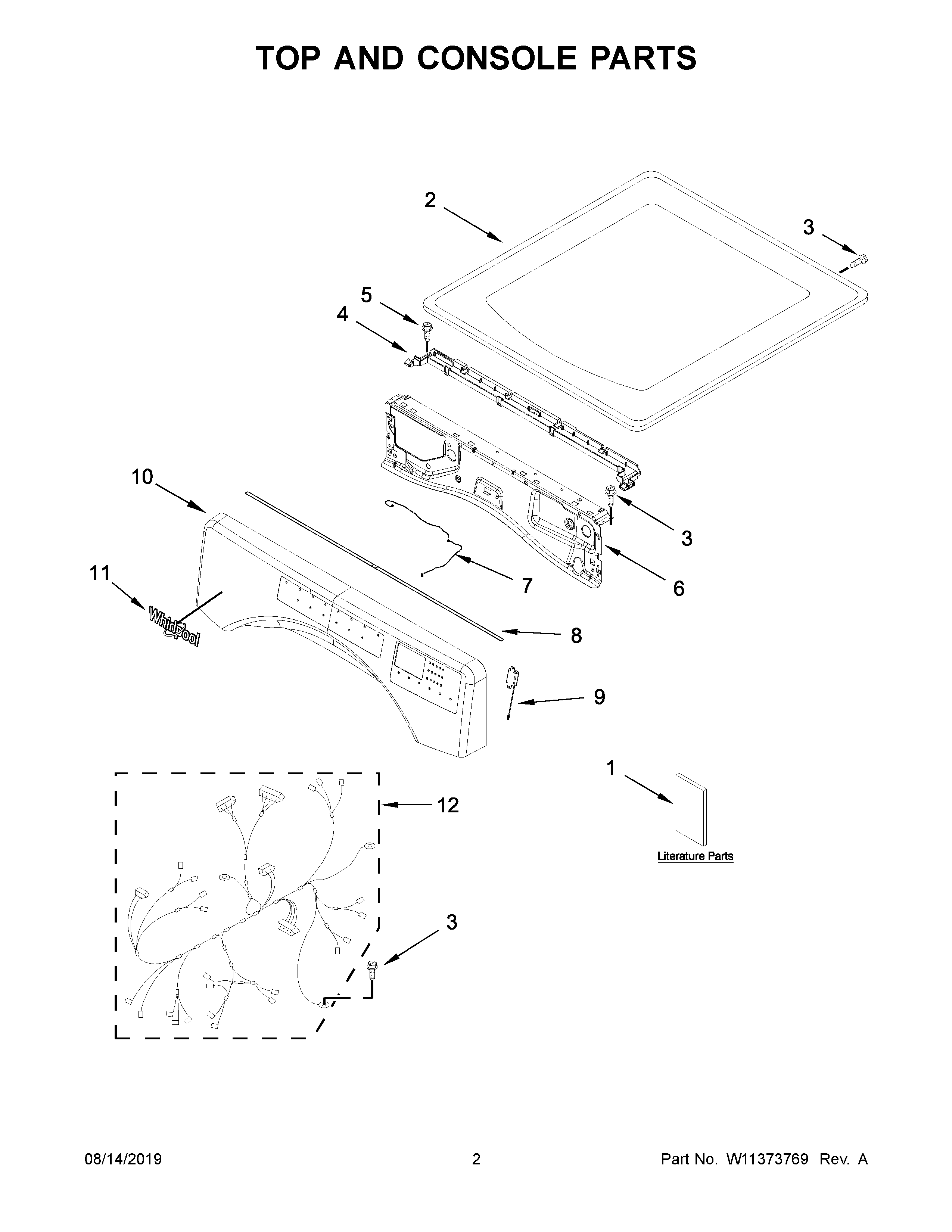

7MWGD8620HC1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BTECH SHEET
1DQUICK START GUIDE
1AINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
1CWIRING DIAGRAM
2WPW10460919 Whirlpool Top
3WP693995 Whirlpool Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7W11459337 Whirlpool Wire Harness
8SEAL
9W11123146 Whirlpool Speaker
10W11367342 Whirlpool Console + Core
11W11223753 Whirlpool Refrigerator Nameplate
12W11157861 Whirlpool Wire Harness
