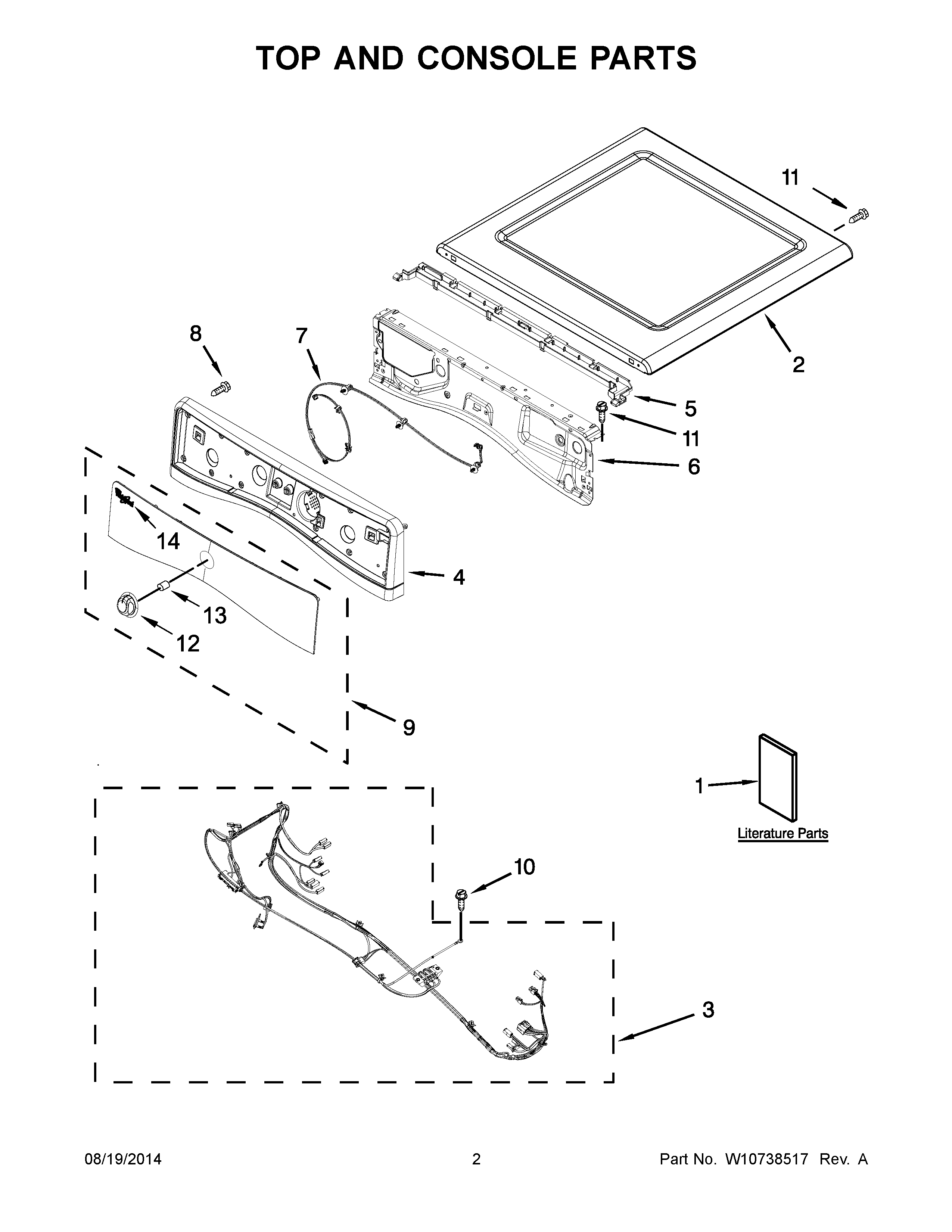

7MWGD87HEDC0 02 – TOP AND CONSOLE PARTS

7MWGD87HEDC0 02 – TOP AND CONSOLE PARTS

Written by

in

7MWGD87HEDC0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1CINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
1ATECH SHEET
1BWIRING DIAGRAM
2WPW10460919 Whirlpool Top
3HARNESS, MAIN WIRING
4W10876224 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10837344 Whirlpool Wire Harness
8WP489463 Whirlpool Refrigerator Screw
9IML ASSEMBLY (CHROME SHADOW)
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10631127 Whirlpool Knob
13WP8536939 Whirlpool Spring Clip
14WPW10393264 Whirlpool Refrigerator Nameplate
