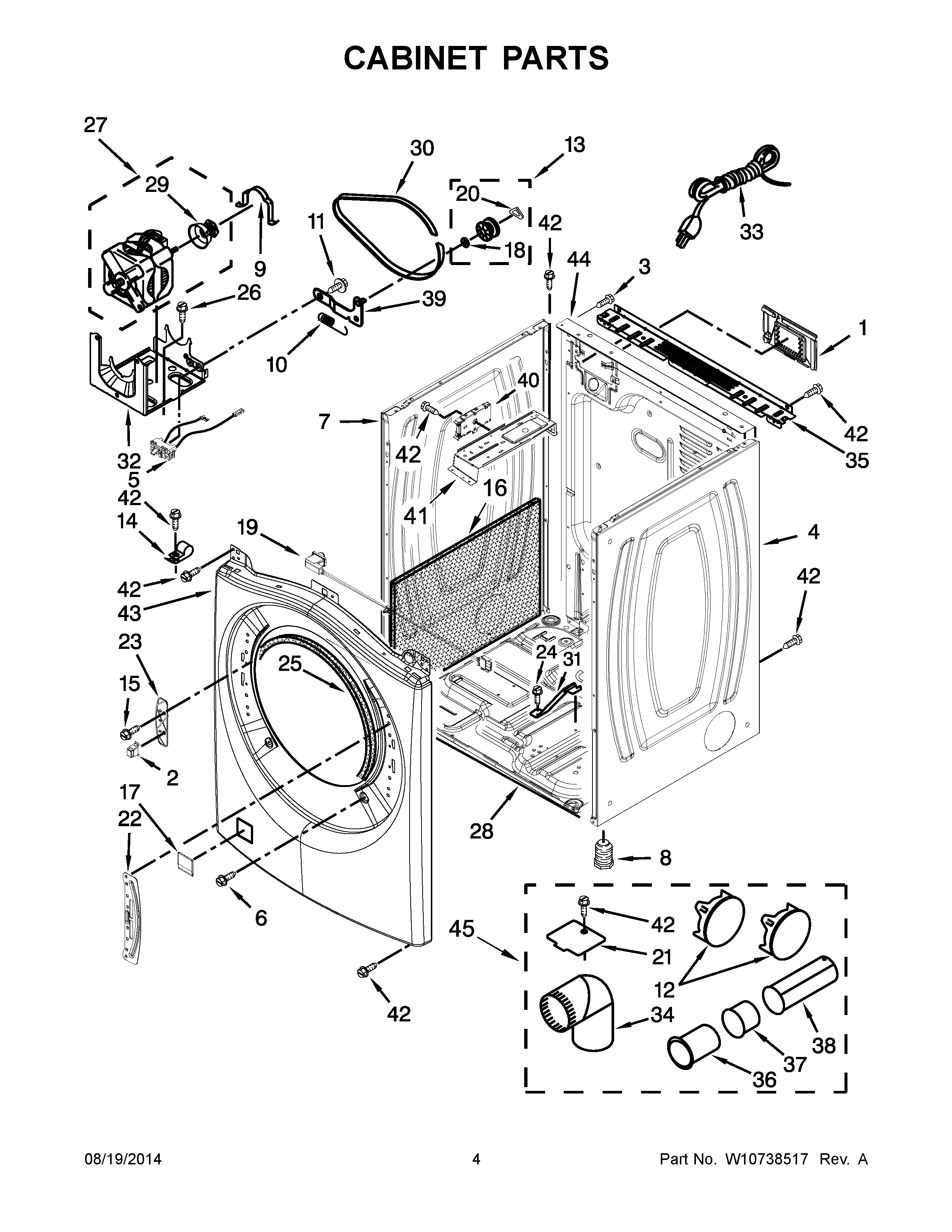

7MWGD87HEDC0 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	W10819767 Whirlpool Cover
2	W11240283 Whirlpool Catch Assembly
3	W10850756 Whirlpool Screw
4	W11321018 Whirlpool Panel
5	W10847984 Whirlpool Switch
6	WP308685 Whirlpool Microwave Screw
7	W11315726 Whirlpool Panel Assembly
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	279640 Whirlpool Dryer Idler Pulley Kit
14	3978776 Whirlpool Bracket
15	SCREW
16	W10123956 Whirlpool Sound Absorber
17	W10391496 Whirlpool Plug
18	WPW10121334 Whirlpool Washer
19	WPW10350906 Whirlpool Door Switch
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10354249 Whirlpool Cover
22	BRACKET, DOOR HINGE
23	WPW10208250 Whirlpool Strike
24	WP693995 Whirlpool Screw
25	WP3387242 Whirlpool Seal
26	SCREW
27	MOTOR-DRVE
28	W11215531 Whirlpool Base
29	WP8066184 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10181903 Whirlpool Bracket
32	W11481730 Whirlpool Bracket
33	W11628810 Whirlpool Power Cord
34	WPW10416072 Whirlpool Elbow
35	WPW10208382 Whirlpool Dryer Bracket
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	W10837240 Whirlpool Dryer Idler Pulley
40	WPW10654006 Whirlpool Electronic Control Board + Core
41	BRACKET, CONTROL
42	WP488729 Whirlpool Refrigerator Door Screw
43	WPW10463309 Whirlpool Dishwasher Panel
44	W10487430 Whirlpool Rear Panel
45	W10323246 Whirlpool Dryer Vent Kit 4-Way
