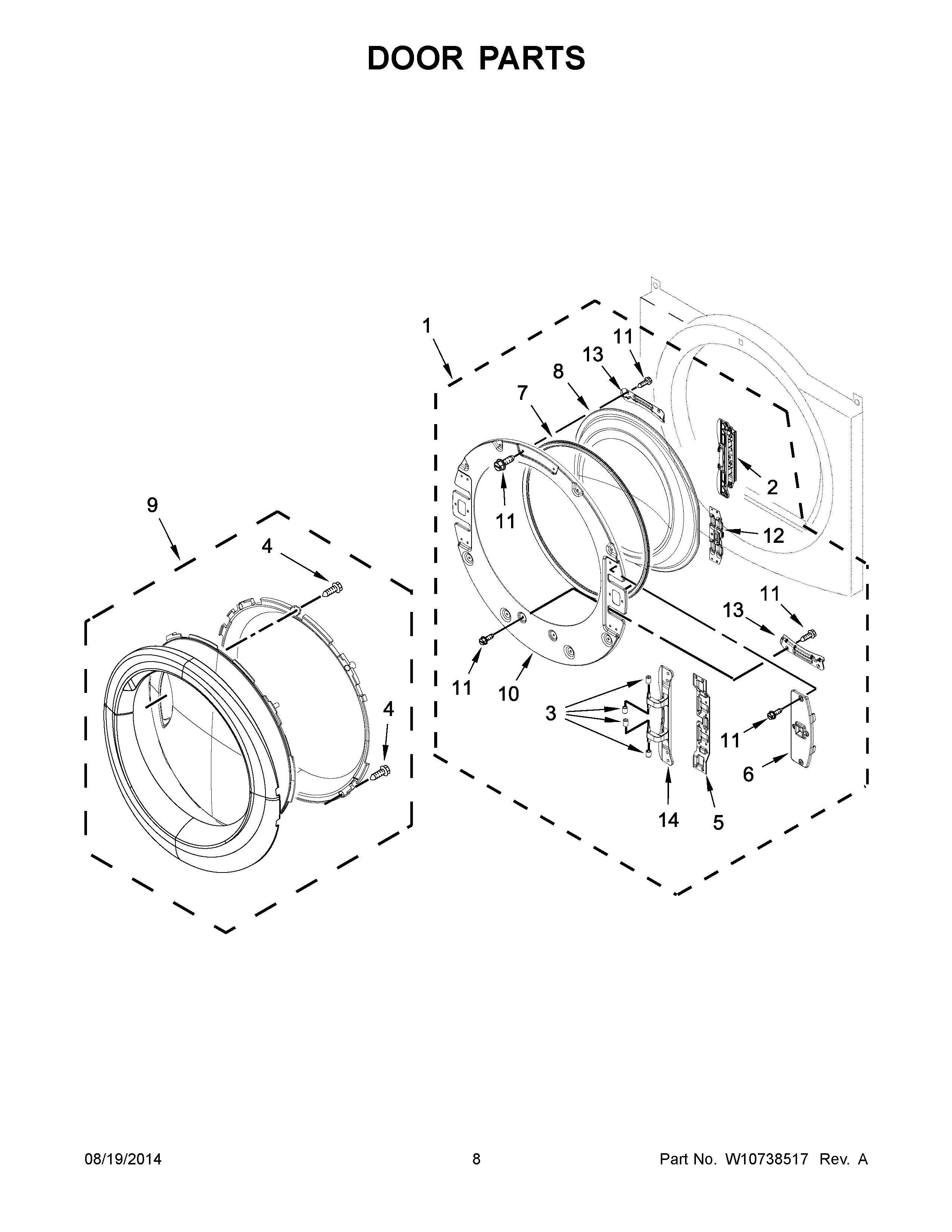

7MWGD87HEDC0 05 – DOOR PARTS

Products

PositionProduct
1ASSEMBLY, INNER DOOR
2HINGE
3WPW10208398 Whirlpool Hinge Pin Cap
4SCREW
5WPW10208419 Whirlpool Plate
6W10772469 Whirlpool Door Catch Cover
7W11126230 Whirlpool Seal
8W11310036 Whirlpool Door Glass
9W10877391 Whirlpool Door Assembly
10DOOR, INNER
11SCREW
12WPW10208254 Whirlpool Catch
13W10208252 Whirlpool Retainer
14HINGE
