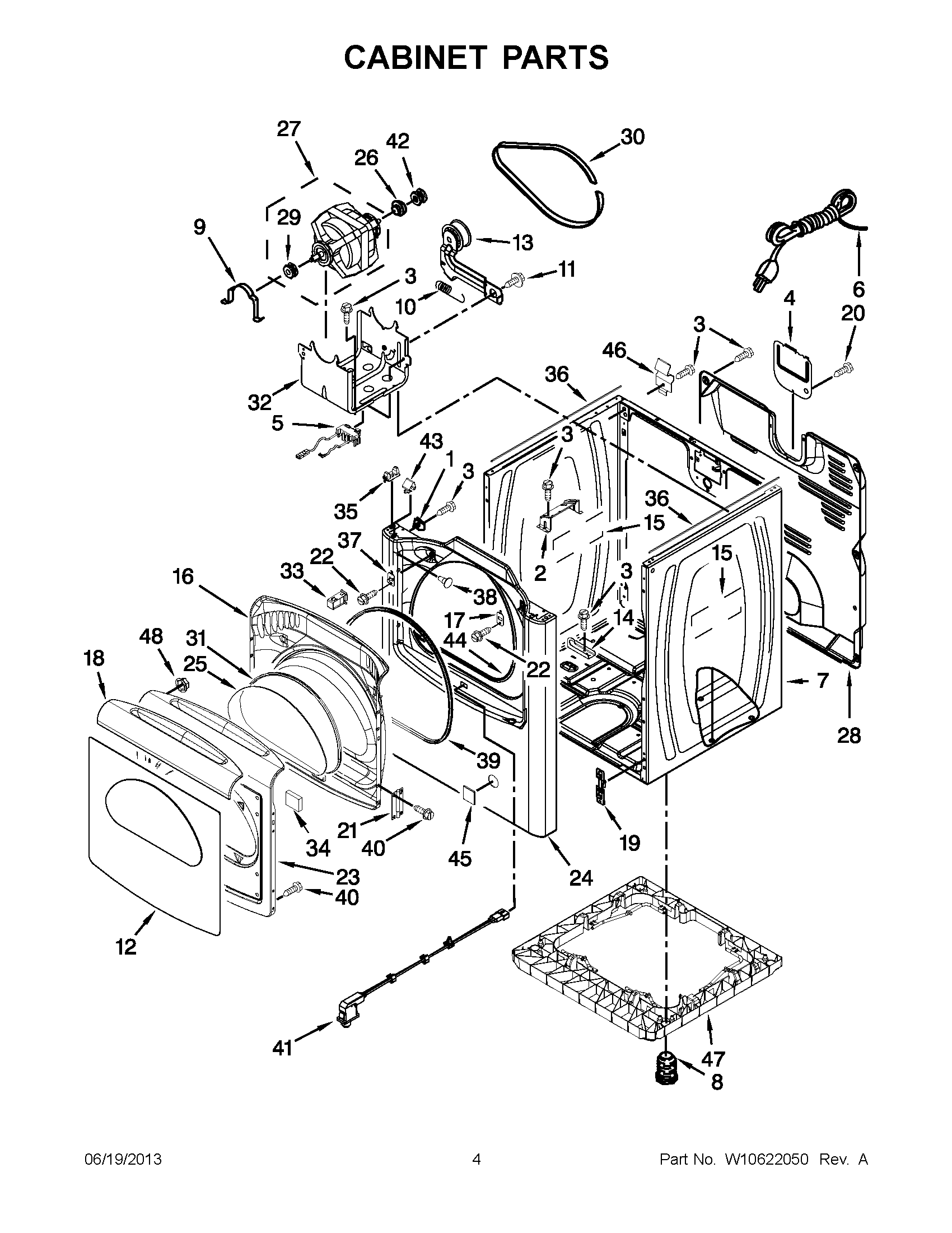

7MWGD8800AW1 02 – CABINET PARTS

Products

Position	Product
1	WP98234 Whirlpool Nut
2	BRACKET, BURNER
3	WP3390631 Whirlpool Screw
4	W11736322 Whirlpool Cover Assembly
5	WPW10411937 Whirlpool Switch
6	W11222083 Whirlpool Power Cord
7	W10223154 Whirlpool Cabinet Assembly
8	W10813918 Whirlpool Leveling Feet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WINDOW, OUTER DOOR
13	WPW10547292 Whirlpool Dryer Idler Pulley
14	BRACKET-GAS PIPE
15	W10123956 Whirlpool Sound Absorber
16	DOOR, INNER (WHITE)
17	WPW10111888 Whirlpool Plate Assembly
18	WPW10402478 Whirlpool Handle
19	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
20	W10850756 Whirlpool Screw
21	WP8565018 Whirlpool Hinge
22	WP3400805 Whirlpool Screw Assembly
23	DOOR, OUTER (WHITE)
24	WPW10463262 Whirlpool Panel
25	WPL 8558846
26	WP3393657 Whirlpool Belt Retainer
27	WPW10448896 Whirlpool Drive Motor
28	Panel, Rear
29	PULLEY, BLOWER
30	WP8547157 Whirlpool Dryer Drum Drive Belt
31	W10076050 Whirlpool Gasket
32	BRACKET, MOTOR
33	WPW10111905 Whirlpool Dryer Door Catch
34	3389682 Whirlpool Spacer
35	WP8568303 Whirlpool Lock Assembly
36	WPW10157932 Whirlpool Seal Foam
37	W10295405 Whirlpool Strike
38	PLUG, HOLE
39	W10239307 Whirlpool Door Seal
40	WP488627 Whirlpool Refrigerator Screw
41	WPW10350907 Whirlpool Door Switch
42	WP8547171 Whirlpool Motor Pulley
43	WP8576625 Whirlpool Lock
44	W10044490 Whirlpool Seal Assembly
45	W10811916 Whirlpool Plug
46	WP8066217 Whirlpool Hinge
47	W10838688 Whirlpool Base
48	WP308499 Whirlpool Nut
