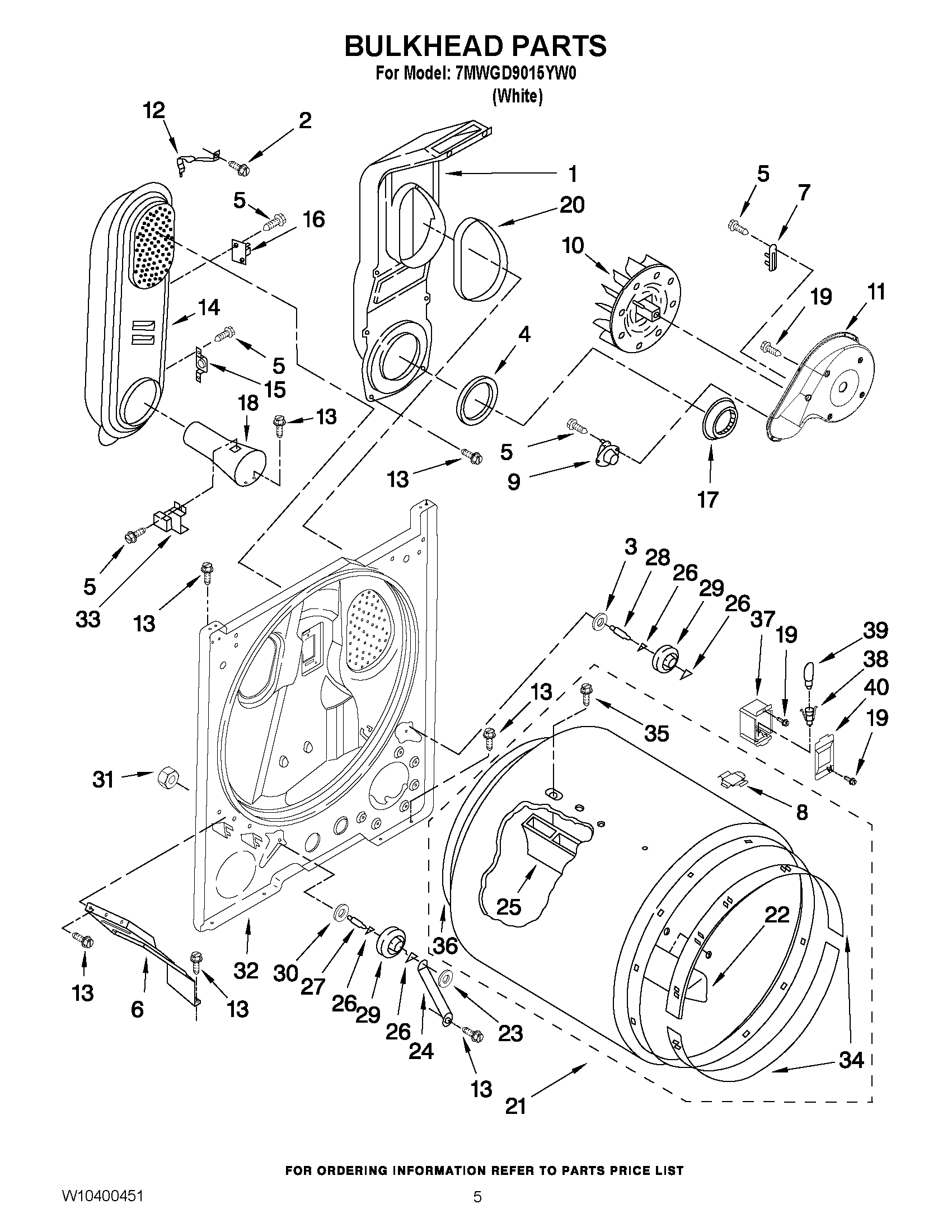

7MWGD9015YW0 03 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	WP489463 Whirlpool Refrigerator Screw
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	W11398682 Whirlpool Bracket
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	8066086 Whirlpool Plug
9	WP3387134 Whirlpool Dryer Cycling Thermostat
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	CLIP, HEATER BOX
13	SCREW
14	279980 Whirlpool Box
15	W11050897 Whirlpool Dryer High Limit Thermostat
16	279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
17	W11233063 Whirlpool Shield Assembly
18	WP8066049 Whirlpool Funnel Assembly
19	WP488729 Whirlpool Refrigerator Door Screw
20	SEAL
21	W10899578 Whirlpool Dryer Drum Assembly
22	WP3403636 Whirlpool Drum Baffle
23	WP90296 Whirlpool Clip
24	W11684613 Whirlpool Bracket
25	BAFFLE-DRM
26	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
27	SHAFT SUPPORT ROLLER DRYER
28	SHAFT SUPPORT ROLLER DRYER
29	349241T Whirlpool Dryer Drum Support Roller Kit
30	WP348197 Whirlpool Washer Assembly
31	W11229607 Whirlpool Nut
32	W10828911 Whirlpool Bulkhead Assembly
33	WP338906 Whirlpool Dryer Gas Sensor
34	279441 Whirlpool Front Bearing Ring
35	W10853898 Whirlpool Screw
36	W10612022 Whirlpool Felt Seal
37	3977373 Whirlpool Bracket
38	W11700522 Whirlpool Socket
39	WP22002263 Whirlpool Dryer 10W Light Bulb
40	W11226088 Whirlpool Lens Assembly
