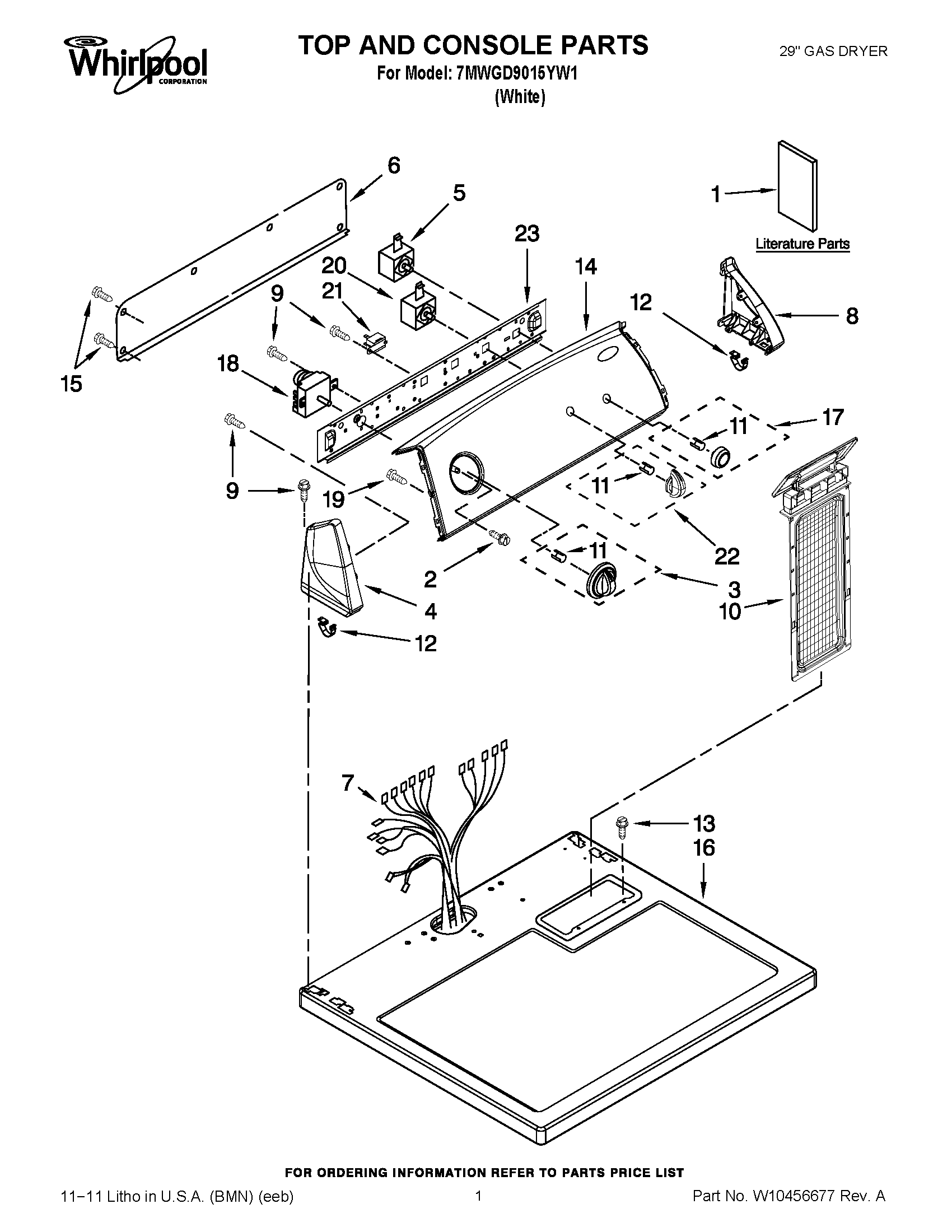

7MWGD9015YW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1Installation Instructions
1SHEET, CYCLE FEATURE
1Use And Care Guide
2WP3390631 Whirlpool Screw
3WP8566061 Whirlpool Knob
4WP8565957 Whirlpool Endcap Assembly
5WP3398095 Whirlpool Dryer Start Relay
6W10103406 Whirlpool Rear Panel
7W10740201 Whirlpool Wire Harness
8WP8565954 Whirlpool Endcap
9WP90767 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP8312709 Whirlpool Endcap Clip
13W11693756 Whirlpool Screw Assembly
14CONTROL PANEL & BRACKET ASSEMBLY
15WP693995 Whirlpool Screw
16WP8563663 Whirlpool Top Assembly
17WP8566073 Whirlpool Appliance Knob
18WPW10185981 Whirlpool Timer
19W10915367 Whirlpool Screw Assembly
20WP3399639 Whirlpool Switch
21WP694419 Whirlpool Buzzer Adjuster
22Knob, Control
238566052 Whirlpool Bracket
