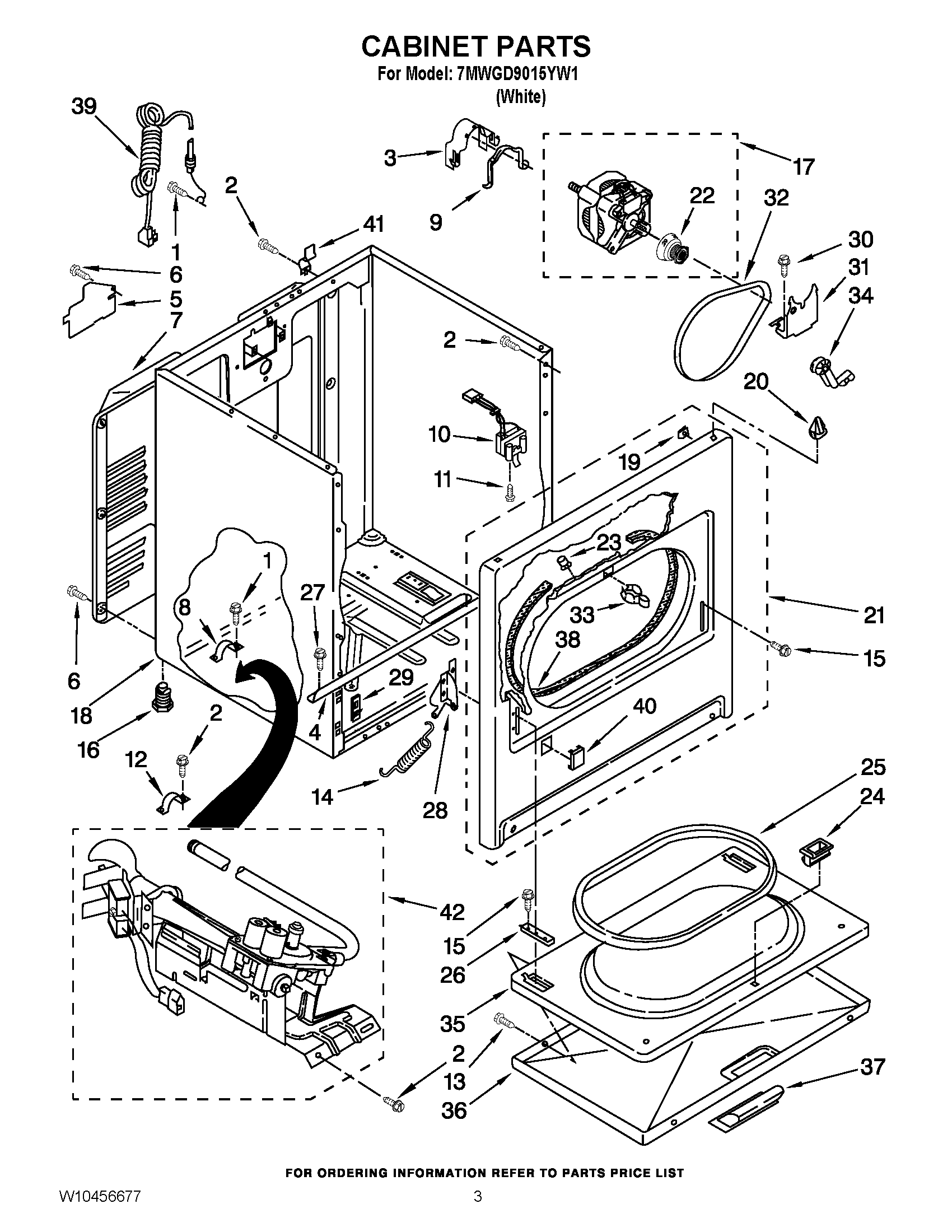

7MWGD9015YW1 02 – CABINET PARTS

7MWGD9015YW1 02 – CABINET PARTS

Written by

in

7MWGD9015YW1 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1WP3390631 Whirlpool Screw
2SCREW
3WP3404162 Whirlpool Clamp
4BRACKET, CABINET
5W11539855 Whirlpool Refrigerator Pump
6WP693995 Whirlpool Screw
7280043 Whirlpool Rear Panel
9CLAMP
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
12341029 Whirlpool Clamp
13WP488627 Whirlpool Refrigerator Screw
14WPW10041960 Whirlpool Door Spring
15WP308685 Whirlpool Microwave Screw
17279827 Whirlpool Dryer Drive Motor
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21279740 Whirlpool Panel Primary with O/S2
22WP8066184 Whirlpool Dryer Motor Pulley
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25W10906683 Whirlpool Door Seal
26W11252547 Whirlpool Clip Assembly
27WP488729 Whirlpool Refrigerator Door Screw
28WP8066057 Whirlpool Door Hinge
28WP8066056 Whirlpool Door Hinge
29W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
303400500 Whirlpool Screw
31WP348780 Whirlpool Base
32341241 Whirlpool Dryer Drum Belt
33279570 Whirlpool Dryer Door Latch Kit
34WP691366 Whirlpool Dryer Idler Pulley Assembly
35WP695737 Whirlpool Door
36WP3393549 Whirlpool Door Assembly
37W10877261 Whirlpool Handle Assembly
38W11035878 Whirlpool Bearing and Seal
39W11222083 Whirlpool Power Cord
40W10811916 Whirlpool Plug
41WP8066217 Whirlpool Hinge
42W10823508 Whirlpool Gas Burner
