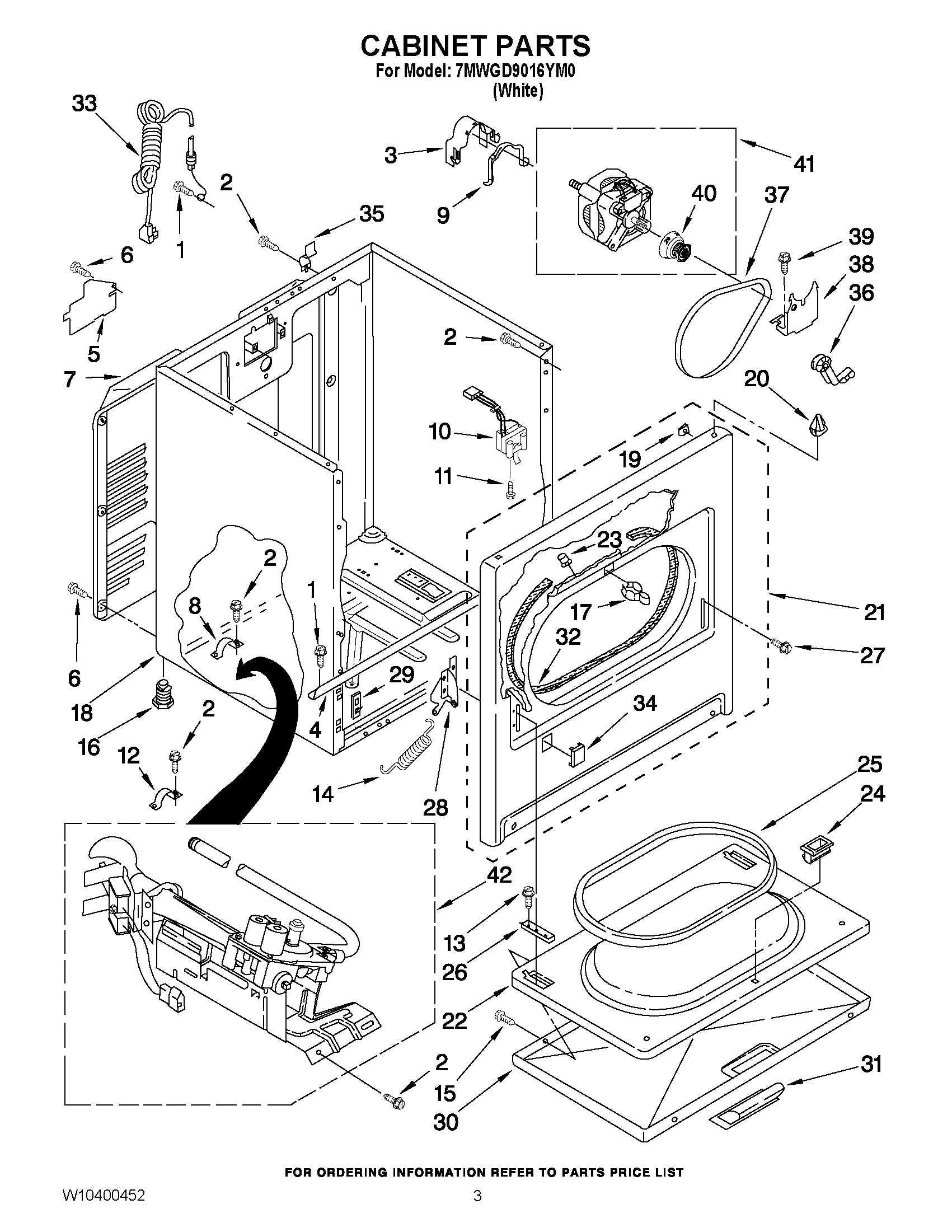

7MWGD9016YM0 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	WP3390631 Whirlpool Screw
2	SCREW
3	WP3404162 Whirlpool Clamp
4	BRACKET, CABINET
5	W11539855 Whirlpool Refrigerator Pump
6	WP693995 Whirlpool Screw
7	280043 Whirlpool Rear Panel
9	CLAMP
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	341029 Whirlpool Clamp
13	WP488627 Whirlpool Refrigerator Screw
14	WPW10041960 Whirlpool Door Spring
15	WP308685 Whirlpool Microwave Screw
17	279570 Whirlpool Dryer Door Latch Kit
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	279740 Whirlpool Panel Primary with O/S2
22	WP695737 Whirlpool Door
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	W10906683 Whirlpool Door Seal
26	W11252547 Whirlpool Clip Assembly
27	Screw, 10-32 x 1/2
28	WP8066057 Whirlpool Door Hinge
28	WP8066056 Whirlpool Door Hinge
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
30	WP3393549 Whirlpool Door Assembly
31	W10877261 Whirlpool Handle Assembly
32	W11035878 Whirlpool Bearing and Seal
33	W11222083 Whirlpool Power Cord
34	W10811916 Whirlpool Plug
35	WP8066217 Whirlpool Hinge
36	WP691366 Whirlpool Dryer Idler Pulley Assembly
37	341241 Whirlpool Dryer Drum Belt
38	WP348780 Whirlpool Base
39	3400500 Whirlpool Screw
40	WP8066184 Whirlpool Dryer Motor Pulley
41	279827 Whirlpool Dryer Drive Motor
42	W10823508 Whirlpool Gas Burner
