7MWGD90HEFC0 05 – DOOR PARTS – Aparts

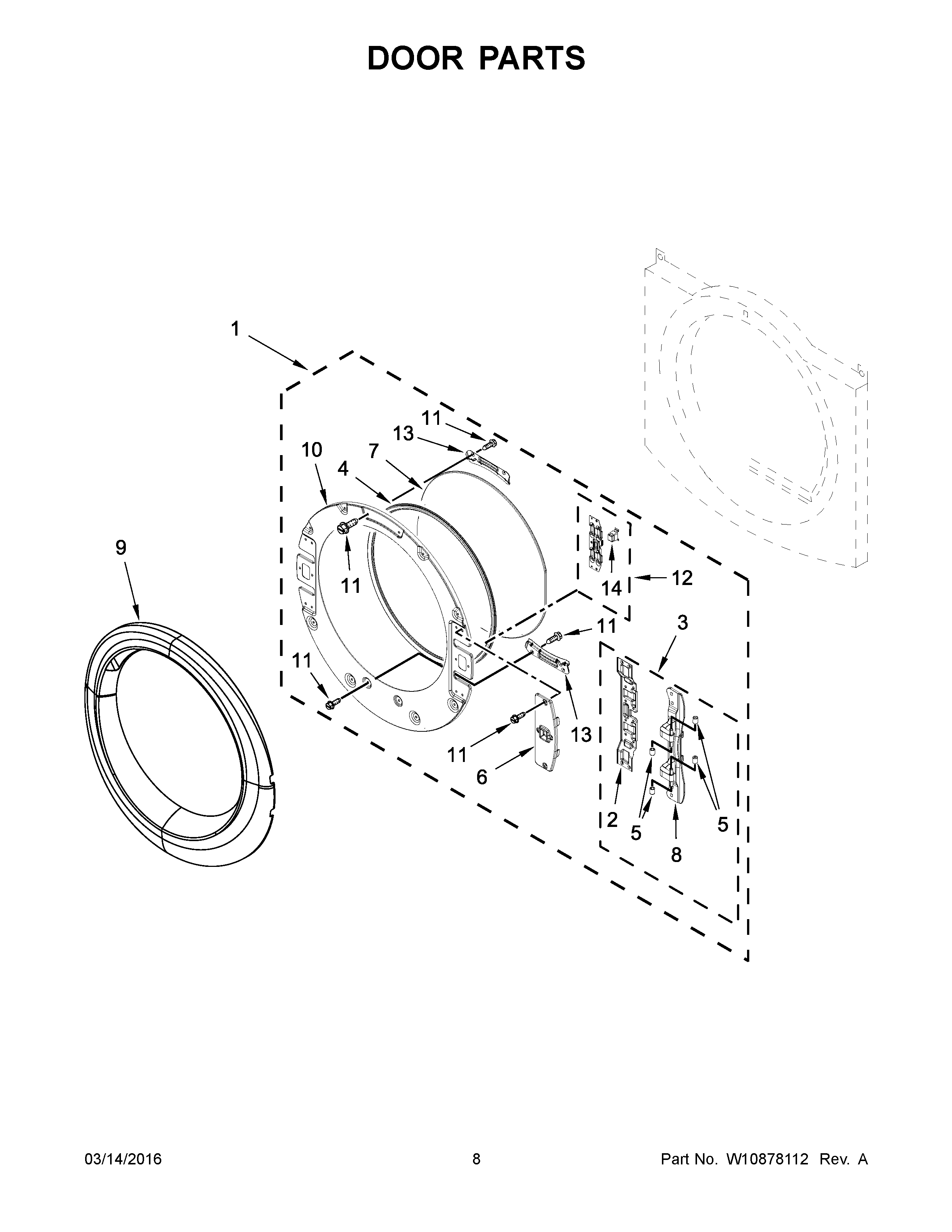

7MWGD90HEFC0 05 – DOOR PARTS

Products

Position	Product
1	DOOR ASSEMBLY, INNER
2	HINGE
3	HINGE
4	W11126230 Whirlpool Seal
5	WPW10208398 Whirlpool Hinge Pin Cap
6	W10772469 Whirlpool Door Catch Cover
7	W10749947 Whirlpool Window
8	WPW10208419 Whirlpool Plate
9	W11168739 Whirlpool Door
10	DOOR, INNER
11	SCREW
12	WPW10208254 Whirlpool Catch
13	W10208252 Whirlpool Retainer
14	W11240283 Whirlpool Catch Assembly
