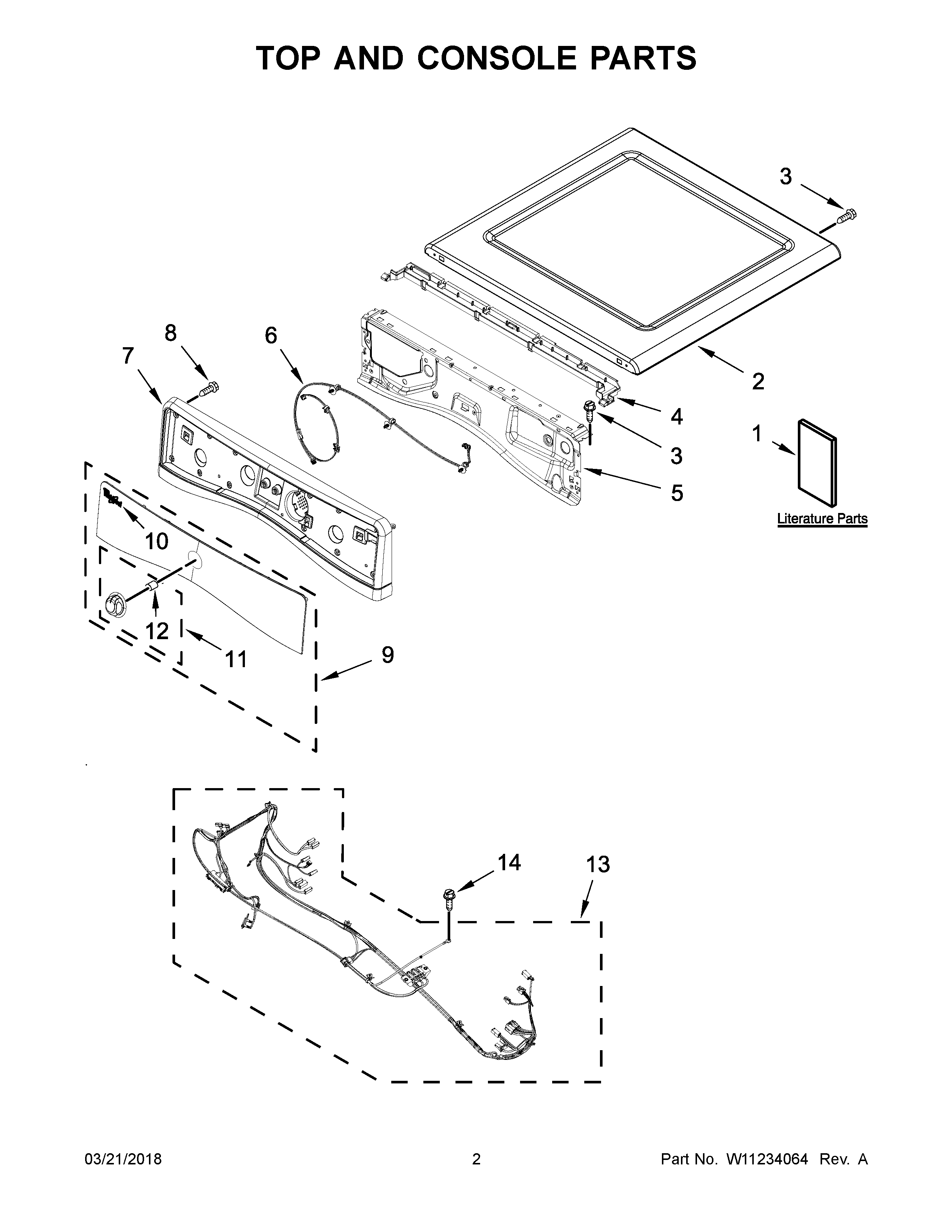

7MWGD90HEFC1 02 – TOP AND CONSOLE PARTS

7MWGD90HEFC1 02 – TOP AND CONSOLE PARTS

Written by

in

7MWGD90HEFC1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
1CWIRING DIAGRAM
1BTECH SHEET
2AWPW10460919 Whirlpool Top
2WPW10208383 Whirlpool Top Panel
3WP488729 Whirlpool Refrigerator Door Screw
4WPW10653575 Whirlpool Channel
5W11480682 Whirlpool Bracket
6W10837344 Whirlpool Wire Harness
7AW10876224 Whirlpool Console
7WPW10391519 Whirlpool Console
8WP489463 Whirlpool Refrigerator Screw
9W10919212 Whirlpool Control Panel
9AW10919215 Whirlpool Control Panel
10BADGE (WHITE)
11W10875909 Whirlpool Timer Knob
12WP8536939 Whirlpool Spring Clip
13HARNESS, MAIN WIRING
14WP693995 Whirlpool Screw
←WDF332PAMB0 11 – OPTIONAL PARTS (NOT INCLUDED)
WDF310PLAT0 04 – FILL, DRAIN AND OVERFILL PARTS→
