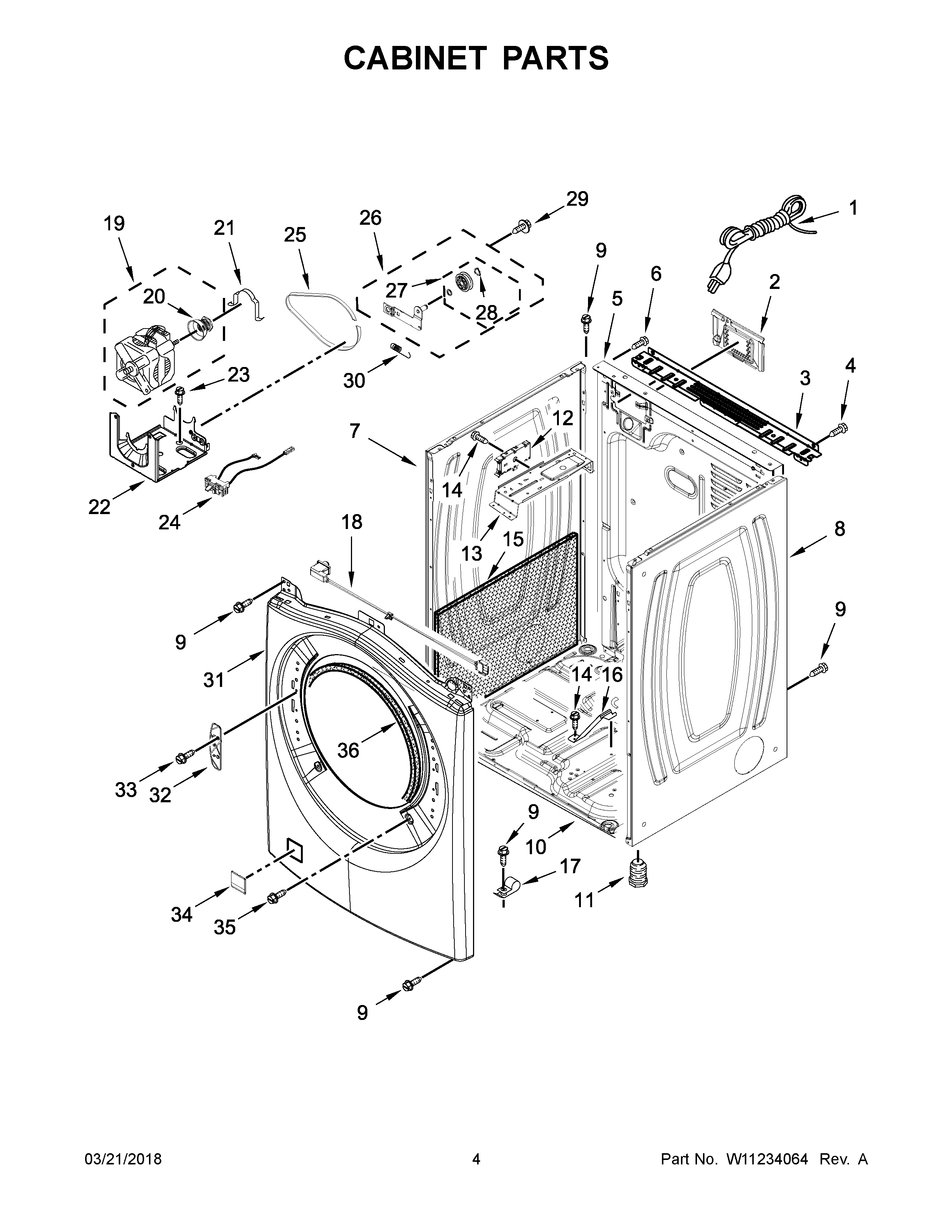

7MWGD90HEFC1 03 – CABINET PARTS

Products

Position	Product
NI	W10323246 Whirlpool Dryer Vent Kit 4-Way
NI	49621 Whirlpool Leveling Feet
1	W10869140 Whirlpool Power Cord
2	W10819767 Whirlpool Cover
3	WPW10208382 Whirlpool Dryer Bracket
5	W10487430 Whirlpool Rear Panel
6	W10850756 Whirlpool Screw
7A	W11315726 Whirlpool Panel Assembly
7	W11233548 Whirlpool Panel
8A	W11321018 Whirlpool Panel
8	W11310043 Whirlpool Panel
9	WP488729 Whirlpool Refrigerator Door Screw
10	W11215531 Whirlpool Base
12	W11537215-includeCORE Whirlpool W11537215 Control Board + Core
13	BRACKET, CONTROL
14	WP693995 Whirlpool Screw
15	W11668653 Whirlpool Sound Panel
16	W10181903 Whirlpool Bracket
17	3978776 Whirlpool Bracket
18	WPW10350906 Whirlpool Door Switch
19	MOTOR-DRVE
20	WP8066184 Whirlpool Dryer Motor Pulley
21	CLAMP
22	W11481730 Whirlpool Bracket
23	SCREW
24	W11662087 Whirlpool Dryer Switch
25	661570V Whirlpool Dryer Drum Belt
26	W10837240 Whirlpool Dryer Idler Pulley
27	279640 Whirlpool Dryer Idler Pulley Kit
28	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
29	WP3389420 Whirlpool Screw
30	WPW10446781 Whirlpool Spring
31A	WPW10463309 Whirlpool Dishwasher Panel
31	WPW10363953 Whirlpool Dishwasher Panel
32	WPW10208250 Whirlpool Strike
33	SCREW
34A	W10391496 Whirlpool Plug
34	W10811916 Whirlpool Plug
35	WP308685 Whirlpool Microwave Screw
36	WP3387242 Whirlpool Seal
