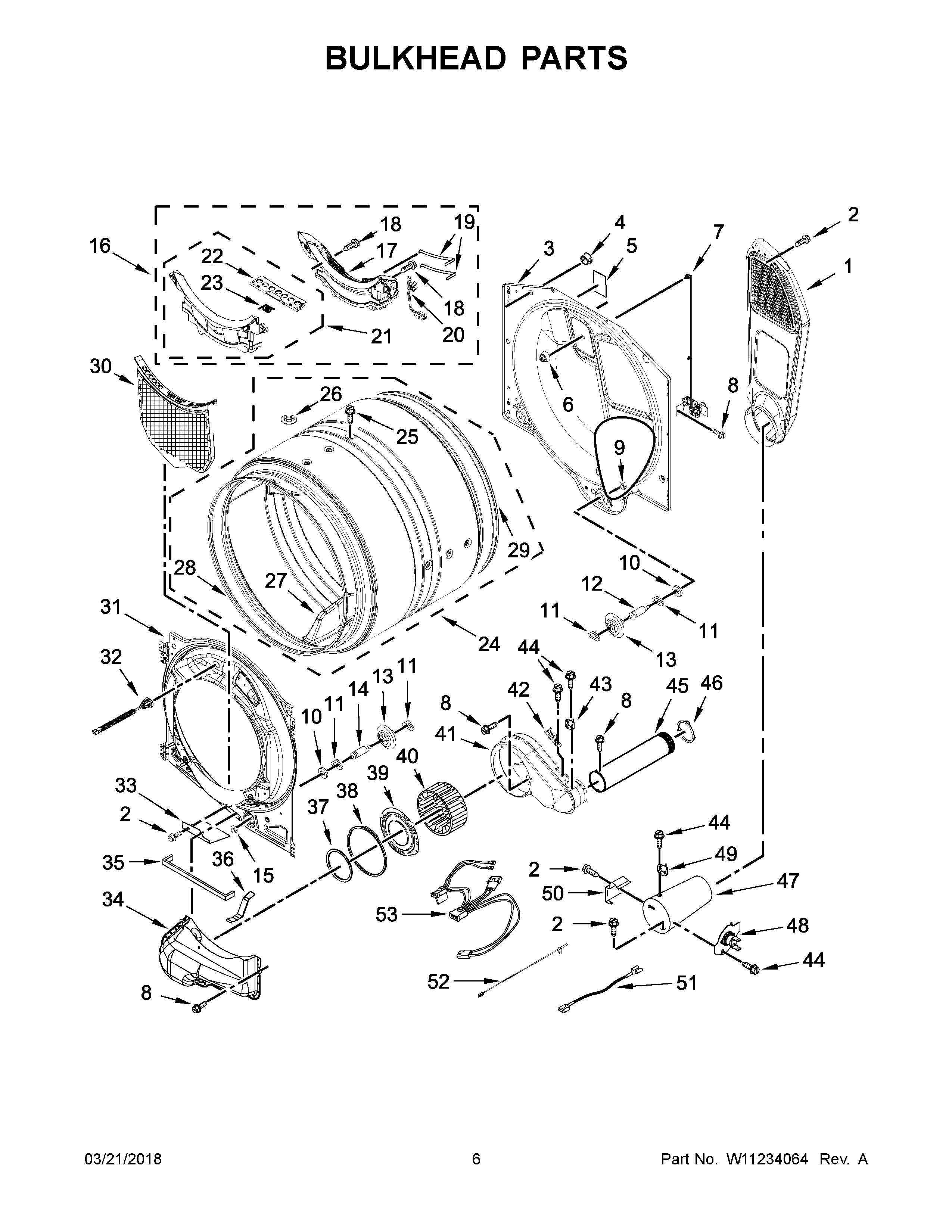

7MWGD90HEFC1 04 – BULKHEAD PARTS

Products

Position	Product
1	WPW10293765 Whirlpool Air Duct
2	WP488729 Whirlpool Refrigerator Door Screw
3	W11299321 Whirlpool Bulkhead
4	8529007 Whirlpool Plug
5	W11409002 Whirlpool Pad
6	W11230609 Whirlpool Nozzle
7	W11216837 Whirlpool Valve
8	WP489463 Whirlpool Refrigerator Screw
9	WPW10080190 Whirlpool Nut
10	W11236646 Whirlpool Washer Assembly
11	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
12	SHAFT
13	WPW10314173 Whirlpool Dryer Drum Support Wheel
14	SHAFT
15	WPW10080210 Whirlpool Nut
16	HOUSNG-DRYER LINT
17	W11125442 Whirlpool Outer Grille
18	W11590579 Whirlpool Screw
19	WP3387223 Whirlpool Electrode Assembly
20	WPW10298258 Whirlpool Wire Harness
21	W10905013 Whirlpool Door
22	W11156832 Whirlpool Air Grille
23	W10381481 Whirlpool Drum Assembly
24	W11678124 Whirlpool Dryer Spring
25	W10853898 Whirlpool Screw
26	W10665050 Whirlpool Plug
27	W10416098 Whirlpool Baffle Assembly
28	W11193479 Whirlpool Seal
29	280114 Whirlpool Dryer Drum Seal
30	SCREEN – LINT. ALPHA W/FELT
31	W10673491 Whirlpool Bulkhead Assembly
32	ASSEMBLY, DRUM LIGHT
33	W11257251 Whirlpool Shield
34	WPW10211896 Whirlpool Duct Lint
35	W11676493 Whirlpool Seal Assembly
36	W10414388 Whirlpool Clip
37	WP697770 Whirlpool Blower Cover Plate Seal
38	W10211899 Whirlpool Seal
39	W10211901 Whirlpool Cover Assembly
40	WP697772 Whirlpool Dryer Blower Wheel
41	WPW10211911 Whirlpool Housing
42	FUSE-THRML
43	WP8577274 Whirlpool Dryer Thermistor
44	WP693995 Whirlpool Screw
45	WPW10342188 Whirlpool Exhaust Pipe
46	WPW10344699 Whirlpool Collar
47	WP8573824 Whirlpool Funnel
48	WP8573713 Whirlpool Thermal Fuse
49	THRMST-FIX
50	WP338906 Whirlpool Dryer Gas Sensor
51	W10525140 Whirlpool Wire Harness
52	W11396709 Whirlpool Gas Inlet Thermostat
53	W10708958 Whirlpool Wire Harness
