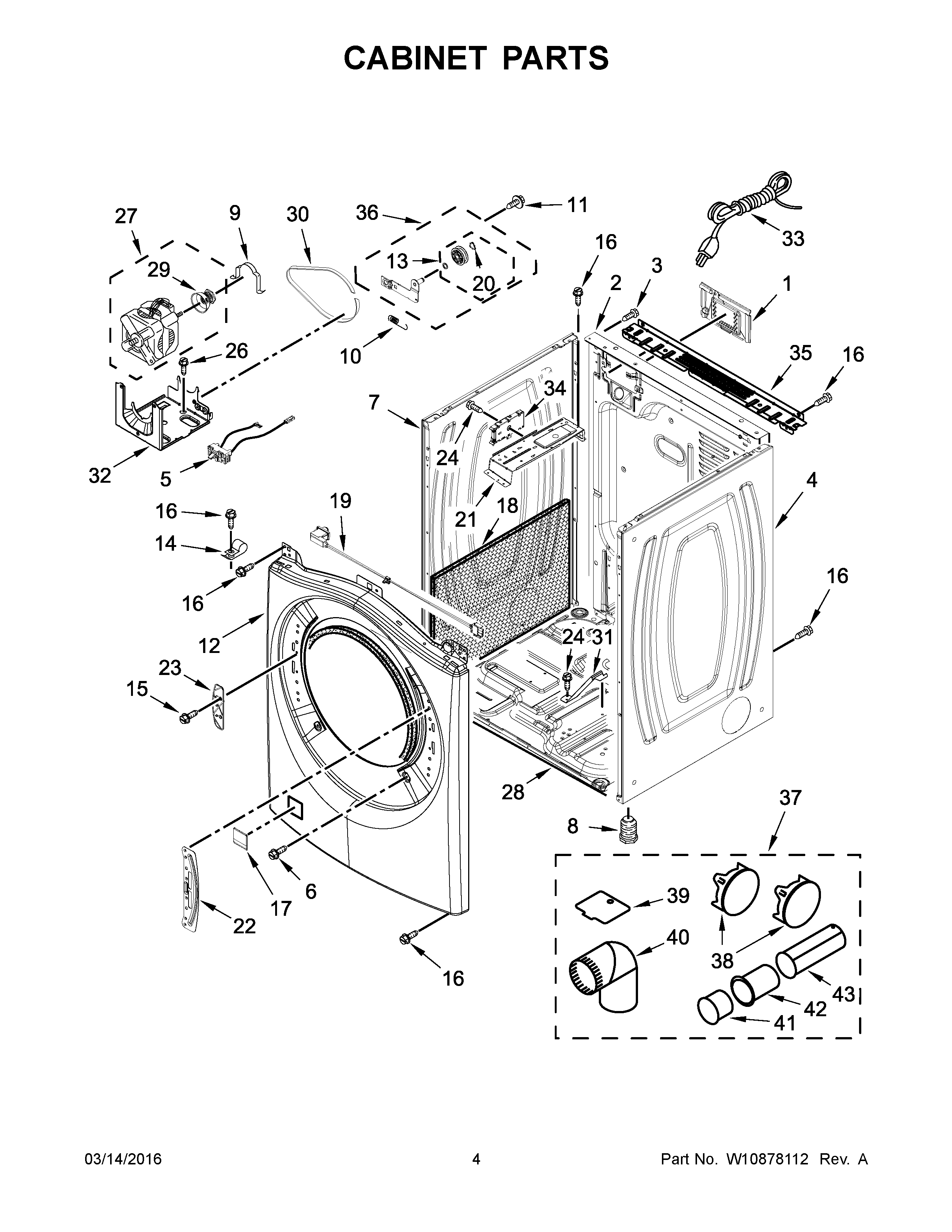

7MWGD90HEFW0 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	W10819767 Whirlpool Cover
2	W10487430 Whirlpool Rear Panel
3	W10850756 Whirlpool Screw
4A	W11321018 Whirlpool Panel
4	W11310043 Whirlpool Panel
5	W11662087 Whirlpool Dryer Switch
6	WP308685 Whirlpool Microwave Screw
7A	W11315726 Whirlpool Panel Assembly
7	W11233548 Whirlpool Panel
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10363953 Whirlpool Dishwasher Panel
12A	WPW10463309 Whirlpool Dishwasher Panel
13	279640 Whirlpool Dryer Idler Pulley Kit
14	3978776 Whirlpool Bracket
15	SCREW
16	WP488729 Whirlpool Refrigerator Door Screw
17	W10811916 Whirlpool Plug
17A	W10391496 Whirlpool Plug
18	W10123956 Whirlpool Sound Absorber
19	WPW10350906 Whirlpool Door Switch
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	BRACKET, CONTROL
22	BRACKET, DOOR HINGE
23	WPW10208250 Whirlpool Strike
24	WP693995 Whirlpool Screw
25	WP3387242 Whirlpool Seal
26	SCREW
27	MOTOR-DRVE
28	W11215531 Whirlpool Base
29	WP8066184 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10181903 Whirlpool Bracket
32	W11481730 Whirlpool Bracket
33	W11628810 Whirlpool Power Cord
34	W11537215-includeCORE Whirlpool W11537215 Control Board + Core
35	WPW10208382 Whirlpool Dryer Bracket
36	W10837240 Whirlpool Dryer Idler Pulley
37	W10323246 Whirlpool Dryer Vent Kit 4-Way
38	WPW10404617 Whirlpool Plug Assembly
39	WPW10354249 Whirlpool Cover
40	WPW10416072 Whirlpool Elbow
41	WPW10331278 Whirlpool Exhaust Pipe
42	WP8563747 Whirlpool Exhaust Pipe
43	WP8563749 Whirlpool Exhaust Pipe
