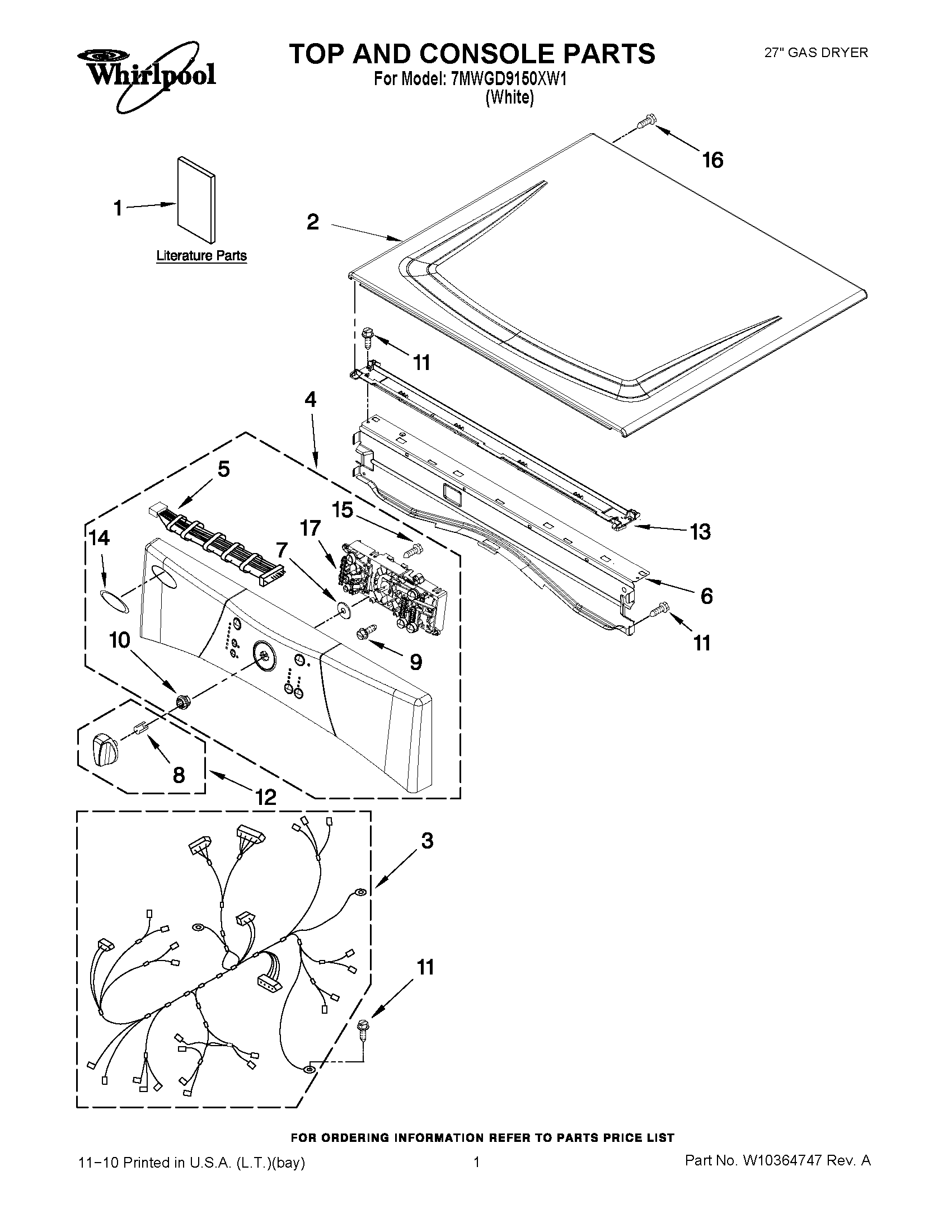

7MWGD9150XW1 01 – TOP AND CONSOLE PARTS

7MWGD9150XW1 01 – TOP AND CONSOLE PARTS

Written by

in

7MWGD9150XW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1TECH SHEET
2WPW10336080 Whirlpool Top Assembly
3W10251443 Whirlpool Wire Harness
4PANEL, CONSOLE
5W10259049 Whirlpool Wire Harness
6WP8565237 Whirlpool Bracket Assembly
7SEAL, USER INTERFACE
8W10153920 Whirlpool Clip
9W10006580 Whirlpool Screw
10BUSHING, SHAFT KNOB
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10236098 Whirlpool Knob Assembly
13WPW10266747 Whirlpool Channel
14Medallion
16Screw, 2-28 x 1/2
17ASSEMBLY, USER INTERFACE
