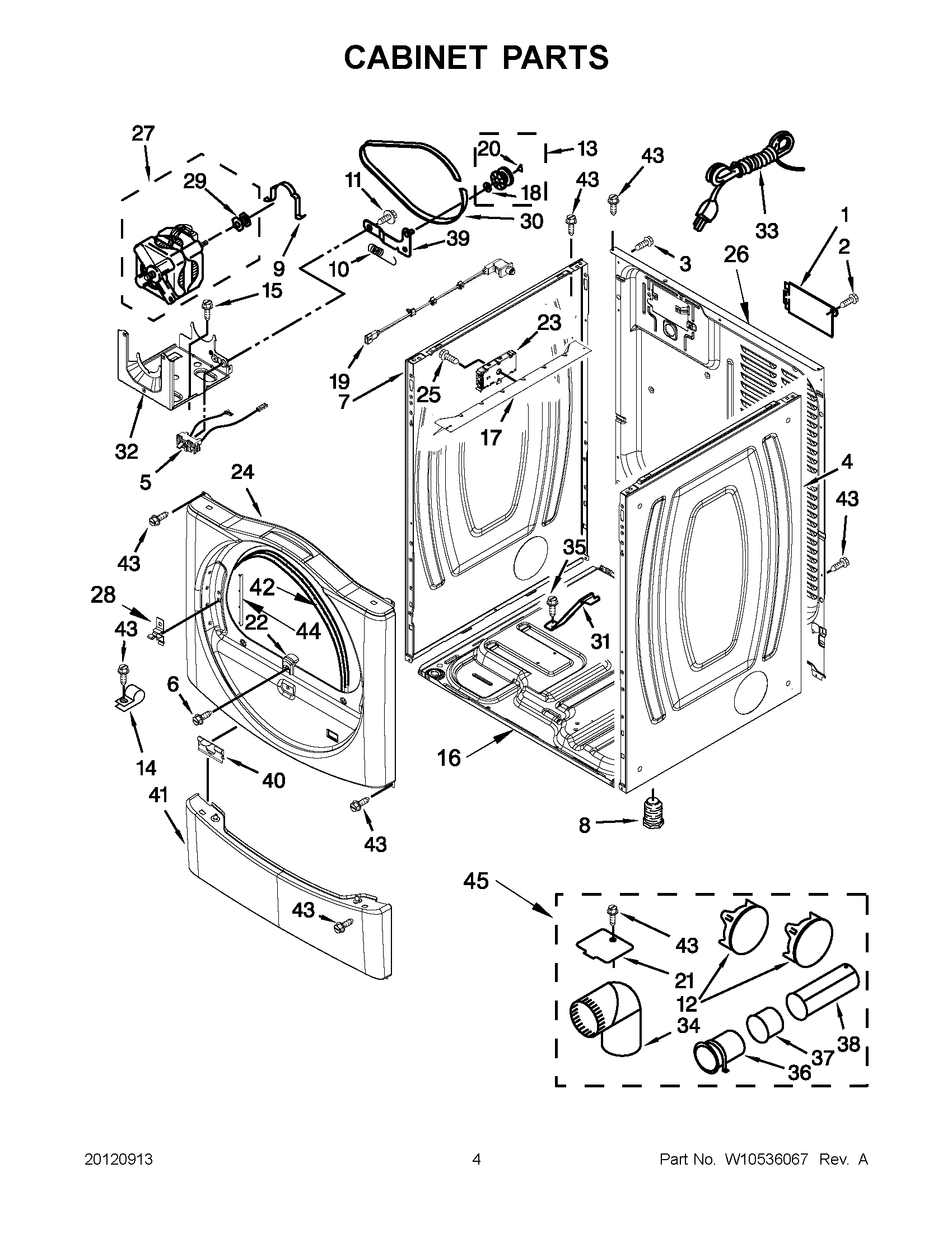

7MWGD9150XW2 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
2	WP3390631 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	W10542714 Whirlpool Panel
5	W10847984 Whirlpool Switch
6	WP308685 Whirlpool Microwave Screw
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	279640 Whirlpool Dryer Idler Pulley Kit
14	3978776 Whirlpool Bracket
15	SCREW
16	W11215531 Whirlpool Base
17	WP8563727 Whirlpool Bracket
18	WPW10121334 Whirlpool Washer
19	W10318609 Whirlpool Dryer Door Switch
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	W10819767 Whirlpool Cover
22	8580015 Whirlpool Ramp
23	WPW10450081-includeCORE Whirlpool WPW10450081 Washer Electronic Control Board + Core
24	WPL 8580257
25	WP90767 Whirlpool Screw
26	Panel, Rear
27	279787 Whirlpool Dryer Drive Motor
28	WP8565122 Whirlpool Strike Assembly
29	W10837625 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10181903 Whirlpool Bracket
32	W11481730 Whirlpool Bracket
33	W11222083 Whirlpool Power Cord
34	WPW10416072 Whirlpool Elbow
35	WP693995 Whirlpool Screw
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	W10837240 Whirlpool Dryer Idler Pulley
40	W11295573 Whirlpool Clip
41	WP8540621 Whirlpool Toe Panel
42	WP3387242 Whirlpool Seal
43	WP488729 Whirlpool Refrigerator Door Screw
44	W10085210 Whirlpool Label
45	W10331132 Whirlpool Plug
