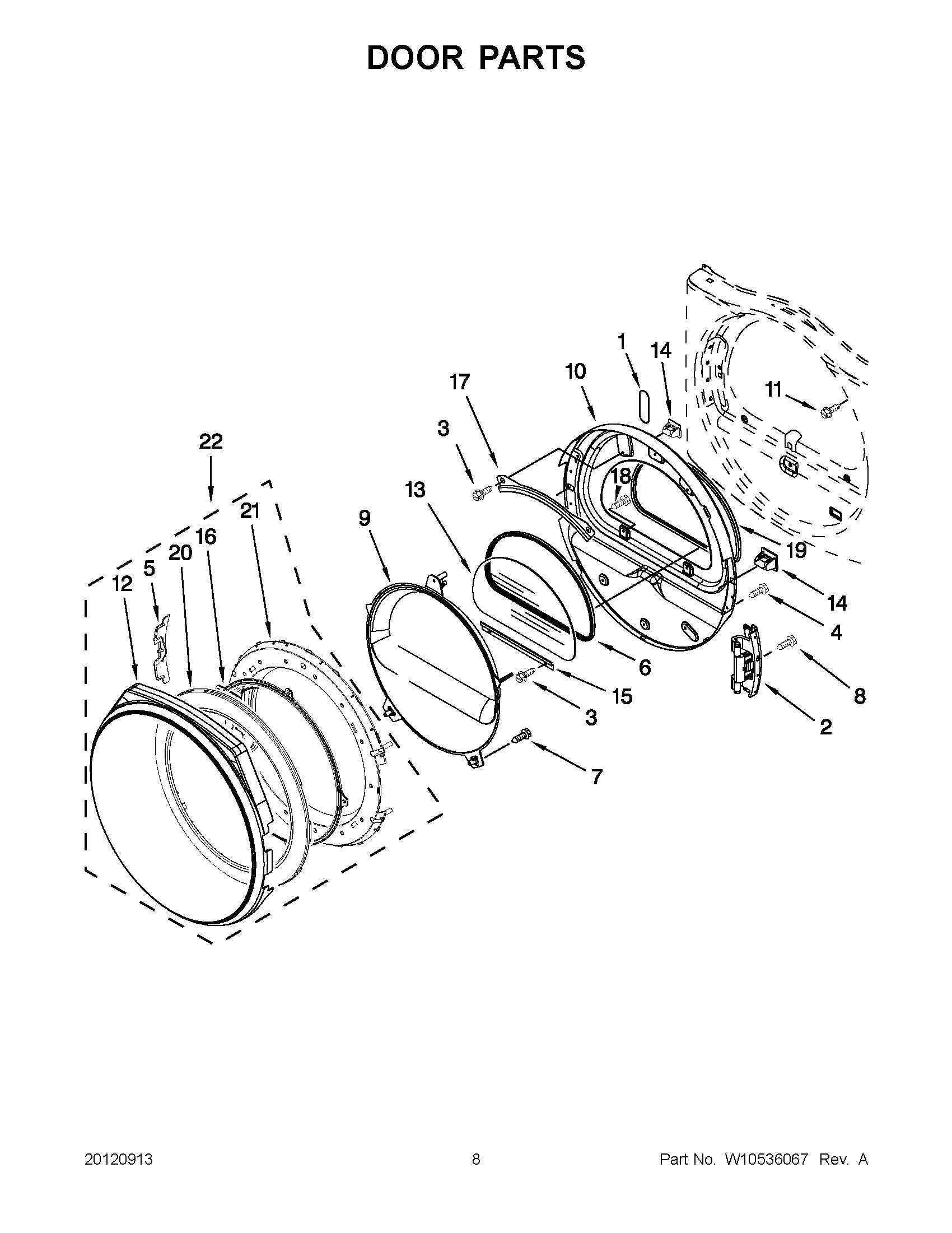

7MWGD9150XW2 04 – DOOR PARTS

7MWGD9150XW2 04 – DOOR PARTS

Written by

in

7MWGD9150XW2 04 – DOOR PARTS

Products

PositionProduct
1WPW10256915 Whirlpool Label
2ASSEMBLY, DOOR HINGE
3WP3373329 Whirlpool Dishwasher Screw
4W11116979 Whirlpool Screw
5COVER, HINGE (WHITE)
6W11706993 Whirlpool Seal
7WP308685 Whirlpool Microwave Screw
8WPW10159996 Whirlpool Screw
9SCREEN, DOOR
10W11690171 Whirlpool Door Assembly
11WP355515 Whirlpool Screw
12TRIM, DOOR RING OUTER (WHITE)
13WPW10286878 Whirlpool Window
14279570 Whirlpool Dryer Door Latch Kit
15W10822054 Whirlpool Retainer
16DOOR, INTERMEDIATE ROTATIONAL
178519356 Whirlpool Retainer
18SCREW
19WPW10163915 Whirlpool Door Seal
20TRIM-DOOR INNER RING (NOT SERVICEABLE SEPARATELY, ORDER ITEM. 22)
21DOOR, INTERMEDIATE STATIONARY
22DOOR, OUTER (WHITE)
