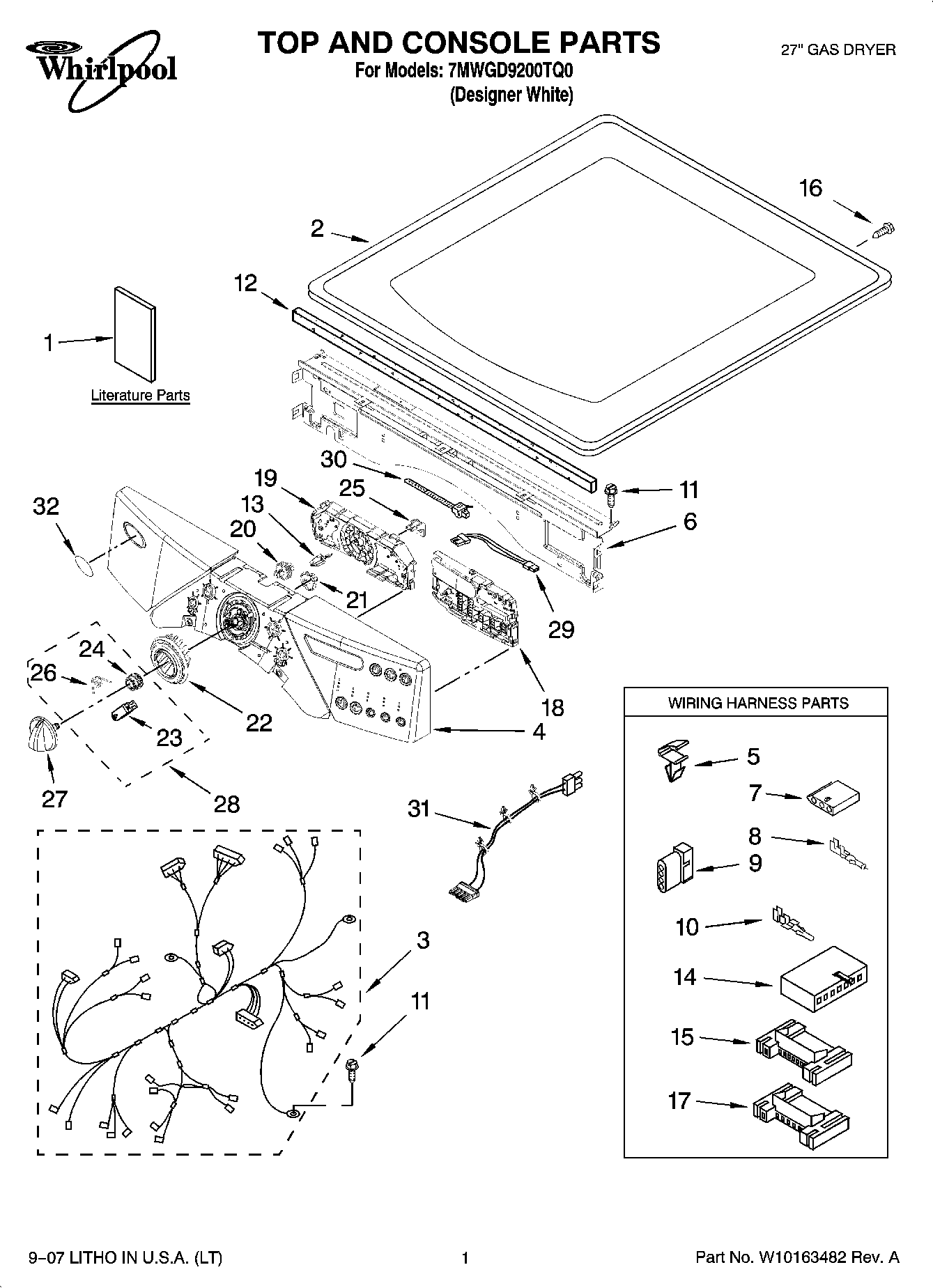

7MWGD9200TQ0 01 – TOP AND CONSOLE PARTS

7MWGD9200TQ0 01 – TOP AND CONSOLE PARTS

Written by

in

7MWGD9200TQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Tech Sheet
1Use & Care Guide
1Guide, Quick Start
2Top (White)
3Harness, Main
4Panel, Console (Includes Items: 20,21,22,27,28)
5WP3394427 Whirlpool Clip
6Bracket, Console (Includes No.12)
7353424 Whirlpool Connector
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
10WP596797 Whirlpool Terminal
12W10112267 Whirlpool Seal Assembly
13W10012480 Whirlpool WP Dishwasher Encoder Adapt Wheel
143936150 Whirlpool Connector
153395683 Whirlpool Connector
16WP488729 Whirlpool Refrigerator Door Screw
172203186 Whirlpool Connector
18USER INTERFACE (RIGHT)
19USER INTERFACE (CENTER)
20Encoder-Wheel
21Retainer-Snap
22KNOB, LIGHT RING (INCLUDES: ITEM 21)
23Rast, Wheel Assy. (Service Only With Item. 28)
24DETENT WHEEL
25W10112268 Whirlpool Clip
26Knob, Spring (Service Only With Item 28)
27KNOB, CONTROL
28Encoder, Wheel Kit (Includes Items: 23, 24, & 26
29Harness, Communication
30WP3391018 Whirlpool Wire Tie
31WPL W10110976
32Medallion
