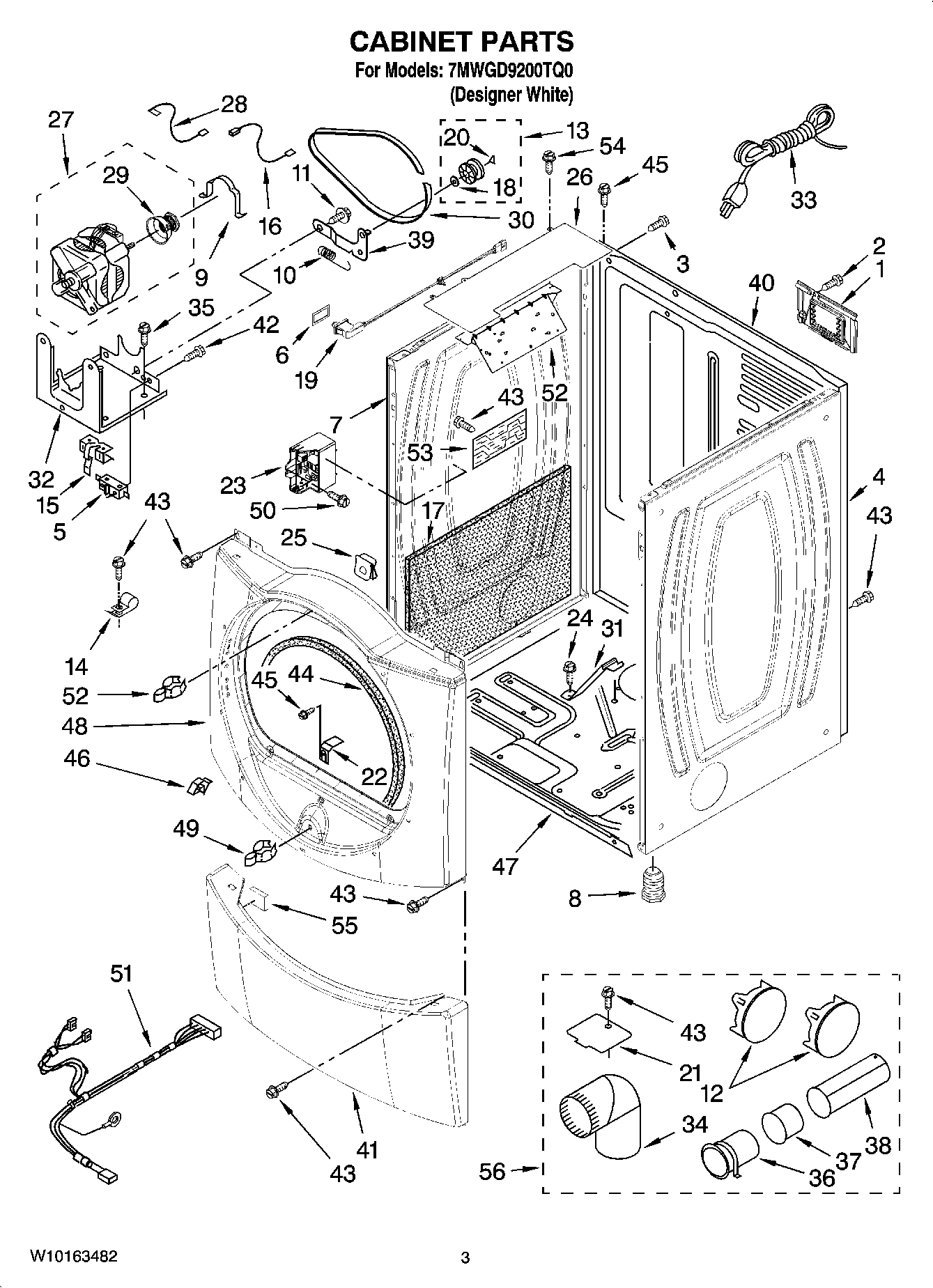

7MWGD9200TQ0 02 – CABINET PARTS

7MWGD9200TQ0 02 – CABINET PARTS

Written by

in

7MWGD9200TQ0 02 – CABINET PARTS

Products

PositionProduct
1W10819767 Whirlpool Cover
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
4Panel, Side (R.H.) (White)
5279782 Whirlpool Lid Switch
6Seal, Door Switch
7Panel, Side (L.H.) (White)
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
13279640 Whirlpool Dryer Idler Pulley Kit
143978776 Whirlpool Bracket
15WP8066120 Whirlpool Lever Assembly
16Wire, Belt Switch
17Sound Panel
18WPW10121334 Whirlpool Washer
19Assembly, Door Switch
21WPW10354249 Whirlpool Cover
22Ramp, Door
23Power Cube
24WP693995 Whirlpool Screw
25Clip, Mounting (2)
26Cover, Control Bracket
27279787 Whirlpool Dryer Drive Motor
283398948 Whirlpool Wire
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31W10181903 Whirlpool Bracket
32WP3387118 Whirlpool Base Assembly
33W11628810 Whirlpool Power Cord
34WPW10416072 Whirlpool Elbow
35SCREW
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
40WPL W10133207
41Toe, Panel
42WP98129 Whirlpool Screw
43WP488729 Whirlpool Refrigerator Door Screw
44WP3387242 Whirlpool Seal
45WP308685 Whirlpool Microwave Screw
46W11295573 Whirlpool Clip
47Base, Cabinet
48WPL 8578388
49279570 Whirlpool Dryer Door Latch Kit
51W10181464 Whirlpool Wire Harness
52WP8563727 Whirlpool Bracket
53Control Board
54Screw, 8-18 x 1/2
553389682 Whirlpool Spacer
55Opt
56W10470674 Whirlpool Dryer Side Vent Exhaust Kit
