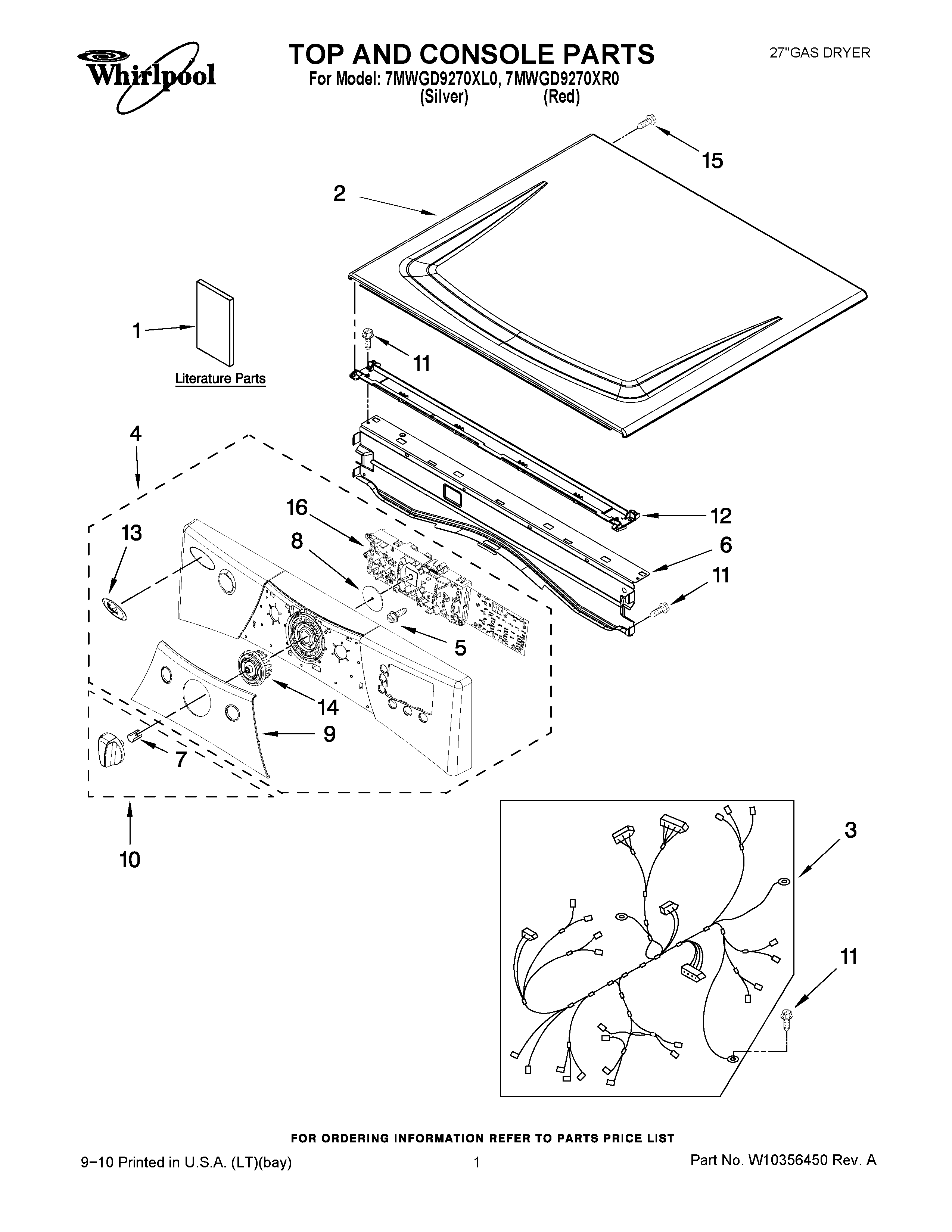

7MWGD9270XR0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1TECH SHEET
2WPW10336091 Whirlpool Top
2TOP (MAGNA RED)
3W10278758 Whirlpool Wire Harness
4WPW10215463 Whirlpool Console Assembly
4PANEL, CONSOLE (SILVER)
5W10006580 Whirlpool Screw
6WP8565237 Whirlpool Bracket Assembly
7W10153920 Whirlpool Clip
8SEAL, USER INTERFACE
9COVER-CENTER (SILVER)
9COVER, CENTER (RED)
10WPW10247262 Whirlpool Knob
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10266747 Whirlpool Channel
13Medallion
14W10237301 Whirlpool Ring
15Screw, 2-28 x 1/2
16ASSEMBLY, USER INTERFACE
