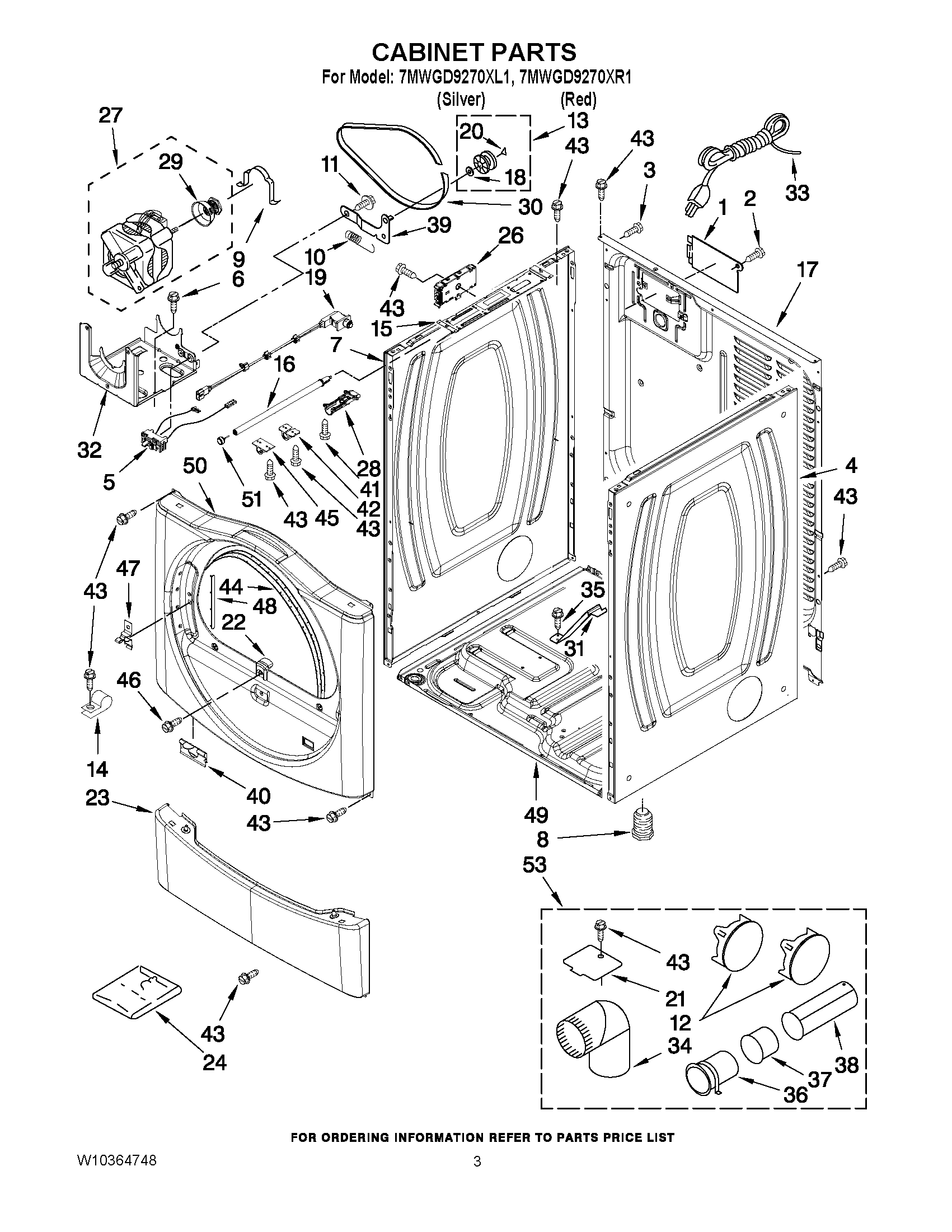

7MWGD9270XR1 02 – CABINET PARTS

7MWGD9270XR1 02 – CABINET PARTS

Written by

in

7MWGD9270XR1 02 – CABINET PARTS

Products

PositionProduct
NIW10331132 Whirlpool Plug
1W10819767 Whirlpool Cover
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
4PANEL, SIDE (R.H.) (RED)
5WPW10411937 Whirlpool Switch
6SCREW
7W10542715 Whirlpool Panel
7PANEL, SIDE (L.H.) (RED)
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
143978776 Whirlpool Bracket
15BRACKET, CONTROL POGO
16POGO BAR ASSEMBLY
17PANEL, REAR
19W10318609 Whirlpool Dryer Door Switch
20WPW10121334 Whirlpool Washer
21WPW10354249 Whirlpool Cover
228580015 Whirlpool Ramp
23PANEL, TOE (RED)
23W10251210 Whirlpool Toe Panel
248572546 Whirlpool Washer Duet Sport Epic Stack Kit
26WPW10405846-includeCORE Whirlpool WPW10405846 Refrigerator Electronic Control Board + Core
27279787 Whirlpool Dryer Drive Motor
28HOUSING ASSEMBLY
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31W10181903 Whirlpool Bracket
32W11481730 Whirlpool Bracket
33W11628810 Whirlpool Power Cord
34WPW10416072 Whirlpool Elbow
35WP693995 Whirlpool Screw
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
40W11295573 Whirlpool Clip
41WP489069 Whirlpool Compactor Screw
42BUSHING-SLEEVE (STOP)
43WP488729 Whirlpool Refrigerator Door Screw
44WP3387242 Whirlpool Seal
45BUSHING-SLEEVE (REAR)
46WP308685 Whirlpool Microwave Screw
47WP8565122 Whirlpool Strike Assembly
48WPW10085230 Whirlpool Label Assembly
49W11215531 Whirlpool Base
50WPL W10251203
50WPL W10251204
51END CAP
