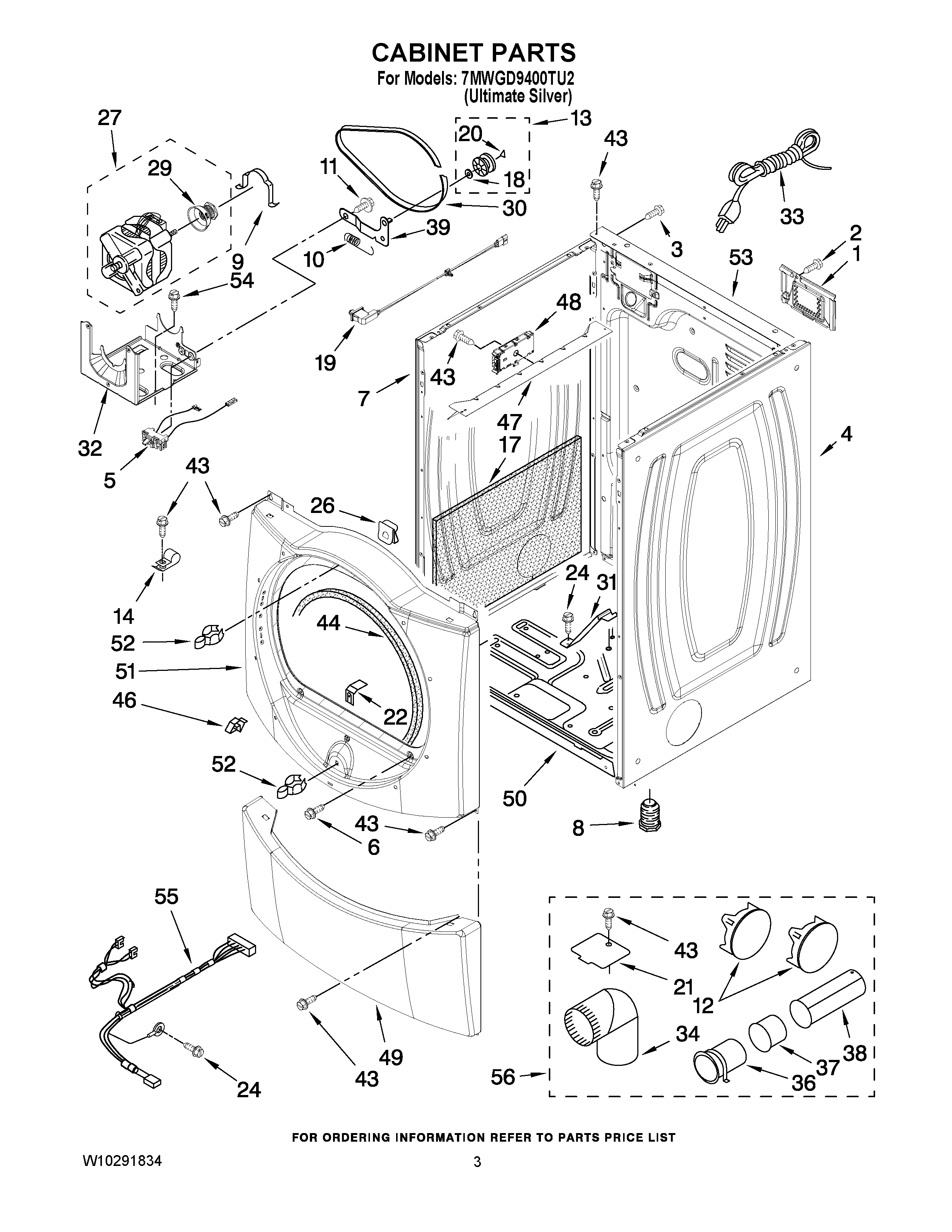

7MWGD9400TU2 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	W10819767 Whirlpool Cover
2	WP90767 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	Panel, Side (R.H.)
5	WPW10411937 Whirlpool Switch
6	WP308685 Whirlpool Microwave Screw
7	Panel, Side (L.H.)
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	279640 Whirlpool Dryer Idler Pulley Kit
14	3978776 Whirlpool Bracket
17	W10123956 Whirlpool Sound Absorber
18	WPW10121334 Whirlpool Washer
19	W10128087 Whirlpool Door Switch
21	WPW10354249 Whirlpool Cover
22	Ramp, Door
24	WP693995 Whirlpool Screw
26	Clip, Mounting (2)
27	279787 Whirlpool Dryer Drive Motor
29	W10837625 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10181903 Whirlpool Bracket
32	W11481730 Whirlpool Bracket
33	W11628810 Whirlpool Power Cord
34	WPW10416072 Whirlpool Elbow
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	W10837240 Whirlpool Dryer Idler Pulley
43	WP488729 Whirlpool Refrigerator Door Screw
44	WP3387242 Whirlpool Seal
46	W11295573 Whirlpool Clip
47	WP8563727 Whirlpool Bracket
48	CONTROL BOARD
49	PANEL, TOE
50	BASE, CABINET
51	WPL W10180429
52	279570 Whirlpool Dryer Door Latch Kit
53	PANEL, REAR
54	SCREW
55	HARNESS, DIGITAL INTERFACE
56	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
