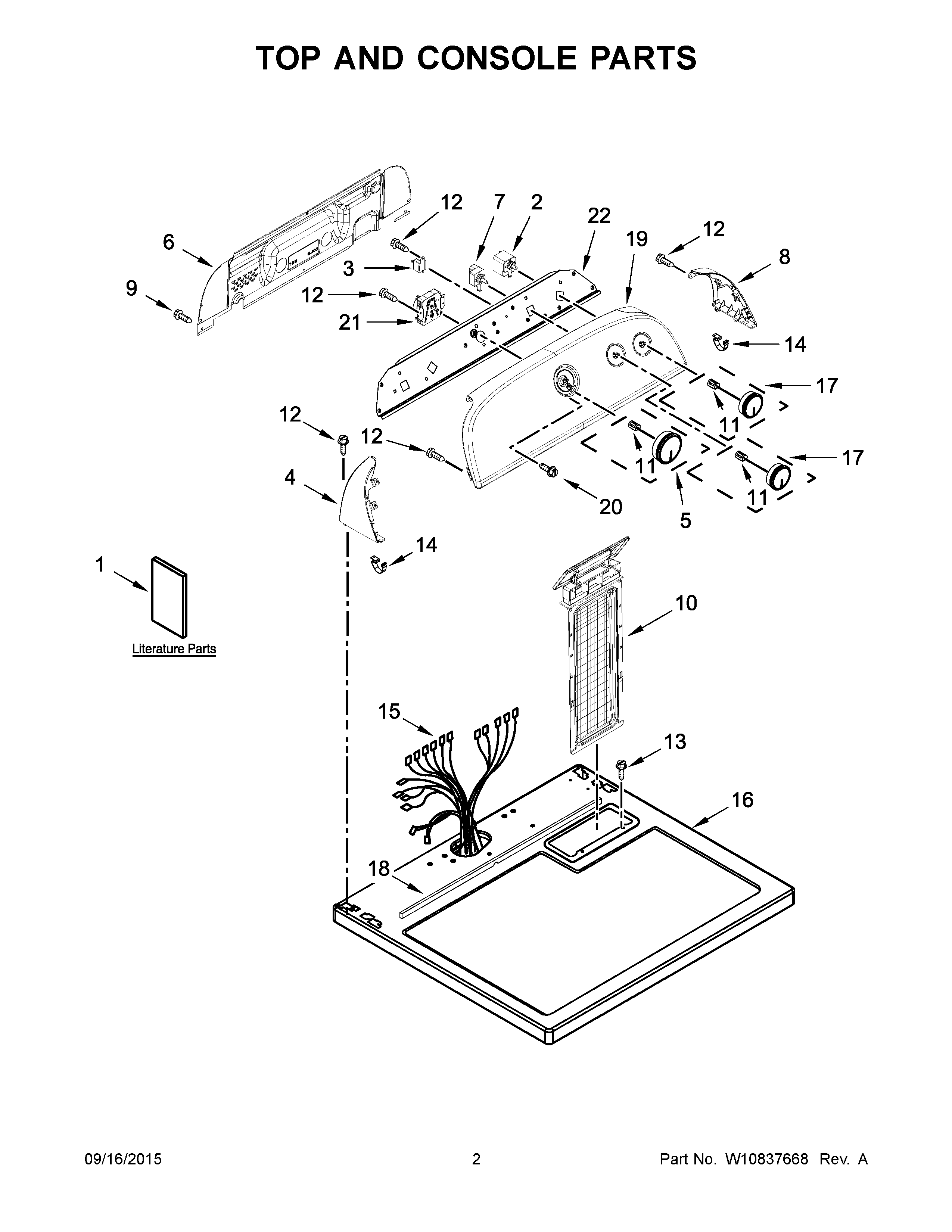

7MWGD9919EM0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	WIRING DIAGRAM
1	INSTALLATION INSTRUCTIONS
1A	USE AND CARE GUIDE
2	WPW10117655 Whirlpool Dryer Start Switch
3	WP694419 Whirlpool Buzzer Adjuster
4	WPW10520782 Whirlpool Panel
5	WPW10576635 Whirlpool Knob Assembly
6	W10556829 Whirlpool Rear Panel
7	WP3399640 Whirlpool Switch
8	WPW10520780 Whirlpool Panel
9	WP693995 Whirlpool Screw
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	WP8312709 Whirlpool Endcap Clip
15	W10640701 Whirlpool Wire Harness
16	WP8563663 Whirlpool Top Assembly
17	WPW10576637 Whirlpool Knob
18	W10316616 Whirlpool Seal
19	CONSOLE (WHITE)
20	WP3400818 Whirlpool Screw
21	WPW10185981 Whirlpool Timer
22	BRACKET, CONTROL
