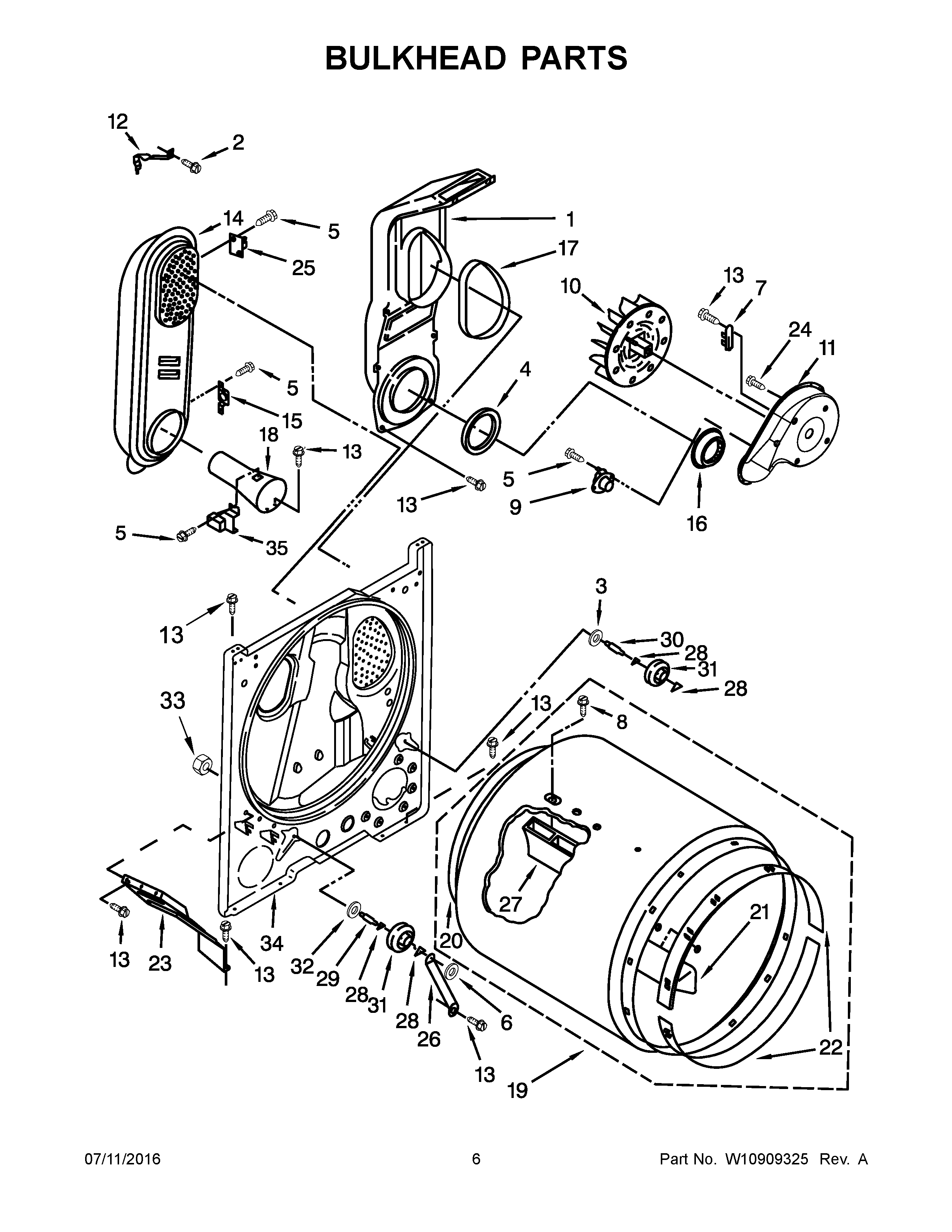

7MWGD9919EM1 04 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	WP489463 Whirlpool Refrigerator Screw
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	WP90296 Whirlpool Clip
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	W10853898 Whirlpool Screw
9	WP3387134 Whirlpool Dryer Cycling Thermostat
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	WP3390631 Whirlpool Screw
14	279980 Whirlpool Box
15	W11050897 Whirlpool Dryer High Limit Thermostat
16	W11233063 Whirlpool Shield Assembly
17	SEAL
18	WP8066049 Whirlpool Funnel Assembly
19	W10899578 Whirlpool Dryer Drum Assembly
20	W10612022 Whirlpool Felt Seal
21	WP3403636 Whirlpool Drum Baffle
22	279441 Whirlpool Front Bearing Ring
23	W11398682 Whirlpool Bracket
24	WP488729 Whirlpool Refrigerator Door Screw
26	W11684613 Whirlpool Bracket
27	BAFFLE-DRM
28	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
29	SHAFT SUPPORT ROLLER DRYER
30	SHAFT SUPPORT ROLLER DRYER
31	349241T Whirlpool Dryer Drum Support Roller Kit
32	WP348197 Whirlpool Washer Assembly
33	W11229607 Whirlpool Nut
34	W11178668 Whirlpool Bulkhead
35	WP338906 Whirlpool Dryer Gas Sensor
