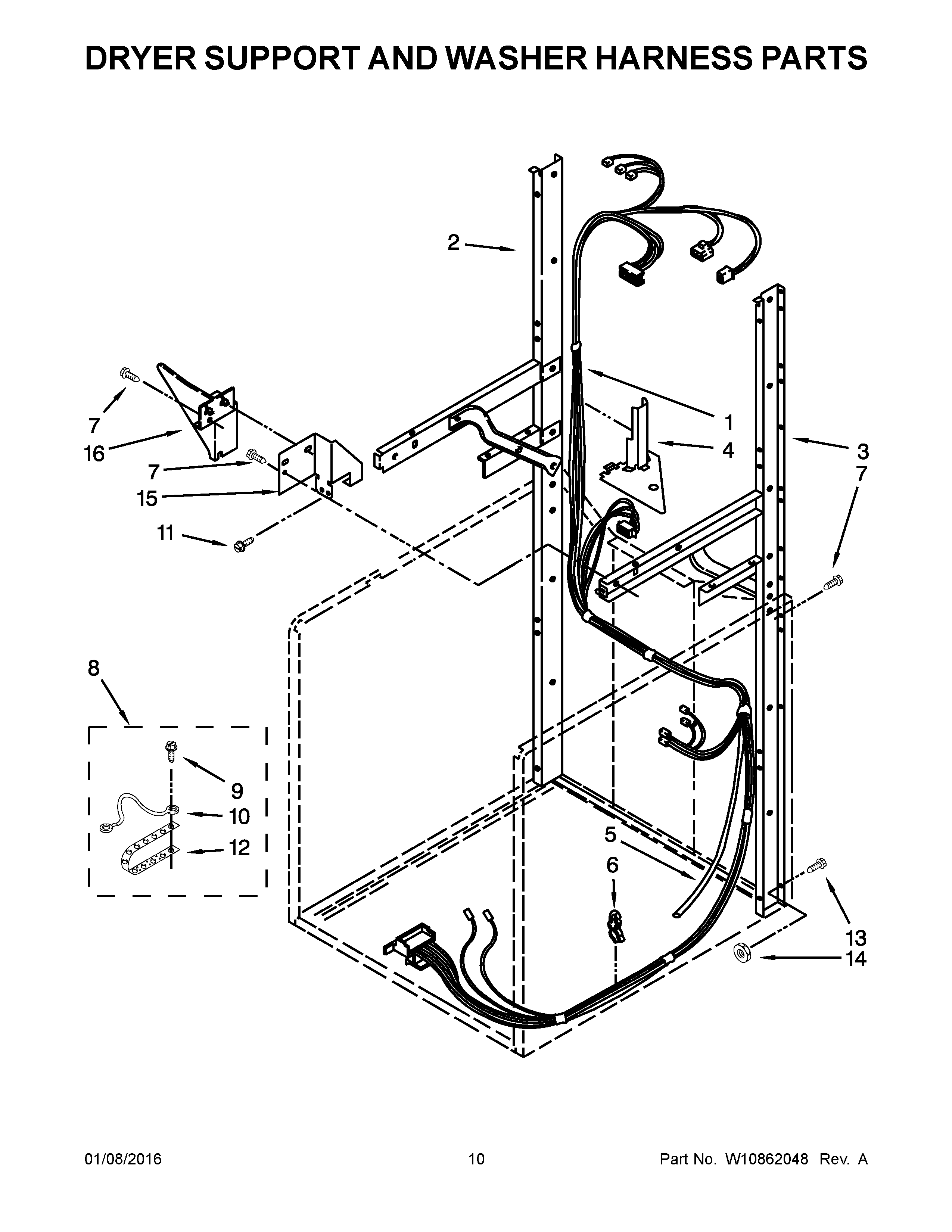

7MWGT3300EQ0 06 – DRYER SUPPORT AND WASHER HARNESS PARTS

7MWGT3300EQ0 06 – DRYER SUPPORT AND WASHER HARNESS PARTS

Written by

in

7MWGT3300EQ0 06 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

PositionProduct
1W10545604 Whirlpool Wire Harness
23388851 Whirlpool Support
33388850 Whirlpool Support
43390609 Whirlpool Shield
5W10834213 Whirlpool Hose
6W10210799 Whirlpool Clip
7SCREW
8KIT, GROUNDING
9WP90767 Whirlpool Screw
10WPL 685449
11WP308685 Whirlpool Microwave Screw
12Strap, Ground
13Bolt, 5/16-18 x 1/2
14WP8533952 Whirlpool Refrigerator Nut
153392232 Whirlpool Shield
16SHIELD, THERMOSTAT
