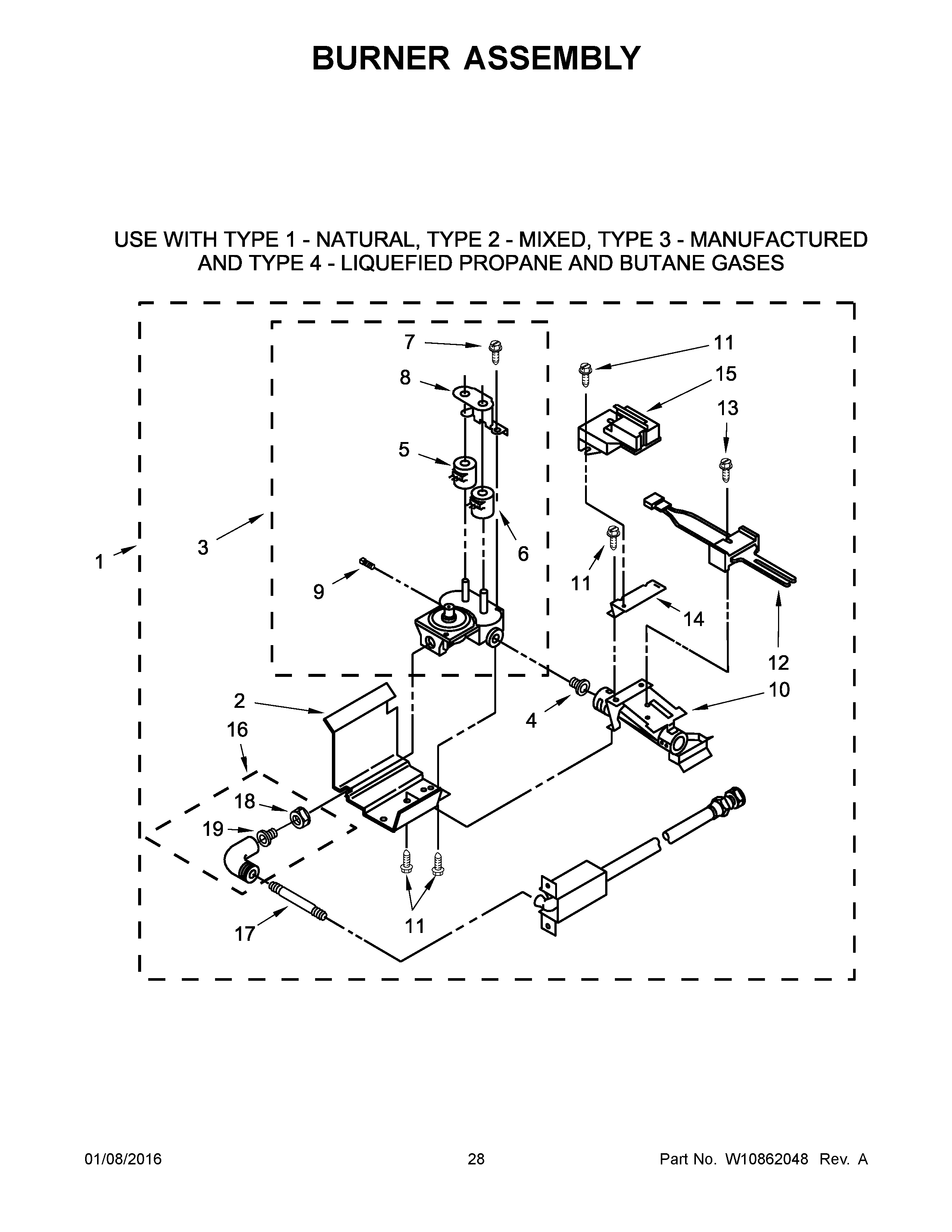

7MWGT3300EQ0 15 – BURNER ASSEMBLY

Products

Position	Product
NI	3392235A Whirlpool Gas Conversion Kit
NI	CABINET (NOT A SERVICEABLE PART)
1	BURNER ASSEMBLY (COMPLETE) (60 HZ.)
2	3391699 Whirlpool Base
3	279889 Whirlpool Valve Assembly
4	ORIFICE, NATURAL GAS
4A	ORIFICE, BURNER (TYPE 4 (BUTANE))
5	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
7	694421 Whirlpool Screw Assembly
8	694538 Whirlpool Bracket
9	W10295523 Whirlpool Plug
10	8578392 Whirlpool Burner
11	WP693995 Whirlpool Screw
12	279311 Whirlpool Dryer Flat Igniter with Bracket
13	WPW10366705 Whirlpool Screw
14	Bracket, Sensor
15	WP338906 Whirlpool Dryer Gas Sensor
16	3406051 Whirlpool Elbow
17	PIPE, SUPPLY
18	Nut, Compression
19	3393767 Whirlpool Pipe
