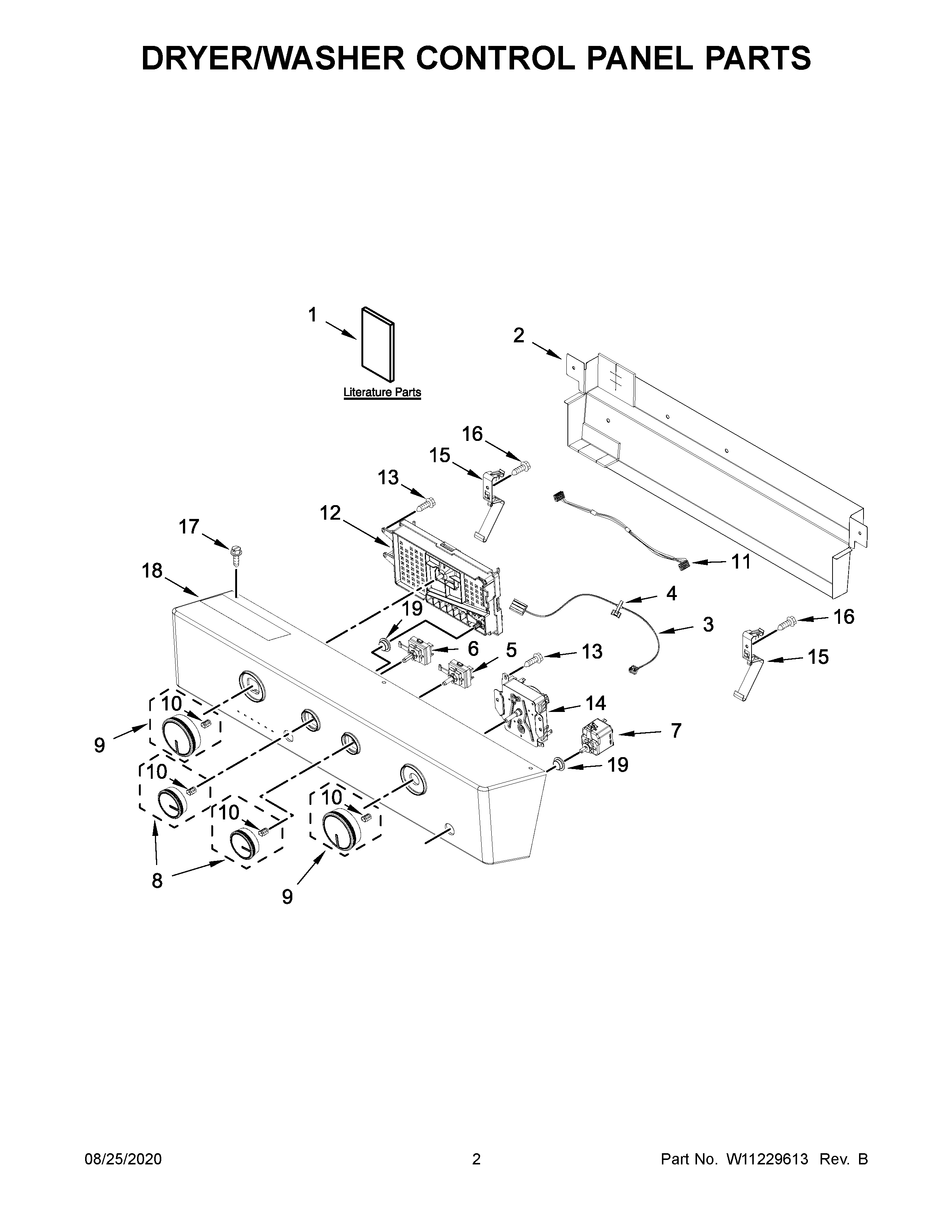

7MWGT4027HW0 02 – DRYER/WASHER CONTROL PANEL PARTS

Products

Position	Product
1B	QUICK START GUIDE
1D	WIRING DIAGRAM
1	USE AND CARE GUIDE
1C	TECH SHEET
1E	ENERGY GUIDE
1A	INSTALLATION INSTRUCTIONS
2	W11040441 Whirlpool Bracket
3	W11028056 Whirlpool Wire Harness
4	W10210799 Whirlpool Clip
5	W10859568 Whirlpool Cycle Switch
6	W11168256 Whirlpool Cycle Switch
7	WPW10420741 Whirlpool Dryer Start Switch
9	W10756270 Whirlpool Dryer Timer Knob
10	WP688805 Whirlpool Spring Clip
11	W10694669 Whirlpool Wire Harness
12	W11661765-includeCORE Whirlpool Electronic Control+Core
13	WP90767 Whirlpool Screw
14	W10854240 Whirlpool Laundry Center Dryer Timer
15	3389453 Whirlpool Hinge Assembly
16	WP9740848 Whirlpool Dishwasher Screw
17	W11590579 Whirlpool Screw
18	W11224725 Whirlpool Control Panel
19	W11049351 Whirlpool Button
