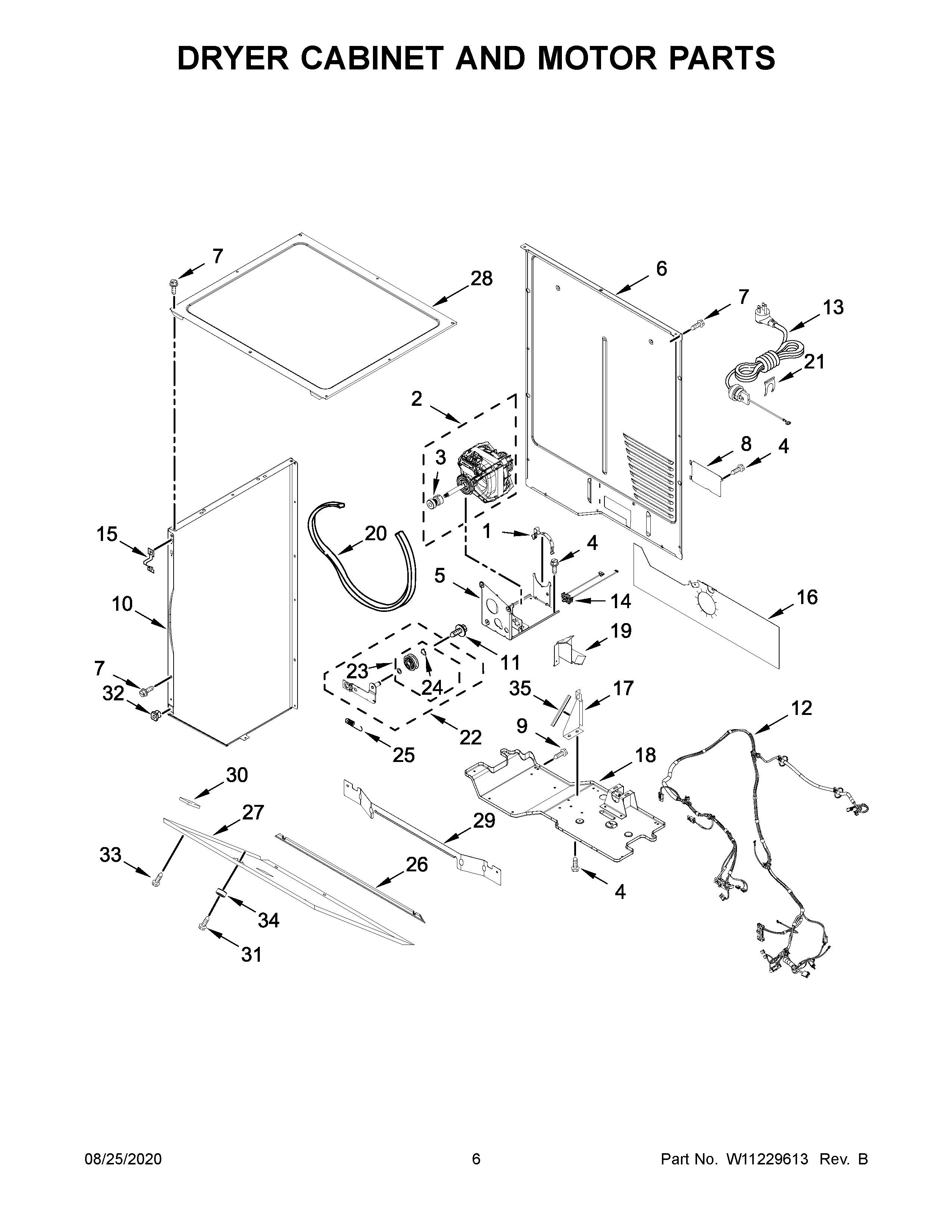

7MWGT4027HW0 04 – DRYER CABINET AND MOTOR PARTS

Products

PositionProduct
1CLAMP
3279811 Whirlpool Dryer Drive Motor
4WP3390631 Whirlpool Screw
5W11107903 Whirlpool Bracket
6W10892491 Whirlpool Rear Panel
7SCREW
8BRACKET, TERMINAL BLOCK
9W10850756 Whirlpool Screw
10APANEL, SIDE (WHITE (RIGHT HAND))
10W11043388 Whirlpool Panel
11WP3389420 Whirlpool Screw
12W11177745 Whirlpool Wire Harness Assembly
13WPW10581952 Whirlpool Power Cord
14WPW10411937 Whirlpool Switch
153389231 Whirlpool Clip Front Panel
16PANEL, BACK ASSEMBLY
17BRACKET, BULKHEAD
18BASE, DRYER
19BRACKET, ROLLER ASSEMBLY
20661570V Whirlpool Dryer Drum Belt
21W11712577 Whirlpool Clip
22WPW10547294 Whirlpool Idler Pulley
23279640 Whirlpool Dryer Idler Pulley Kit
24WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
25WPW10446781 Whirlpool Spring
26COVER, TRANSITION PANEL (WHITE)
273389272 Whirlpool Panel
28TOP, DRYER (ASSEMBLY)
29BRACKET
303389682 Whirlpool Spacer
318281191 Whirlpool Oven Screw
32WP692400 Whirlpool Nut
33WP693304 Whirlpool Screw
34W11028744 Whirlpool Latch
35Edge Protector
