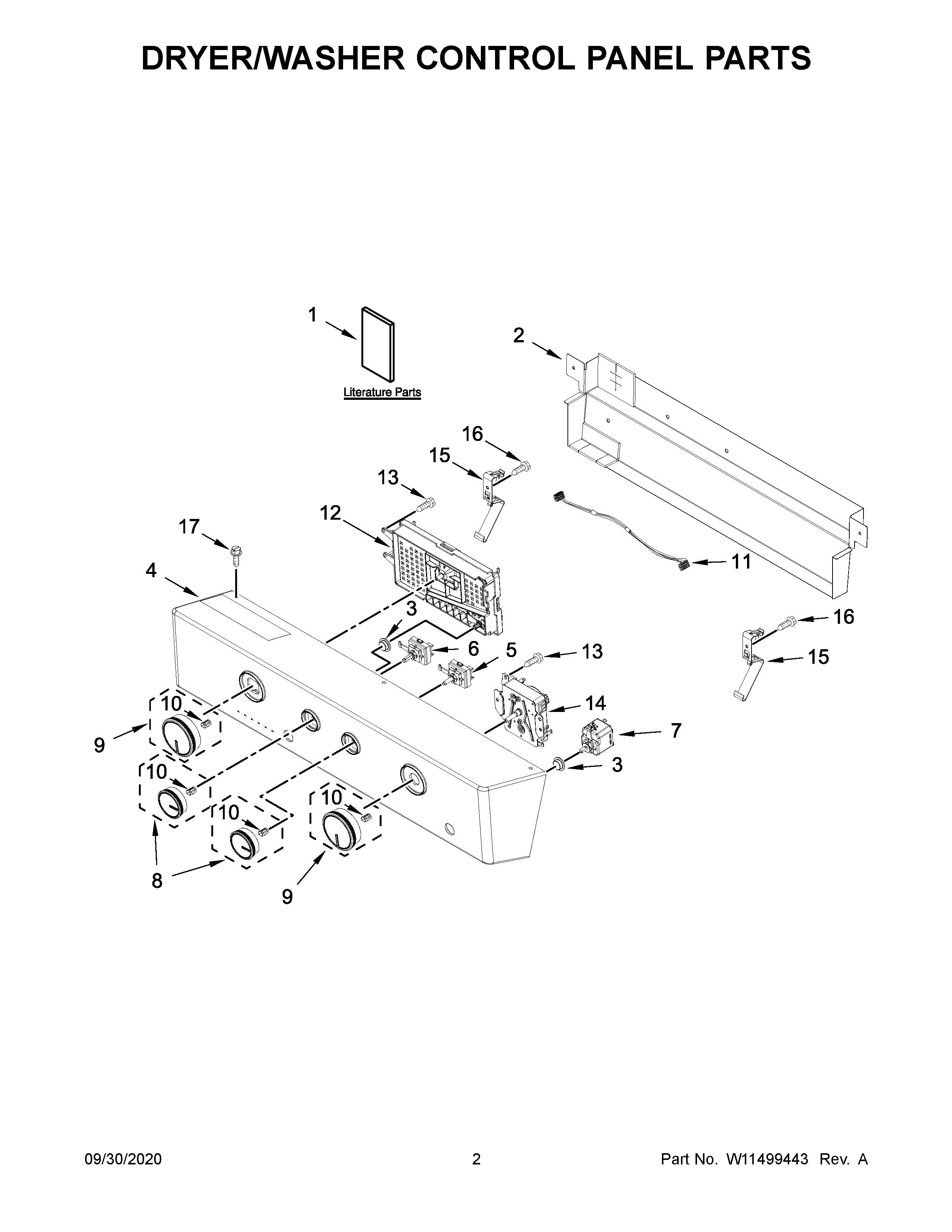

7MWGT4027HW1 02 – DRYER/WASHER CONTROL PANEL PARTS

Products

Position	Product
1	USE AND CARE GUIDE
1D	INSTALLATION INSTRUCTIONS
1C	ENERGY GUIDE
1B	WIRING DIAGRAM
1A	TECH SHEET
2	W11040441 Whirlpool Bracket
3	W11049351 Whirlpool Button
4	CONSOLE
5	W10859568 Whirlpool Cycle Switch
6	W11168256 Whirlpool Cycle Switch
7	WPW10420741 Whirlpool Dryer Start Switch
9	W10756270 Whirlpool Dryer Timer Knob
10	WP688805 Whirlpool Spring Clip
11	W10694669 Whirlpool Wire Harness
12	W11661765-includeCORE Whirlpool Electronic Control+Core
13	WP90767 Whirlpool Screw
14	W10854240 Whirlpool Laundry Center Dryer Timer
15	3389453 Whirlpool Hinge Assembly
16	WP9740848 Whirlpool Dishwasher Screw
17	W11590579 Whirlpool Screw
