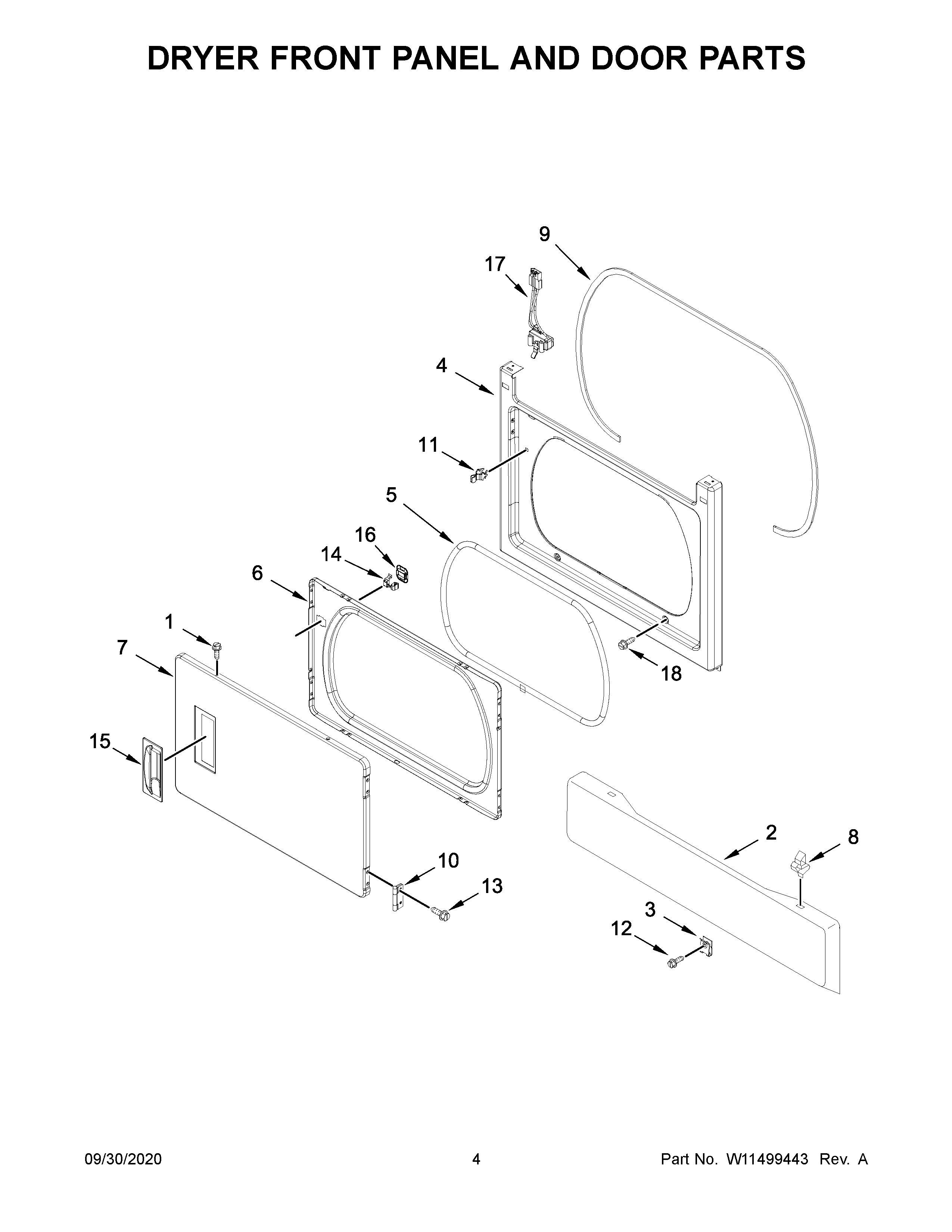

7MWGT4027HW1 03 – DRYER FRONT PANEL AND DOOR PARTS

7MWGT4027HW1 03 – DRYER FRONT PANEL AND DOOR PARTS

Written by

in

7MWGT4027HW1 03 – DRYER FRONT PANEL AND DOOR PARTS

Products

PositionProduct
1WP488627 Whirlpool Refrigerator Screw
23388958 Whirlpool Panel
3WP98234 Whirlpool Nut
4W11085935 Whirlpool Panel Assembly
5W10823582 Whirlpool Door Seal
6W10907639 Whirlpool Transition Duct
7W11663440 Whirlpool Door
8WP3388229 Whirlpool Dryer Spring Clip
9WP3387242 Whirlpool Seal
10WPW10279703 Whirlpool Hinge Assembly
11STRIKE
12WP3395530 Whirlpool Screw
14W11429587 Whirlpool Catch Assembly
15W10877261 Whirlpool Handle Assembly
16WPW10529197 Whirlpool Catch Assembly
17W11189162 Whirlpool Door Switch
18WP308685 Whirlpool Microwave Screw
