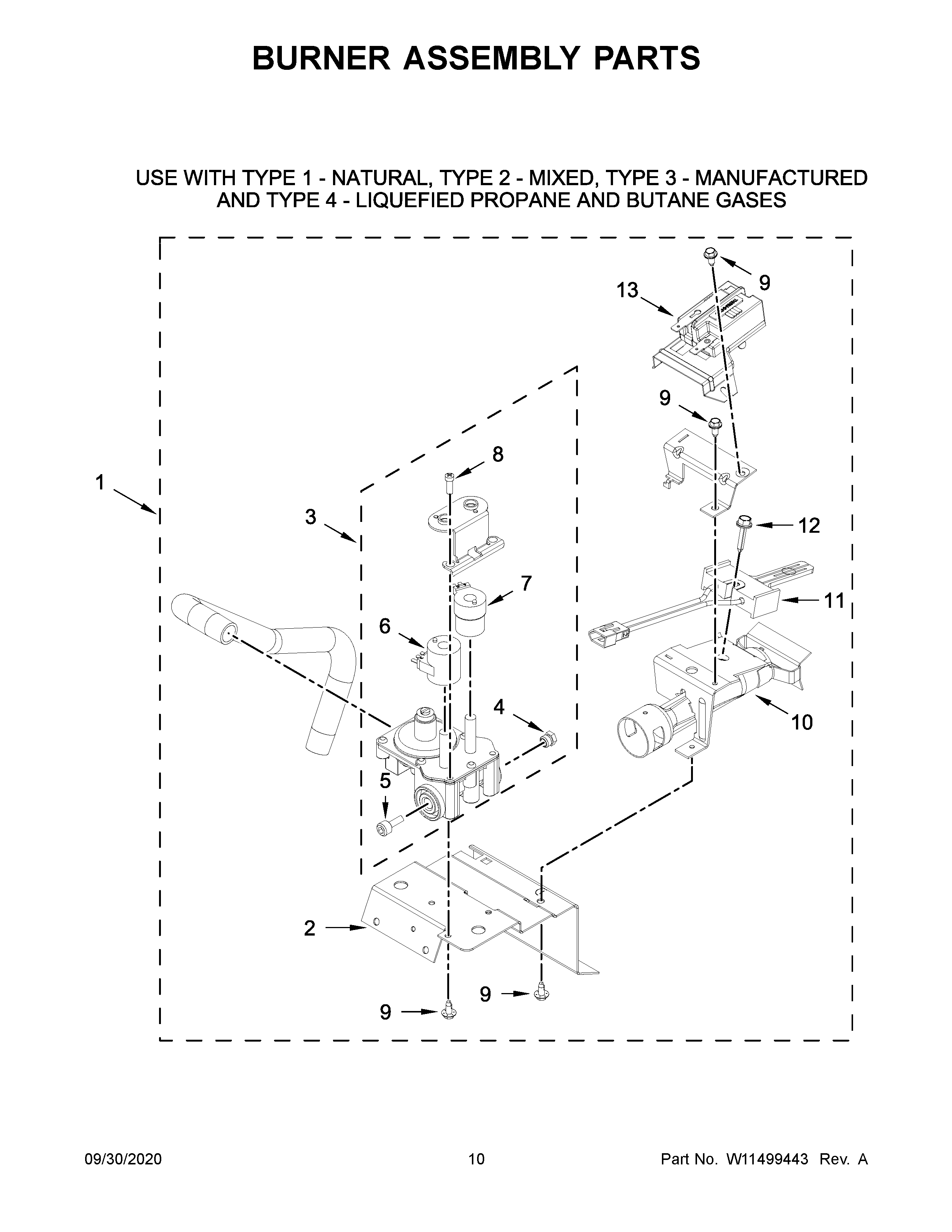

7MWGT4027HW1 06 – BURNER ASSEMBLY PARTS

Products

Position	Product
NI	3392235A Whirlpool Gas Conversion Kit
NI	CABINET (NOT A SERVICEABLE PART)
1	BURNER ASSEMBLY (COMPLETE)(60 HZ.)
2	3391699 Whirlpool Base
3	279889 Whirlpool Valve Assembly
4B	WP3392234 Whirlpool Gas Orifice
4	ORIFICE, NATURAL GAS
4A	ORIFICE, BURNER (TYPE 4 (BUTANE))
5	W10295523 Whirlpool Plug
6	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
8	694421 Whirlpool Screw Assembly
9	WP693995 Whirlpool Screw
10	8578392 Whirlpool Burner
11	279311 Whirlpool Dryer Flat Igniter with Bracket
12	WPW10366705 Whirlpool Screw
13	WP338906 Whirlpool Dryer Gas Sensor
