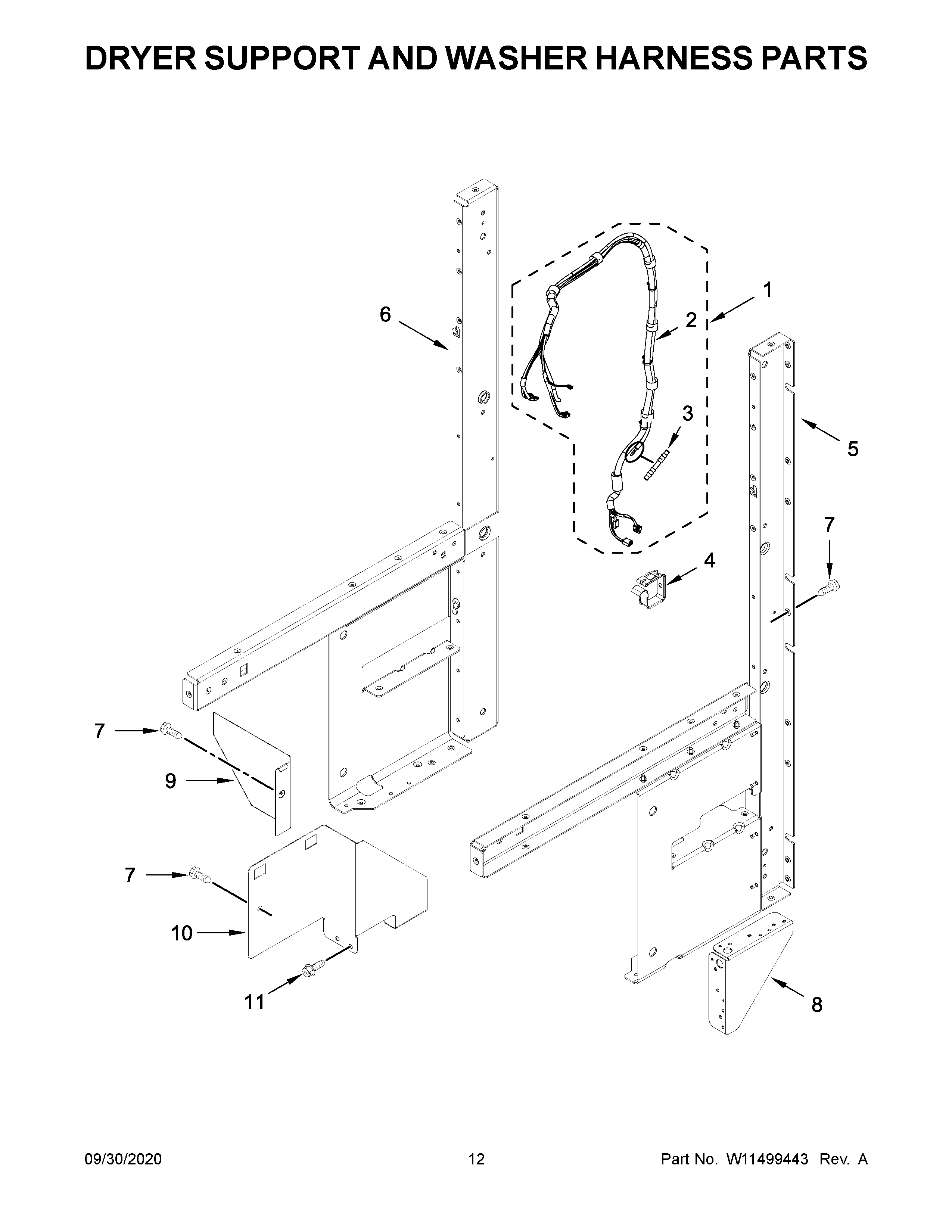

7MWGT4027HW1 07 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

PositionProduct
1W11662155 Whirlpool Wire Harness
2W11230133 Whirlpool Hose Assembly
3COUPLING, PRESSURE HOSE
4W10210799 Whirlpool Clip
5W11026515 Whirlpool Bracket
6W11026516 Whirlpool Bracket Assembly
7SCREW
8W11561937 Whirlpool Bracket
9SHIELD, THERMOSTAT
10W11108667 Whirlpool Shield
11WP308685 Whirlpool Microwave Screw
