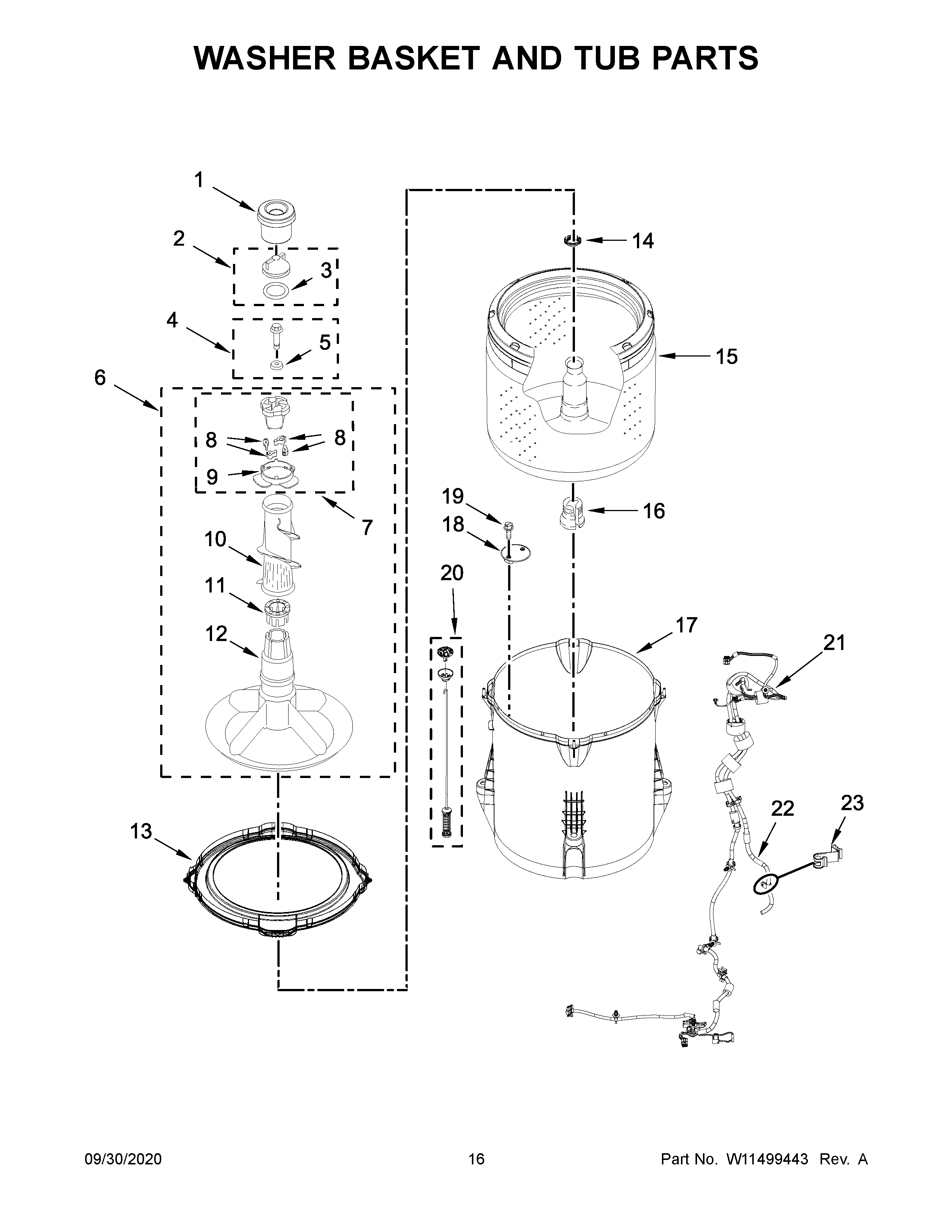

7MWGT4027HW1 09 – WASHER BASKET AND TUB PARTS

Products

PositionProduct
18575076A Whirlpool Fabric Softener Dispenser
2WPW10074580 Whirlpool Agitator Inner Cap and Seal
3WPW10072840 Whirlpool Seal Assembly
4W10772621 Whirlpool Washplate Screw
5WP3949550 Whirlpool Gasket Assembly
6285565 Whirlpool Agitator Assembly
7285809 Whirlpool Washer Agitator Cam Kit
880040 Whirlpool Washer Agitator Dog Kit
9WP3952374 Whirlpool Bearing
10WP3363003 Whirlpool Agitator Mover
11WP3951608 Whirlpool Washer Agitator Thrust Spacer
12AGITATOR
13WPW10531289 Whirlpool Tub Ring
14WP21366 Whirlpool Spanner Nut
15W10554251 Whirlpool Basket
16WP389140 Whirlpool Drive Block or Bell
17W10371566 Whirlpool Outer Tub
18WPW10215093 Whirlpool Filter
19WP8533928 Whirlpool Refrigerator Screw
20W10780045 Whirlpool Suspension Rod
21W11417071 Whirlpool Wire Harness
22W11230132 Whirlpool Hose Assembly
23CLIP
