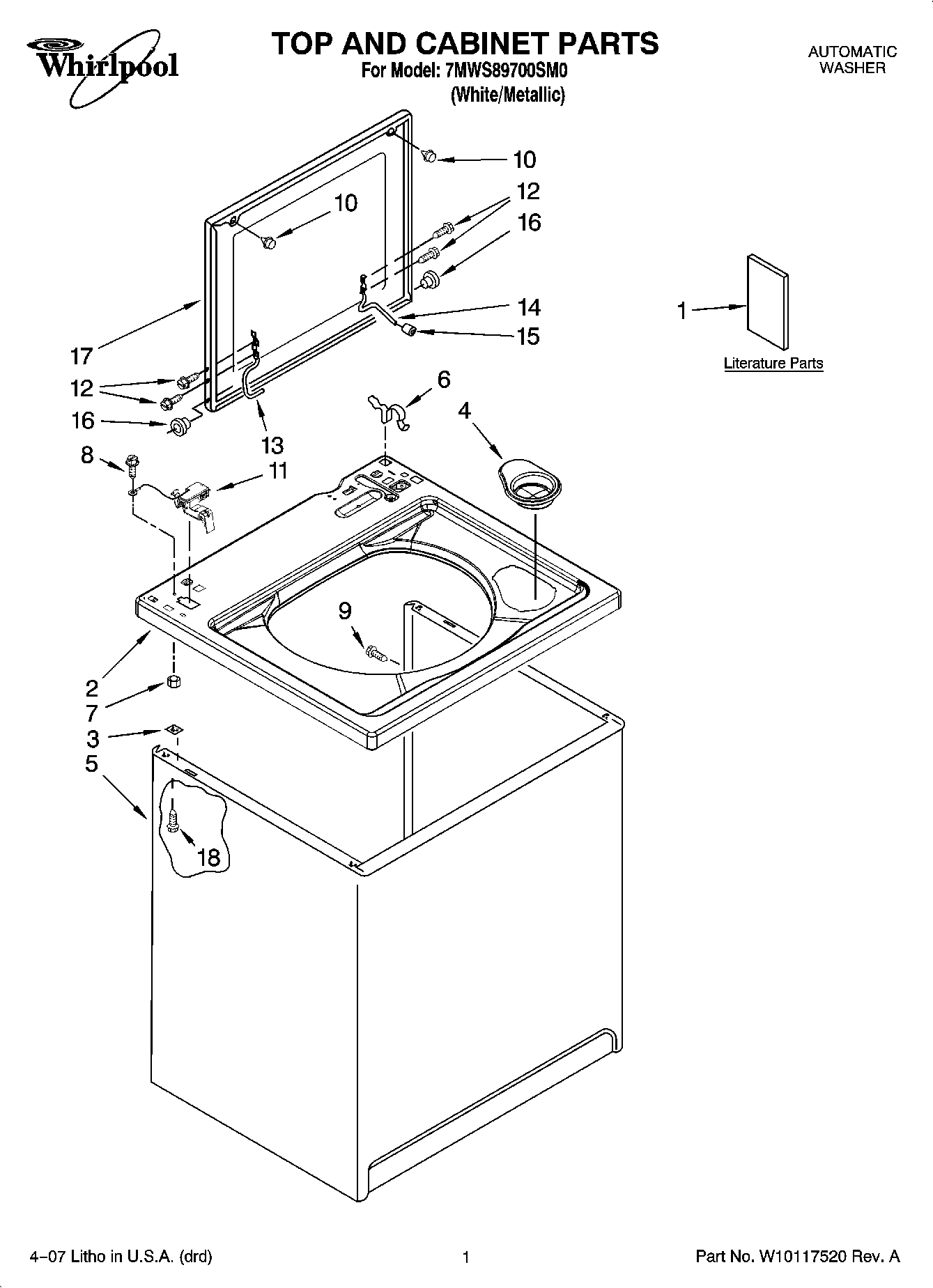

7MWS89700SM0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Feature Sheet
1Use & Care Guide
1Installation Instructions
1Wiring Diagram
2Top (White)
3WP62750 Whirlpool Spacer
4Dispenser, Bleach
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7W10080180 Whirlpool Nut
8WP3351614 Whirlpool Screw
9WP308685 Whirlpool Microwave Screw
10WP9724509 Whirlpool Bumper
11WP8318084 Whirlpool Washer Lid Switch Assembly
12SCREW
13Hinge, Lid (L.H.)
14WP54583 Whirlpool Hinge
15Bumper, Lid Hinge
16Bearing, Lid Hinge (2)
17Lid (White)
18WP3390631 Whirlpool Screw
