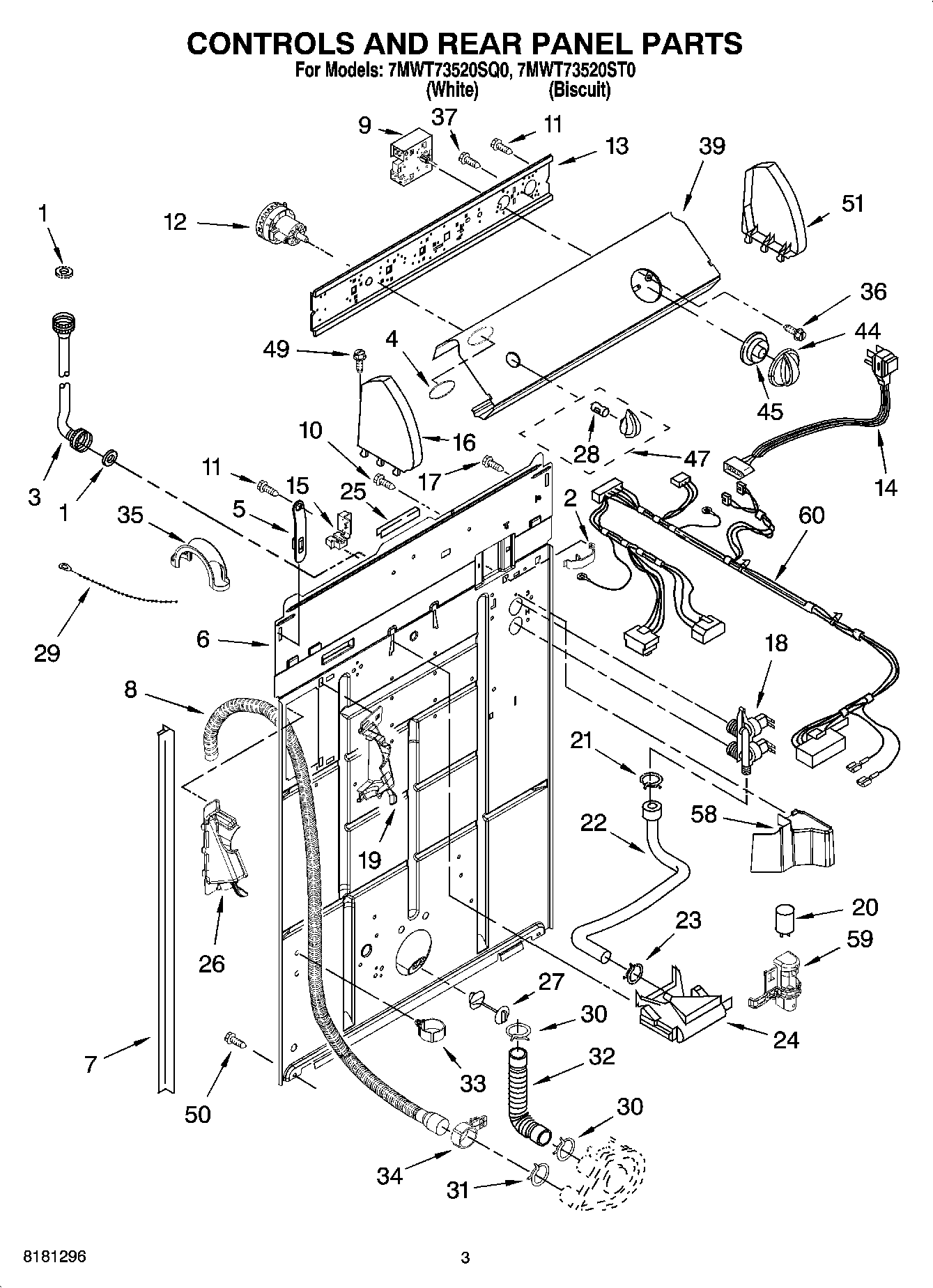

7MWT73520ST0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	Clip, Harness
3	WP89503 Whirlpool Washer Fill Hose
4	WPL 3400985
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP8542377 Whirlpool Timer
10	WP9740848 Whirlpool Dishwasher Screw
11	WP90767 Whirlpool Screw
12	SWITCH-WL
13	Bracket, Control
14	WP8559419 Whirlpool Power Cord
15	Strain Relief, Power Cord
16	Cap, End (L.H.) (Biscuit)
16	W10820038 Whirlpool Endcap
17	WP3351614 Whirlpool Screw
18	WP8541697 Whirlpool Valve
20	CAPACITOR
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	Edge Protector
26	WPW10096921 Whirlpool Hose
27	WP8519200 Whirlpool Support Assembly
28	WP8536939 Whirlpool Spring Clip
29	WPW10339879 Whirlpool Wire Tie
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clamp, Hose
34	8541668 Whirlpool Washer Clamp
35	WP8577378 Whirlpool Retainer
36	WP3400818 Whirlpool Screw
37	3400073 Whirlpool Screw
39	Panel, Console (Includes Item 4) (White)
39	Panel, Console (Includes Item 4) (Biscuit)
44	W10034740 Whirlpool Knob Assembly
44	Knob, Timer
45	WP8566018 Whirlpool Dial Assembly
47	Knob, Control (B
47	Knob, Control
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	Cap, End (R.H.) (Biscuit)
58	Sh
59	Clip, Capacitor
60	WPL 3956737
