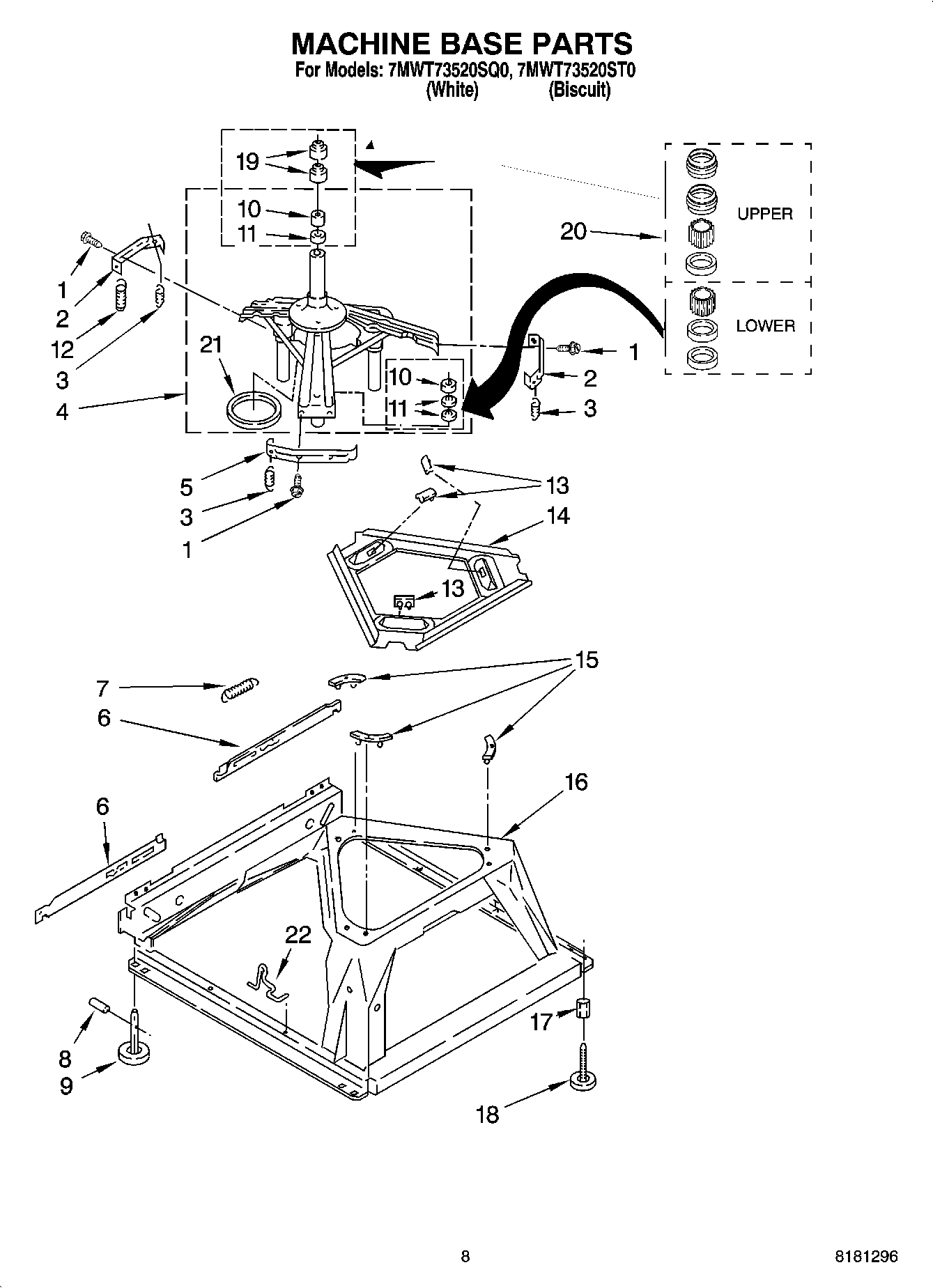

7MWT73520ST0 05 – MACHINE BASE PARTS

Products

Position	Product
1	W10846509 Whirlpool Screw
2	WP64067 Whirlpool Bracket
3	WP63907 Whirlpool Washer Suspension Spring
4	Support & Brake, Tub
5	Bracket, Spring Outer (L.F.)
6	Link, Leveling Mechanism (2)
7	8316845 Whirlpool Washer Spring
8	WP62837 Whirlpool Dowel Pin
9	285244 Whirlpool Leveling Feet
10	WP8546455 Whirlpool Bearing
11	W11095997 Whirlpool Seal
12	WPW10250667 Whirlpool Washer Suspension Spring
13	285219 Whirlpool Washer Suspension Plate Friction Pads 3 Pack
14	WP3946509 Whirlpool Skate Plate
15	285744 Whirlpool Washer Tub Suspension Rod Kit Pad 3 Pack
16	285459 Whirlpool Washer Base
17	WP3359452 Whirlpool Nut
18	WPW10001130 Whirlpool Leveling Leg
19	WP8577376 Whirlpool Seal
20	285203 Whirlpool CP Bearing
21	WP63134 Whirlpool Ring
22	WPW10145155 Whirlpool Retainer
