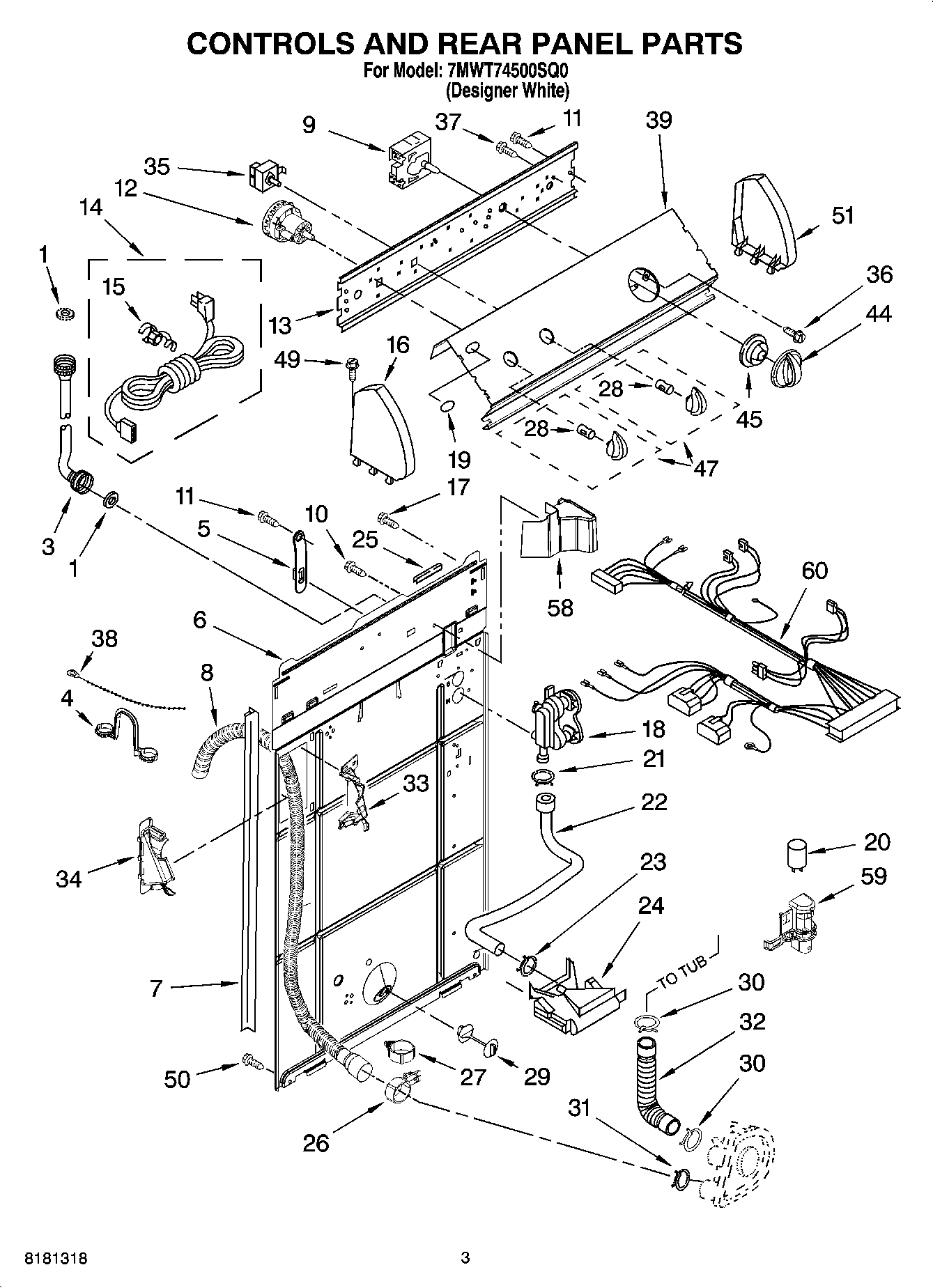

7MWT74500SQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
3	WP89503 Whirlpool Washer Fill Hose
3	FILL HOSE 5' W/WASHER
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP3953146 Whirlpool Timer
10	WP9740848 Whirlpool Dishwasher Screw
11	WP90767 Whirlpool Screw
12	SWITCH-WL
13	Bracket, Control
14	WP8559419 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	WP3351614 Whirlpool Screw
18	285805 Whirlpool Washer Water Inlet Valve
19	WPL 3400985
20	CAPACITOR
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	Edge Protector
26	8541668 Whirlpool Washer Clamp
27	Clamp, Hose
28	WP8536939 Whirlpool Spring Clip
29	WP8519200 Whirlpool Support Assembly
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
34	WPW10096921 Whirlpool Hose
35	WPW10168256 Whirlpool Temperature Switch
36	WP3400818 Whirlpool Screw
37	3400073 Whirlpool Screw
38	WPW10339879 Whirlpool Wire Tie
39	Panel, Console
44	Knob, Timer
45	WP8566018 Whirlpool Dial Assembly
47	Knob, Control
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	W10820038 Whirlpool Endcap
58	Sh
59	Clip, Capacitor
60	Harness, Wiring (For Detail See Pages 9 & 10)
