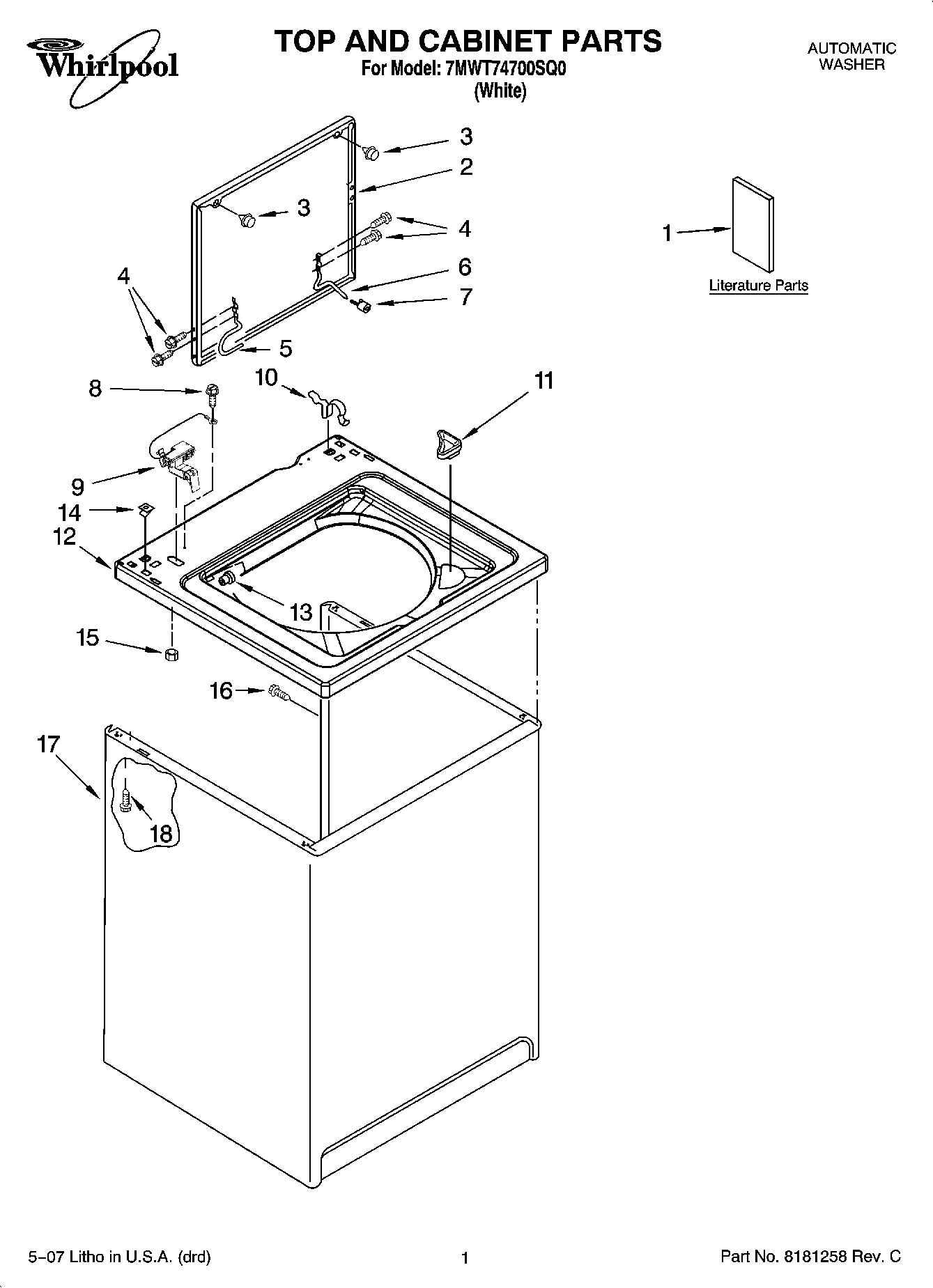

7MWT74700SQ0 01 – TOP AND CABINET PARTS

7MWT74700SQ0 01 – TOP AND CABINET PARTS

Written by

in

7MWT74700SQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Energy Guide
1Use & Care Guide
1Installation Instructions
1Wiring Diagram
1Feature Sheet
2WPW10193857 Whirlpool Lid Assembly
3WP9724509 Whirlpool Bumper
4SCREW
58318088 Whirlpool Hinge Assembly
6WP54583 Whirlpool Hinge
7Bumper, Lid Hinge
8WP3351614 Whirlpool Screw
9WP8318084 Whirlpool Washer Lid Switch Assembly
10WP62780 Whirlpool Cabinet Clip
11WP3362952 Whirlpool Bezel
12Top
13WP21258 Whirlpool Washer Lid Hinge Bearing
14WP357213 Whirlpool Hinge Stopper
15W10080180 Whirlpool Nut
16WP308685 Whirlpool Microwave Screw
17Cabinet (White)
18WP3390631 Whirlpool Screw
