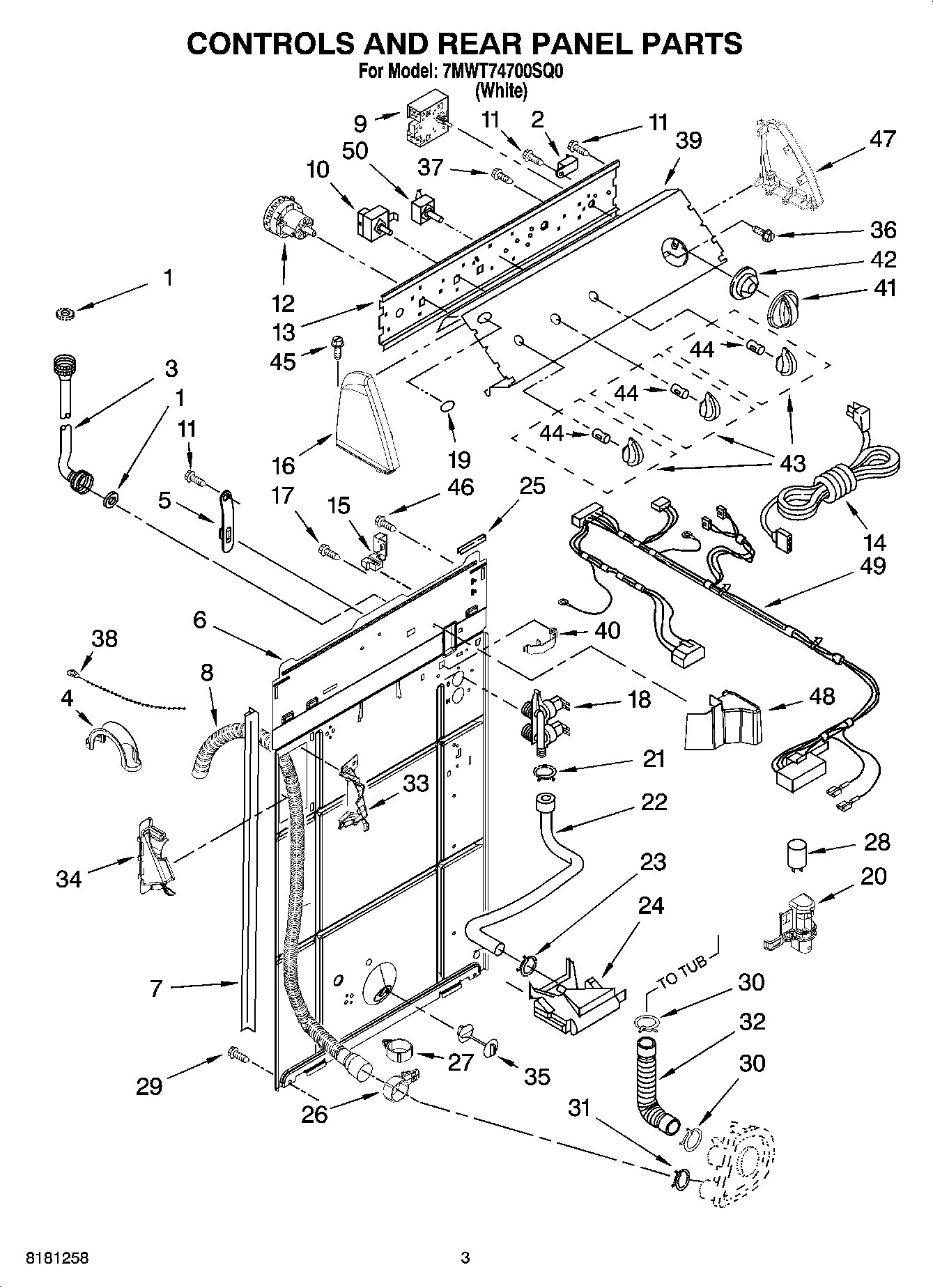

7MWT74700SQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP694419 Whirlpool Buzzer Adjuster
3	FILL HOSE 5' W/WASHER
3	WP89503 Whirlpool Washer Fill Hose
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP3953321 Whirlpool Timer
10	Switch, Water Temperature
11	WP90767 Whirlpool Screw
12	SWITCH-WL
13	Bracket, Control
14	WP8559419 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	WP9740848 Whirlpool Dishwasher Screw
18	285805 Whirlpool Washer Water Inlet Valve
19	WPL 3400985
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	Edge Protector
26	8541668 Whirlpool Washer Clamp
27	Clamp, Hose
28	CAPACITOR
29	WP3390631 Whirlpool Screw
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
34	WPW10096921 Whirlpool Hose
35	WP8519200 Whirlpool Support Assembly
36	WP3400818 Whirlpool Screw
37	3400073 Whirlpool Screw
38	WPW10339879 Whirlpool Wire Tie
39	Panel, Console (Includes Item 19)
40	Clip, Harness
41	Knob, Timer
42	WP8566018 Whirlpool Dial Assembly
43	Knob, Control
44	WP8536939 Whirlpool Spring Clip
45	WP388326 Whirlpool Screw
46	WP3351614 Whirlpool Screw
47	W10820038 Whirlpool Endcap
48	Sh
49	Harness, Wiring (For Detail See Pages 9 & 10)
50	WPW10168257 Whirlpool Cycle Switch
