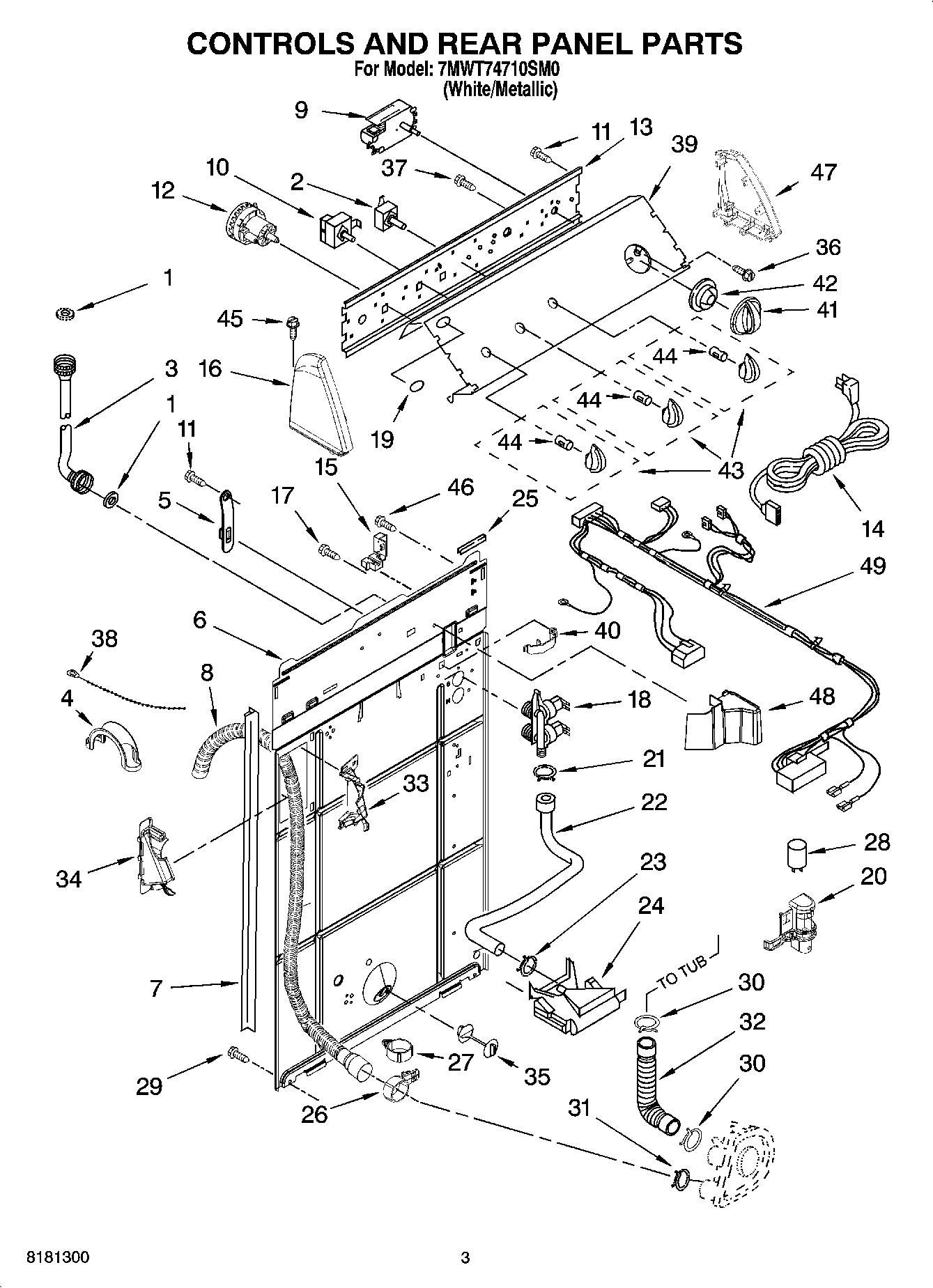

7MWT74710SM0 02 – CONTROLS AND REAR PANEL PARTS

7MWT74710SM0 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

7MWT74710SM0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2W10851055 Whirlpool Cycle Switch
3WP89503 Whirlpool Washer Fill Hose
3FILL HOSE 5' W/WASHER
4WP8577378 Whirlpool Retainer
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP3949208 Whirlpool Timer
10WPW10168256 Whirlpool Temperature Switch
11WP90767 Whirlpool Screw
12W10337780 Whirlpool Pressure Switch
13Bracket, Control
14WP8559419 Whirlpool Power Cord
15Strain Relief, Power Cord
17WP9740848 Whirlpool Dishwasher Screw
18285805 Whirlpool Washer Water Inlet Valve
19WPL 3400985
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25Edge Protector
268541668 Whirlpool Washer Clamp
27Clamp, Hose
28CAPACITOR
29WP3390631 Whirlpool Screw
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
34WPW10096921 Whirlpool Hose
35WP8519200 Whirlpool Support Assembly
36WP3400818 Whirlpool Screw
373400073 Whirlpool Screw
38WPW10339879 Whirlpool Wire Tie
39Panel, Console (Includes Item 19)
40Clip, Harness
41Knob, Timer
42WP8566018 Whirlpool Dial Assembly
43Knob, Control
44WP8536939 Whirlpool Spring Clip
45WP388326 Whirlpool Screw
46WP3351614 Whirlpool Screw
47W10820038 Whirlpool Endcap
48Sh
49Harness, Wiring (For Detail See Pages 9 & 10)
