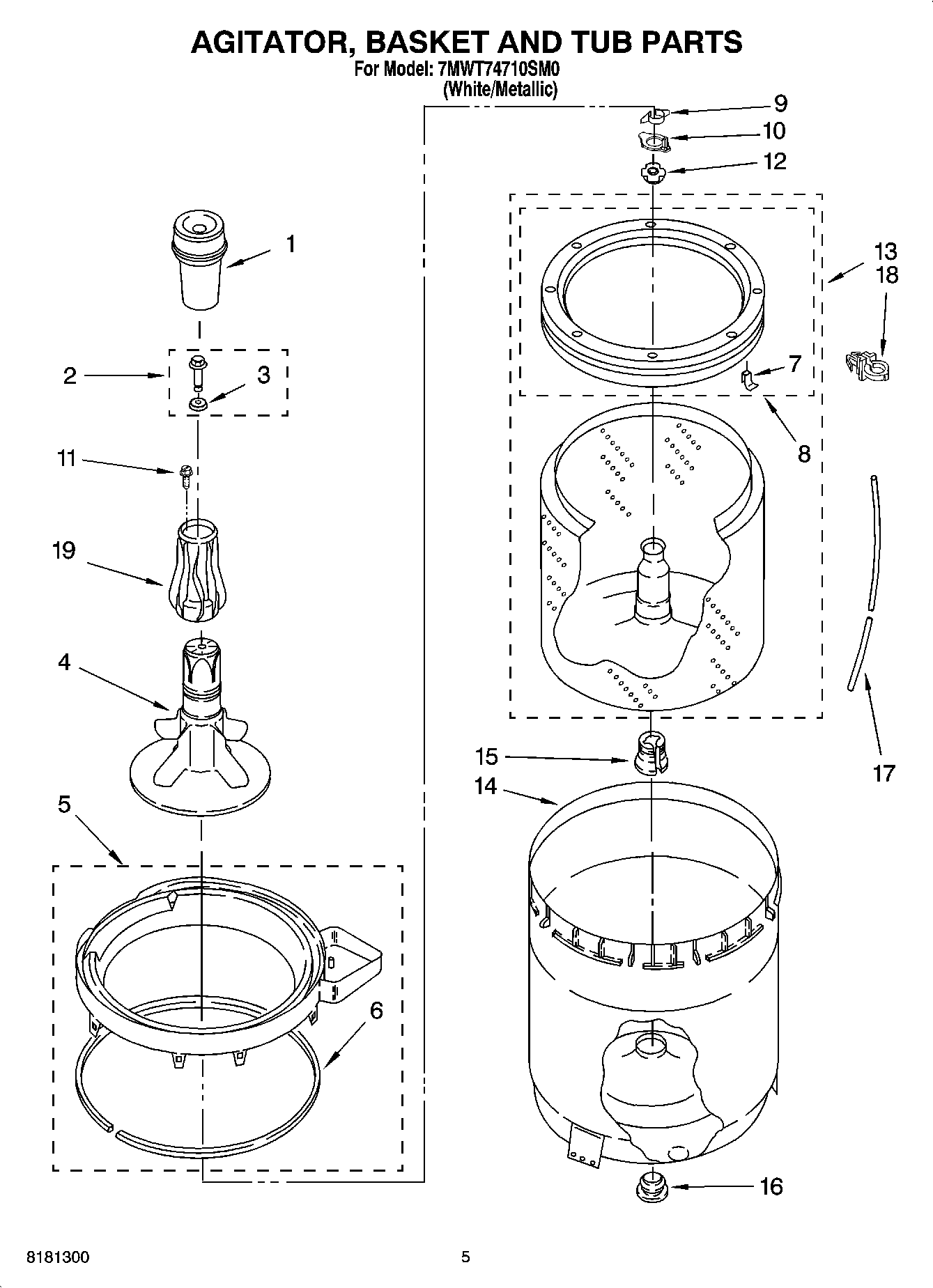

7MWT74710SM0 03 – AGITATOR, BASKET AND TUB PARTS

7MWT74710SM0 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

7MWT74710SM0 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
163580 Whirlpool Washer Fabric Softener Dispenser
2WP358237 Whirlpool Agitator Bolt
3WP3949550 Whirlpool Gasket Assembly
4Agitator
5Tub Ring & Gasket Assembly
6WP3359586 Whirlpool Tub Seal
7WP8519815 Whirlpool Washer Balance Ring Clip
8WP3956205 Whirlpool Balance Ring
9WP3354845 Whirlpool Clip
10WP8543666 Whirlpool Washer
11WPW10109200 Whirlpool Screw
12WP21366 Whirlpool Spanner Nut
13Basket & Balance Ring
14Tub
15WP389140 Whirlpool Drive Block or Bell
16W10814296 Whirlpool Washer Center Post Seal Gasket
17WP353244 Whirlpool Hose
182219077 Whirlpool Refrigerator Clip
19Filter, Manual
