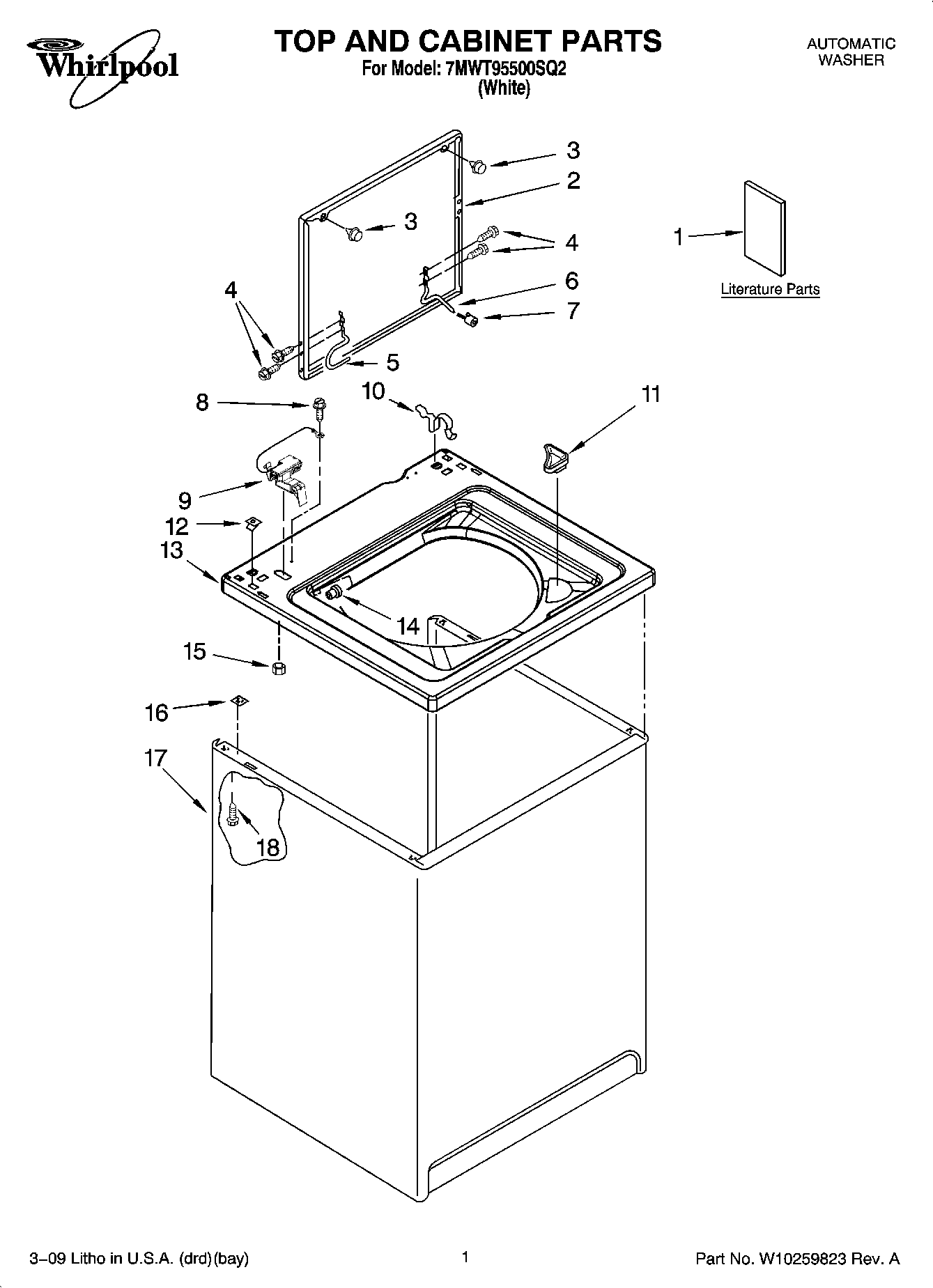

7MWT95500SQ2 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Energy Guide (Mexico)
1	Feature Sheet
1	Wiring Diagram
1	Use & Care Guide
1	Installation Instructions
2	WPW10193857 Whirlpool Lid Assembly
3	WP9724509 Whirlpool Bumper
4	SCREW
5	Hinge, Lid (L.H.)
6	WP54583 Whirlpool Hinge
7	Bumper, Lid Hinge
8	WP3351614 Whirlpool Screw
9	WP8318084 Whirlpool Washer Lid Switch Assembly
10	WP62780 Whirlpool Cabinet Clip
11	WP3362952 Whirlpool Bezel
12	WP357213 Whirlpool Hinge Stopper
13	Top (White)
14	WP21258 Whirlpool Washer Lid Hinge Bearing
15	W10080180 Whirlpool Nut
16	WP62750 Whirlpool Spacer
17	63424 Whirlpool Cabinet Assembly
18	W10165554 Whirlpool Screw
