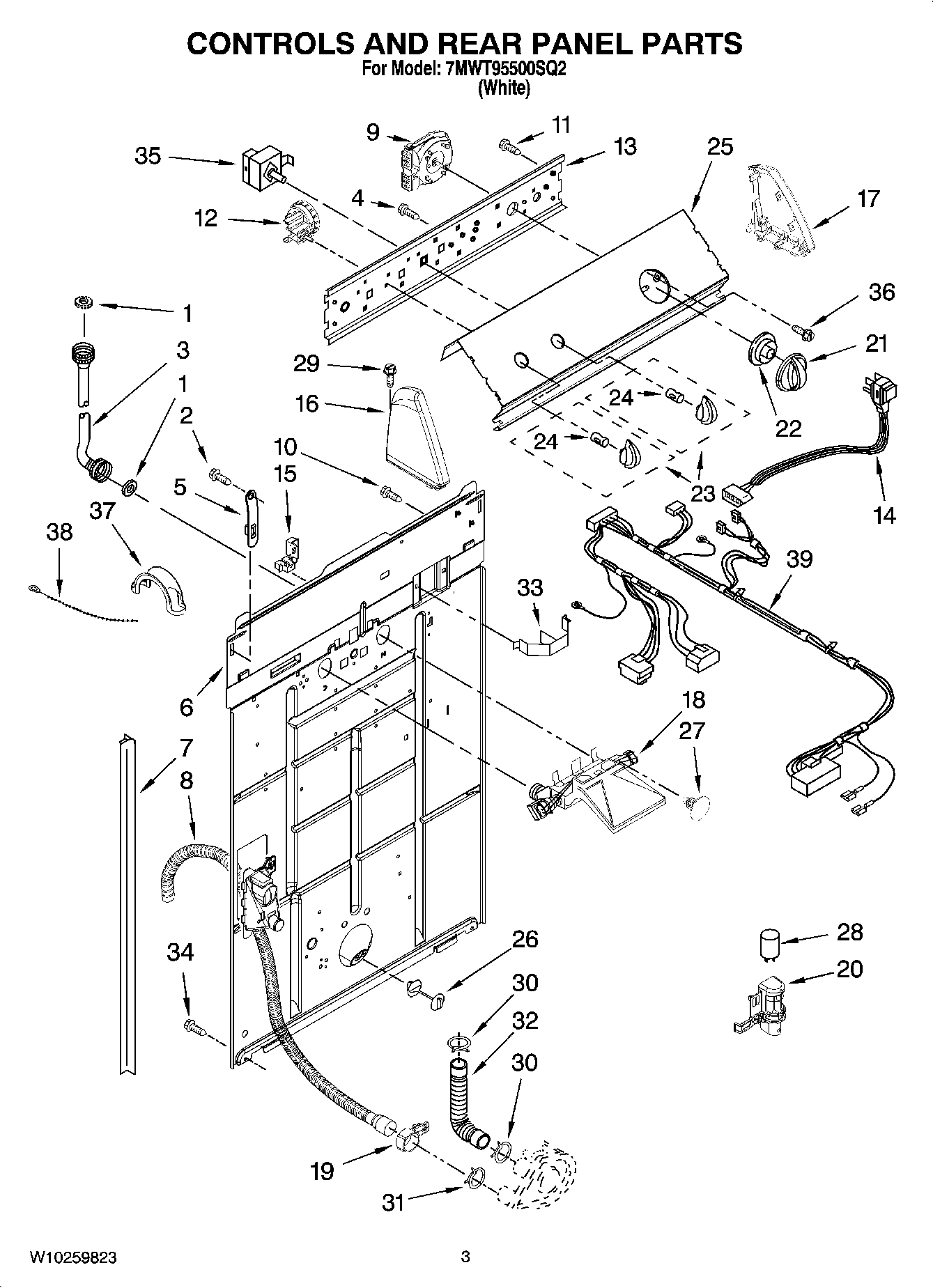

7MWT95500SQ2 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP9740848 Whirlpool Dishwasher Screw
3	WP89503 Whirlpool Washer Fill Hose
4	3400073 Whirlpool Screw
5	WP8568314 Whirlpool Strap
6	WPW10194450 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	WPW10189267 Whirlpool Drain Hose
9	WPW10199989 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339334 Whirlpool Washer Water Level Control Switch
13	WP3948608 Whirlpool Bracket
14	Cord, Power (Includes Item 15)
15	Strain Relief, Power Cord
17	W10820038 Whirlpool Endcap
18	BREAK, VACUUM
19	8541668 Whirlpool Washer Clamp
20	Clip, Capacitor
21	Knob, Timer
22	WP8566018 Whirlpool Dial Assembly
23	Knob, Control
24	WP8536939 Whirlpool Spring Clip
25	Panel, Console
26	WP8519200 Whirlpool Support Assembly
27	Clip, Push-In Retainer
28	CAPACITOR
29	WP388326 Whirlpool Screw
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
34	WP3390631 Whirlpool Screw
35	WPW10168256 Whirlpool Temperature Switch
36	WP3400818 Whirlpool Screw
37	WP8577378 Whirlpool Retainer
38	WPW10339879 Whirlpool Wire Tie
39	HARNESS, WIRING
