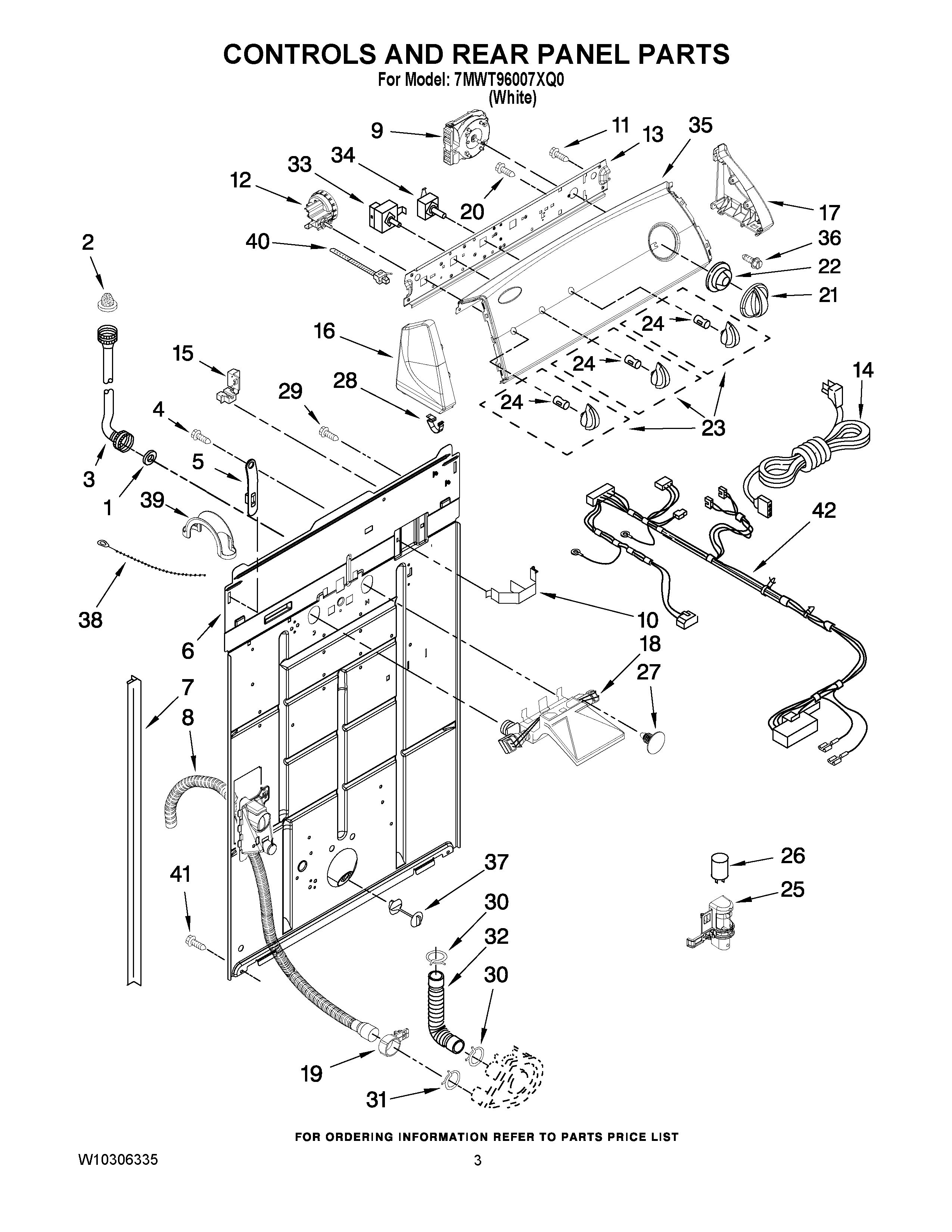

7MWT96007XQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	285452A Whirlpool Hose Seal and Screen
3	WP89503 Whirlpool Washer Fill Hose
4	WP9740848 Whirlpool Dishwasher Screw
5	WP8568314 Whirlpool Strap
6	WPW10194450 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	WPW10189267 Whirlpool Drain Hose
9	WPW10185786 Whirlpool Timer
10	Clip, Harness & Pressure Hose
11	WP90767 Whirlpool Screw
12	WPW10231403 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	Cord, Power (Includes Item 15)
15	Strain Relief, Power Cord
16	WP8565957 Whirlpool Endcap Assembly
17	WP8565954 Whirlpool Endcap
18	BREAK, VACUUM
19	8541668 Whirlpool Washer Clamp
20	3400073 Whirlpool Screw
21	Knob, Timer
22	WP8566018 Whirlpool Dial Assembly
23	Knob, Control
24	WP8536939 Whirlpool Spring Clip
25	Clip, Capacitor
26	CAPACITOR
27	Clip, Push-In Retainer
28	WP8312709 Whirlpool Endcap Clip
29	WP3351614 Whirlpool Screw
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	WPW10168256 Whirlpool Temperature Switch
34	WPW10168257 Whirlpool Cycle Switch
35	PANEL, CONSOLE
36	WP3400818 Whirlpool Screw
37	WP8519200 Whirlpool Support Assembly
38	WPW10339879 Whirlpool Wire Tie
39	WP8577378 Whirlpool Retainer
40	CABLE TIE
41	WP3390631 Whirlpool Screw
42	HARNESS, WIRING
